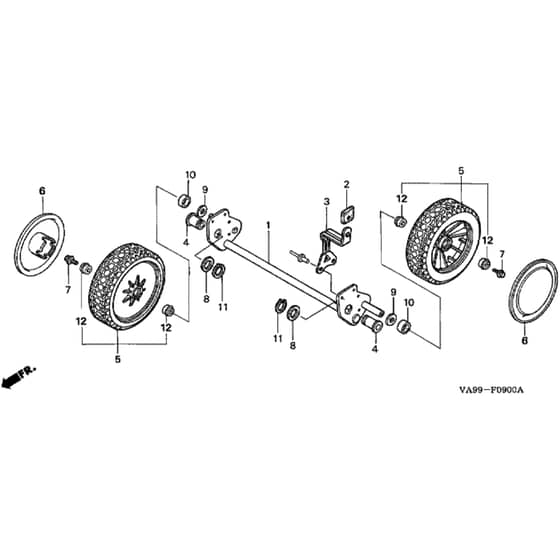

Honda HRB423K1 - PDE - MZBC 8100001- Rear Wheel Diagram

Honda HRB423K1 - PDE - MZBC 8100001- Rear Wheel Diagram
Honda HRB423K1 - PDE - MZBC 8100001- Rear Wheel Diagram

Description

Honda HRB423K1 - PDE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Axle Shaft
Axle Shaft
HP42310-VA9-B50 Out of stock
Axle Shaft
£64.24 £53.53

  2 Adjuster Grip
Adjuster Grip
HP42952-VA4-000 In stock
Adjuster Grip
£1.52 £1.27

  3 Rear Adjuster Plate
Rear Adjuster Plate
HP42961-VA9-B50 Out of stock
Rear Adjuster Plate
£18.91 £15.76

  4 Collar
Collar
HP44312-VA9-K40 Out of stock
Collar
£18.38 £15.32

  5 Front Wheel
Front Wheel
HP44710-VE0-751ZB Out of stock
Front Wheel
£43.66 £36.38

  6 Hub Cap
Hub Cap
HP44719-VE0-751ZA In stock
Hub Cap
£3.88 £3.23

  7 Wheel Bolt
Wheel Bolt
HP90110-VA4-000 Out of stock
Wheel Bolt
£4.97 £4.14

  8 Thrust Washer
Thrust Washer
HP90453-KA3-710 Out of stock
Thrust Washer
£2.48 £2.07

  9 Wheel Washer
Wheel Washer
HP90455-VA2-000 In stock
Wheel Washer
£3.18 £2.65

  10 Wheel Collar
Wheel Collar
HP91556-VE0-751 Out of stock
Wheel Collar
£6.55 £5.46

  11 External Circlip 20Mm
External Circlip 20Mm
HP94510-20000 Out of stock
External Circlip 20Mm
£1.60 £1.33

  12 Bearing
Bearing
HP91051-VE0-750 In stock
Bearing
£11.40 £9.50


Description

Honda HRB423K1 - PDE Rotary Mower Parts Diagram
