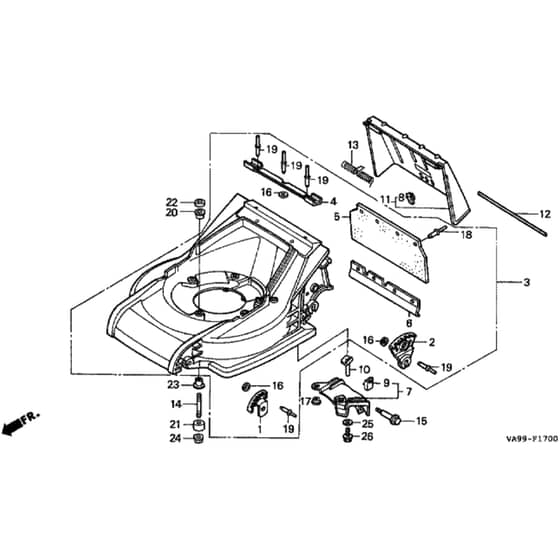

Honda HRB423K1 - PDE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Adjuster Panel
Adjuster Panel
HP42981-VA9-K41 Out of stock
Adjuster Panel
£9.60 £8.00

  2 Adjuster Panel
Adjuster Panel
HP42987-VA9-B50 Out of stock
Adjuster Panel
£23.94 £19.95

  3 Mower Housing
Mower Housing
HP76110-VA9-H50ZA Out of stock
Mower Housing
£355.92 £296.60

  4 Hinge
Hinge
HP76114-VA9-K40 Out of stock
Hinge
£29.10 £24.25

  5 Safety Shield
Safety Shield
HP76118-VA9-000 Out of stock
Safety Shield
£54.32 £45.27

  6 Shield Plate
Shield Plate
HP76119-VA9-J60 Out of stock
Shield Plate
£48.30 £40.25

  7 Guide Scroll Assy
Guide Scroll Assy
HP76120-VA9-K41ZC Out of stock
Guide Scroll Assy
£67.32 £56.10

  8 Discharge Guard Stopper
Discharge Guard Stopper
HP76122-VA4-000 Out of stock
Discharge Guard Stopper
£5.29 £4.41

  9 Plate
Plate
HP76157-VA9-K40 Out of stock
Plate
£7.02 £5.85

  10 Scroll Guide Bracket
Scroll Guide Bracket
HP76158-VA9-K40 Out of stock
Scroll Guide Bracket
£13.56 £11.30

  11 Discharge Guard Assy
Discharge Guard Assy
HP76310-VA9-K40 Out of stock
Discharge Guard Assy
£70.44 £58.70

  12 Discharge Guard Shaft
Discharge Guard Shaft
HP76312-VA9-K40 Out of stock
Discharge Guard Shaft
£13.28 £11.07

  13 Return Spring
Return Spring
HP76314-VA5-010 Out of stock
Return Spring
£16.08 £13.40

  14 Stud
Stud
HP90045-ZG1-750 Out of stock
Stud
£5.76 £4.80

  15 Special Bolt 6Mm
Special Bolt 6Mm
HP90101-VA9-K40 Out of stock
Special Bolt 6Mm
£8.75 £7.29

  16 Washer
Washer
HP90483-178-000 Out of stock
Washer
£3.43 £2.86

  17 Scroll Guide Washer
Scroll Guide Washer
HP90501-VA9-K40 Out of stock
Scroll Guide Washer
£4.24 £3.53

  18 Rivet 4.8 X 14
Rivet 4.8 X 14
HP90851-VA9-K41 Out of stock
Rivet 4.8 X 14
£4.78 £3.98

  19 Rivet 4.8 X 17.2
Rivet 4.8 X 17.2
HP90852-VA9-K41 Out of stock
Rivet 4.8 X 17.2
£1.43 £1.19

  20 Adiabatic Collar
Adiabatic Collar
HP91551-VA9-B50 Out of stock
Adiabatic Collar
£2.36 £1.97

  22 Spacer
Spacer
HP91553-VA9-P00 Out of stock
Spacer
£4.73 £3.94

  23 Engine Bed Collar
Engine Bed Collar
HP91901-VA9-010 Out of stock
Engine Bed Collar
£8.87 £7.39

  24 Flange Nut 6Mm
Flange Nut 6Mm
HP94050-06000 In stock
Flange Nut 6Mm
£4.01 £3.34

  25 Plain Washer 6Mm
Plain Washer 6Mm
HP94103-06800 Out of stock
Plain Washer 6Mm
£1.09 £0.91

  26 Flange Bolt 6 X 12
Flange Bolt 6 X 12
HP95701-0601208 Out of stock
Flange Bolt 6 X 12
£1.50 £1.25
