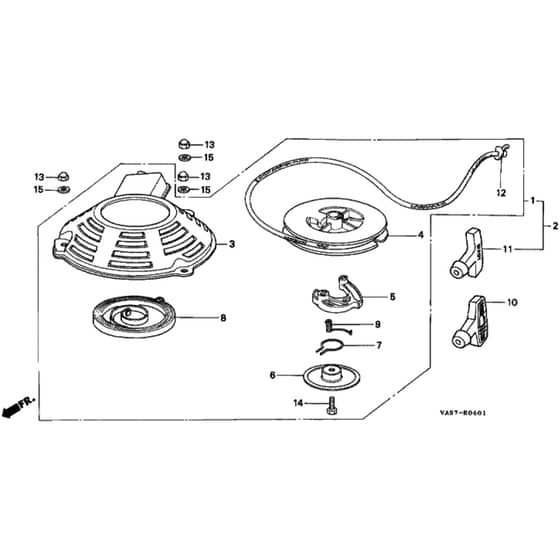

Honda HRB423 - SDT - MZBC 8000001-8099999 Recoil Starter Diagram

Description

Honda HRB423 - SDT Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28400-ZG1-T12ZC Out of stock	Starter Recoil Assy	£138.84 £115.70
3	HP28410-ZG1-702ZD Out of stock	Recoil Starter Case	£88.32 £73.60
3	HP28410-ZG1-702ZC Out of stock	Housing	£103.96 £86.63
4	HP28420-ZG1-702 In stock	Recoil Pulley	£29.96 £24.97
5	HP28422-896-010 In stock	Starter Pawl	£13.84 £11.53
6	HP28431-896-000 Out of stock	Friction Plate	£8.86 £7.38
7	HP28441-896-000 Out of stock	Friction Spring	£5.94 £4.95
8	HP28442-ZE6-003 In stock	Recoil Spring	£30.61 £25.51
9	HP28443-896-000 Out of stock	Return Spring	£5.94 £4.95
10	HP28461-ZE7-T01 Out of stock	Recoil Starter Handle	£7.02 £5.85
12	HP28462-ZG1-T12 Out of stock	Recoil Starter Rope	£14.52 £12.10
13	HP94050-05000 Out of stock	Flange Nut 5Mm	£3.61 £3.01
14	HP92101-060120H In stock	Bolt	£1.34 £1.12
15	HP94103-05000 Out of stock	Plain Washer 5Mm	£1.09 £0.91
