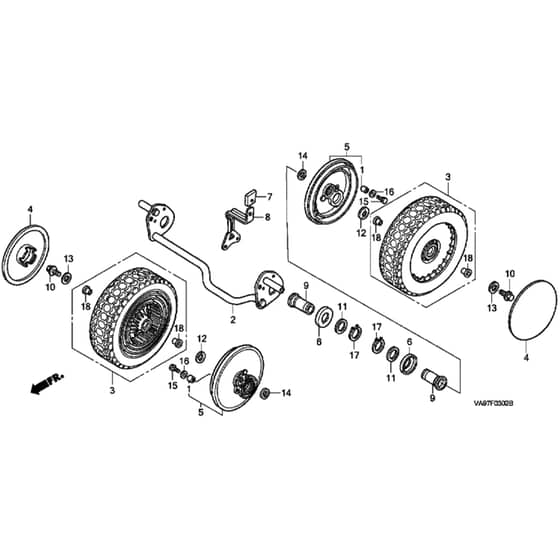

Honda HRB423 - SDT - MZBC 8000001-8099999 Rear Wheel Diagram

Name: Honda HRB423 - SDT - MZBC 8000001-8099999 Rear Wheel Diagram
SKU: hrb423_sdt_mzbc_8000001_8099999_rear_wheel-group
Price: 0.48 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB423 - SDT - MZBC 8000001-8099999 Rear Wheel Diagram

Description

Honda HRB423 - SDT Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16598-ZG1-750 Out of stock	Control Collar	£3.91 £3.26
2	HP42310-VA9-D50 Out of stock	Axle Shaft	£85.42 £71.18
3	HP42710-VE0-800ZA Out of stock	Rear Wheel	£40.16 £33.47
4	HP42719-VE0-851ZA Out of stock	Hub Cap	£3.43 £2.86
5	HP42865-VE0-800ZA Out of stock	Wheel Cover	£19.31 £16.09
6	HP42868-VA9-K40 Out of stock	Wheel Cap	£1.30 £1.08
7	HP42952-VA4-000 In stock	Adjuster Grip	£1.52 £1.27
8	HP42961-VA9-B50 Out of stock	Rear Adjuster Plate	£18.91 £15.76
9	HP44312-VA9-K40 Out of stock	Collar	£18.38 £15.32
10	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
11	HP90453-KA3-710 Out of stock	Thrust Washer	£2.48 £2.07
12	HP90505-VA9-K40 Out of stock	Washer 13Mm	£1.75 £1.46
13	HP90506-VA9-K41 Out of stock	Wheel Washer	£4.14 £3.45
14	HP91556-VE0-751 Out of stock	Wheel Collar	£6.55 £5.46
15	HP92101-050120A Out of stock	Bolt	£0.58 £0.48
16	HP94101-05800 Out of stock	Plain Washer 5Mm	£1.09 £0.91
17	HP94510-20000 Out of stock	External Circlip 20Mm	£1.60 £1.33
18	HP42716-VE0-800 In stock	Wheel Bush	£3.48 £2.90
