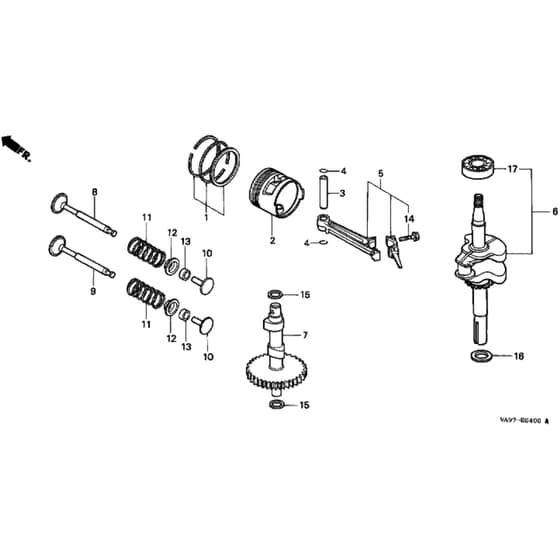

Honda HRB423 - SDT - MZBC 8000001-8099999 Piston/Crankshaft/Camshaft Diagram

Name: Honda HRB423 - SDT - MZBC 8000001-8099999 Piston/Crankshaft/Camshaft Diagram
SKU: hrb423_sdt_mzbc_8000001_8099999_piston_crankshaft_camshaft-group
Price: 1.93 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB423 - SDT - MZBC 8000001-8099999 Piston/Crankshaft/Camshaft Diagram

Description

Honda HRB423 - SDT Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP13011-ZC0-003 Out of stock	Piston Ring Set	£35.98 £29.98
1	HP13010-ZG1-U11 Out of stock	Piston Ring Set	£21.04 £17.53
1	HP13012-ZC0-003 Out of stock	Piston Ring Set	£40.08 £33.40
2	HP13103-ZC0-003 Out of stock	Piston	£44.48 £37.07
2	HP13101-ZC0-003 Out of stock	Piston Std	£47.64 £39.70
2	HP13104-ZC0-003 Out of stock	Piston	£37.46 £31.22
2	HP13102-ZC0-003 Out of stock	Piston 0.25	£42.37 £35.31
3	HP13111-892-000 Out of stock	Gudgeon Pin	£7.87 £6.56
4	HP13115-147-000 Out of stock	Gudgeon Pin Clip	£2.32 £1.93
5	HP13200-ZG0-000 Out of stock	Connecting Rod Assy	£83.88 £69.90
5	HP13200-ZG0-305 Out of stock	Connecting Rod Assy	£69.48 £57.90
6	HP13310-ZG1-751 Out of stock	Crankshaft Assy	£207.00 £172.50
7	HP14100-ZG1-U10 Out of stock	Camshaft Assy	£168.36 £140.30
8	HP14711-ZG1-U10 Out of stock	Inlet Valve	£24.61 £20.51
9	HP14721-ZG1-U10 Out of stock	Exhaust Valve	£47.33 £39.44
10	HP14732-ZA8-000 Out of stock	Valve Lifter	£16.03 £13.36
11	HP14751-896-000 Out of stock	Valve Spring	£4.72 £3.93
12	HP14771-ZG0-000 Out of stock	Valve Spring Retainer	£4.86 £4.05
13	HP14803-892-000 Out of stock	Tappet	£7.48 £6.23
13	HP14806-892-000 Out of stock	Tappet Clearance Adjuster	£6.84 £5.70
13	HP14815-892-000 Out of stock	Tappet	£7.48 £6.23
13	HP14809-892-000 Out of stock	Adjuster Tappet	£6.30 £5.25
13	HP14820-892-000 Out of stock	Tappet Clearance Adjuster	£6.84 £5.70
13	HP14818-892-000 Out of stock	Tappet	£7.48 £6.23
13	HP14812-892-000 Out of stock	Adjuster Tappet	£6.30 £5.25
13	HP14801-892-000 Out of stock	Tappet Clearance Adjuster	£6.84 £5.70
14	HP90001-ZG0-000 Out of stock	Connecting Rod Bolt	£3.94 £3.28
16	HP90454-428-000 Out of stock	Thrust Washer	£4.04 £3.37
17	HP96100-6203000 Out of stock	Bearing	£17.94 £14.95
