Honda HRB423 - PG - MZBC 8000001-8099999 Recoil Starter (2) Diagram

Name: Honda HRB423 - PG - MZBC 8000001-8099999 Recoil Starter (2) Diagram
SKU: hrb423_pg_mzbc_8000001_8099999_recoil_starter_2_-group
Price: 0.79 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

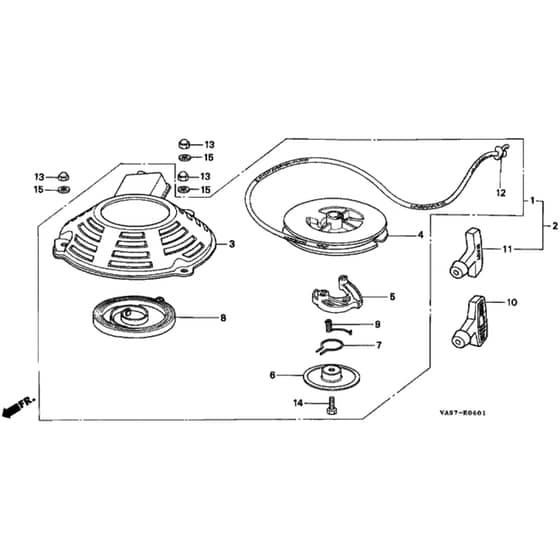

Honda HRB423 - PG - MZBC 8000001-8099999 Recoil Starter (2) Diagram

Description

Honda HRB423 - PG Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28400-ZG1-T12ZC Out of stock	Starter Recoil Assy	£138.84 £115.70
3	HP28410-ZG1-702ZD Out of stock	Recoil Starter Case	£88.32 £73.60
4	HP28420-ZG1-702 In stock	Recoil Pulley	£29.96 £24.97
5	HP28422-896-010 In stock	Starter Pawl	£13.84 £11.53
6	HP28431-896-000 Out of stock	Friction Plate	£8.86 £7.38
7	HP28441-896-000 Out of stock	Friction Spring	£5.94 £4.95
8	HP28442-ZE6-003 Out of stock	Recoil Spring	£30.61 £25.51
9	HP28443-896-000 Out of stock	Return Spring	£5.94 £4.95
10	HP28461-ZE7-T01 Out of stock	Recoil Starter Handle	£7.02 £5.85
12	HP28462-ZG1-T12 Out of stock	Recoil Starter Rope	£14.52 £12.10
13	HP90106-MB9-871 Out of stock	Flange Nut	£7.92 £6.60
14	HP92101-060120H In stock	Bolt	Was £1.34 £1.12 Special Price £0.95 £0.79
15	HP94103-05000 Out of stock	Plain Washer 5Mm	£1.09 £0.91
