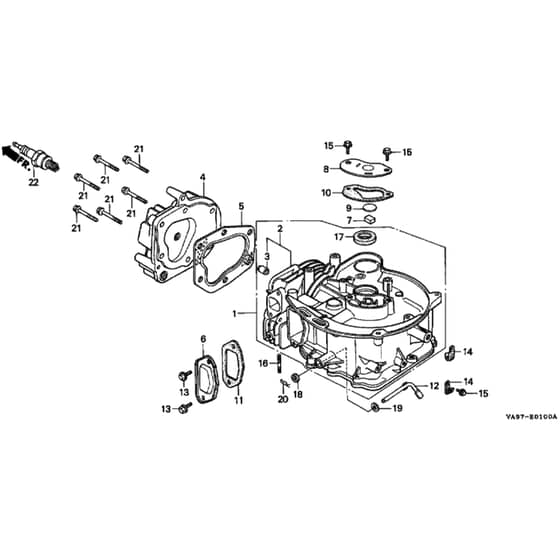

Honda HRB423 - PG - MZBC 8000001-8099999 Cylinder Barrel Diagram

Honda HRB423 - PG - MZBC 8000001-8099999 Cylinder Barrel Diagram
Honda HRB423 - PG - MZBC 8000001-8099999 Cylinder Barrel Diagram

Description

Honda HRB423 - PG Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Cylinder Assy
Cylinder Assy
HP12000-ZG1-406 Out of stock
Cylinder Assy
£386.64 £322.20

  3 Valve Guide
Valve Guide
HP12133-896-306 Out of stock
Valve Guide
£11.86 £9.88

  4 Cylinder Head
Cylinder Head
HP12221-ZG1-010 Out of stock
Cylinder Head
£58.03 £48.36

  5 Cylinder Head Gasket
Cylinder Head Gasket
HP12281-ZC0-003 Out of stock
Cylinder Head Gasket
£15.00 £12.50

  6 Tappet Cover
Tappet Cover
HP12363-ZG1-000 Out of stock
Tappet Cover
£11.74 £9.78

  7 Breather Filter
Breather Filter
HP12367-ZG1-013 Out of stock
Breather Filter
£5.66 £4.72

  8 Breather Cap
Breather Cap
HP12370-ZG1-020 Out of stock
Breather Cap
£11.18 £9.32

  9 Breather Valve
Breather Valve
HP12372-879-000 Out of stock
Breather Valve
£1.72 £1.43

  10 Breather Gasket
Breather Gasket
HP12373-ZG1-000 Out of stock
Breather Gasket
£2.11 £1.76

  11 Tappet Cover Gasket
Tappet Cover Gasket
HP12375-ZG1-000 Out of stock
Tappet Cover Gasket
£2.08 £1.73

  12 Governor Arm Shaft
Governor Arm Shaft
HP16541-896-000 Out of stock
Governor Arm Shaft
£9.76 £8.13

  13 Nut
Nut
HP90002-892-000 Out of stock
Nut
£2.92 £2.43

  15 Flange Bolt 6 X 12
Flange Bolt 6 X 12
HP90013-883-000 Out of stock
Flange Bolt 6 X 12
£4.63 £3.86

  16 Stud
Stud
HP90046-ZG0-000 Out of stock
Stud
£4.73 £3.94

  17 Oil Seal 17 X 30 X 6
Oil Seal 17 X 30 X 6
HP91202-892-004 Out of stock
Oil Seal 17 X 30 X 6
£14.32 £11.93

  18 Oil Seal
Oil Seal
HP91231-816-000 Out of stock
Oil Seal
£10.90 £9.08

  19 Plain Washer 5Mm
Plain Washer 5Mm
HP94101-05000 Out of stock
Plain Washer 5Mm
£1.09 £0.91

  20 Lock Pin 8Mm
Lock Pin 8Mm
HP94251-08000 Out of stock
Lock Pin 8Mm
£1.75 £1.46

  21 Flange Bolt
Flange Bolt
HP95801-060-3500 Out of stock
Flange Bolt
£1.84 £1.53

  22 Spark Plug
Spark Plug
HP98073-54754 Out of stock
Spark Plug
£6.43 £5.36

  22 Spark Plug
Spark Plug
HP98073-54744 Out of stock
Spark Plug
£3.42 £2.85


Description

Honda HRB423 - PG Rotary Mower Parts Diagram
