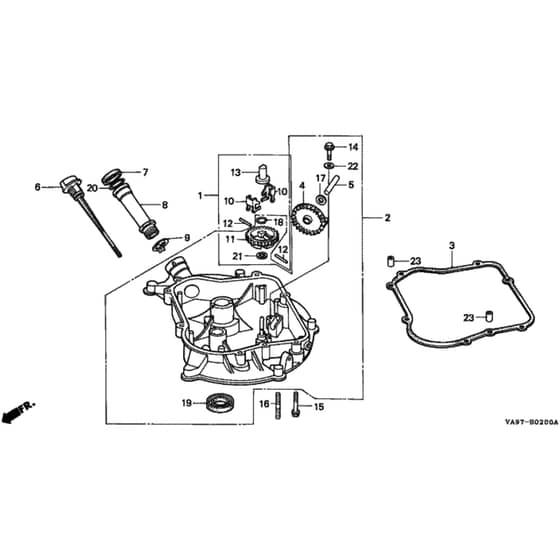

Honda HRB423 - PDT - MZBC 8000001-8099999 Oil Pan Diagram

Honda HRB423 - PDT - MZBC 8000001-8099999 Oil Pan Diagram
Honda HRB423 - PDT - MZBC 8000001-8099999 Oil Pan Diagram

Description

Honda HRB423 - PDT Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Governor Kit
Governor Kit
HP06165-ZG0-000 Out of stock
Governor Kit
£33.73 £28.11

  2 Crankcase Assy
Crankcase Assy
HP11300-ZG1-752 Out of stock
Crankcase Assy
£190.08 £158.40

  3 Case Cover Gasket
Case Cover Gasket
HP11381-ZG0-800 In stock
Case Cover Gasket
£5.41 £4.51

  4 Oil Slinger
Oil Slinger
HP15331-ZG1-750 Out of stock
Oil Slinger
£13.28 £11.07

  5 Oil Slinger Shaft
Oil Slinger Shaft
HP15332-896-700 Out of stock
Oil Slinger Shaft
£6.08 £5.07

  6 Oil Cap
Oil Cap
HP15620-ZG1-701 Out of stock
Oil Cap
£12.67 £10.56

  7 Gasket
Gasket
HP15625-ZE6-000 Out of stock
Gasket
£3.16 £2.63

  8 Oil Filler Extension
Oil Filler Extension
HP15630-ZG1-700 Out of stock
Oil Filler Extension
£31.44 £26.20

  9 Extension Lock Washer
Extension Lock Washer
HP15632-ZG1-700 Out of stock
Extension Lock Washer
£4.15 £3.46

  10 Weight
Weight
HP16511-896-000 Out of stock
Weight
£3.00 £2.50

  11 Holder
Holder
HP16512-ZG0-000 Out of stock
Holder
£12.60 £10.50

  12 Governor Weight Pin
Governor Weight Pin
HP16513-ZE1-000 Out of stock
Governor Weight Pin
£2.32 £1.93

  13 Governor Slider
Governor Slider
HP16531-ZG0-000 Out of stock
Governor Slider
£4.84 £4.03

  14 Flange Bolt
Flange Bolt
HP90005-896-000 Out of stock
Flange Bolt
£2.40 £2.00

  15 Flange Bolt 6 X 28
Flange Bolt 6 X 28
HP90015-883-000 Out of stock
Flange Bolt 6 X 28
£4.24 £3.53

  17 Washer
Washer
HP90539-836-000 Out of stock
Washer
£1.54 £1.28

  18 Governor Holder Clip
Governor Holder Clip
HP90602-ZE1-000 Out of stock
Governor Holder Clip
£3.91 £3.26

  19 Oil Seal 20 X 34 X 6
Oil Seal 20 X 34 X 6
HP91201-896-701 Out of stock
Oil Seal 20 X 34 X 6
£12.54 £10.45

  20 O-Ring
O-Ring
HP91305-679-003 Out of stock
O-Ring
£4.28 £3.57

  21 Plain Washer 6Mm
Plain Washer 6Mm
HP94101-06000 Out of stock
Plain Washer 6Mm
£1.40 £1.17

  22 Plain Washer 5Mm
Plain Washer 5Mm
HP94103-05000 Out of stock
Plain Washer 5Mm
£1.09 £0.91

  23 Dowel Pin 8 X 14
Dowel Pin 8 X 14
HP94301-08140 Out of stock
Dowel Pin 8 X 14
£3.20 £2.67


Description

Honda HRB423 - PDT Rotary Mower Parts Diagram
