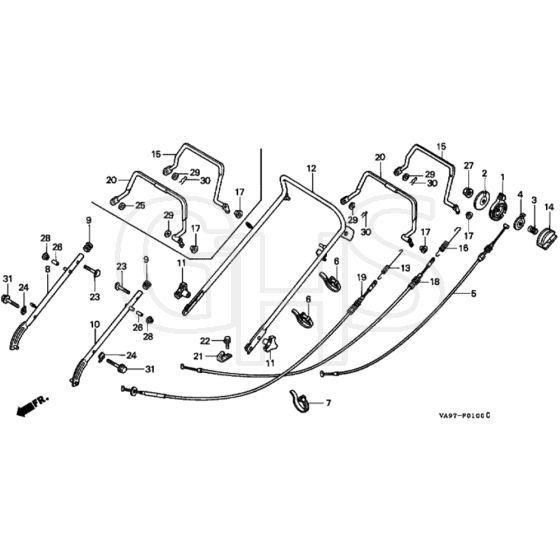

Honda HRB423 - PDE - MZBC 8000001-8099999 Handle Pipe Diagram

Name: Honda HRB423 - PDE - MZBC 8000001-8099999 Handle Pipe Diagram
SKU: hrb423_pde_mzbc_8000001_8099999_handle_pipe-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB423 - PDE - MZBC 8000001-8099999 Handle Pipe Diagram

Description

Honda HRB423 - PDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP17857-VA4-000 Out of stock	Throttle Lever Plate	£8.74 £7.28
3	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.76 £3.97
4	HP17859-VA4-000 Out of stock	Seat Spring	£6.77 £5.64
5	HP17910-VA9-000 Out of stock	Throttle Cable	£35.78 £29.82
6	HP32901-VE0-850 Out of stock	Cable Tie	£6.30 £5.25
7	HP32901-952-770 Out of stock	Cable Tie	£2.36 £1.97
8	HP53110-VA9-B50ZA Out of stock	Lower Handle	£30.72 £25.60
9	HP53115-VA9-K40 Out of stock	Lower Handle Cap	£0.60 £0.50
10	HP53120-VA9-B50ZA Out of stock	Lower Handle	£24.64 £20.53
11	HP53125-VA3-680 In stock	Handle Grip	£11.88 £9.90
12	HP53150-VA9-D50ZZ Out of stock	Handle Bar	£66.00 £55.00
14	HP54231-VA9-K40 Out of stock	Control Cover	£5.05 £4.21
17	HP54412-952-770 Out of stock	Clutch Lever Bush	£4.62 £3.85
19	HP54530-VA9-000 Out of stock	Brake Cable Assy	£30.84 £25.70
20	HP75171-VA9-F50ZA Out of stock	Brake Lever	£40.96 £34.13
23	HP90109-VD3-505 Out of stock	Handle Bolt	£17.10 £14.25
24	HP90501-898-000 Out of stock	Frame Joint Washer	£3.96 £3.30
25	HP90407-952-300 Out of stock	Special Washer 6Mm	£4.10 £3.42
26	HP91554-VA9-B50 Out of stock	Collar	£5.08 £4.23
27	HP94050-06000 In stock	Flange Nut 6Mm	£4.01 £3.34
28	HP94050-08000 Out of stock	Flange Nut 8Mm	£3.84 £3.20
29	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.56 £1.30
31	HP95801-080-7000 Out of stock	Flange Bolt	£2.66 £2.22
