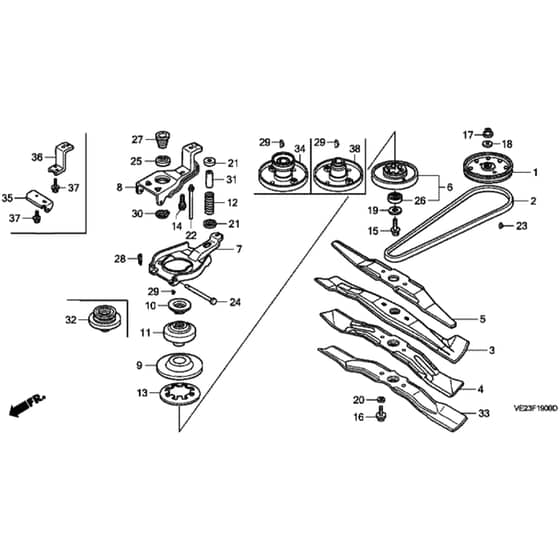

Honda HRB215K4 - SXC/A - MZBA 6424487-9999999 Rotary Blade Diagram

Honda HRB215K4 - SXC/A - MZBA 6424487-9999999 Rotary Blade Diagram
Honda HRB215K4 - SXC/A - MZBA 6424487-9999999 Rotary Blade Diagram

Description

Honda HRB215K4 - SXC/A Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  2 Belt
Belt
HP22431-VE1-T00 Out of stock
Belt
£26.00 £21.67

  4 Blade
Blade
HP72511-VG4-K00 Out of stock
Blade
£45.13 £37.61

  5 Upper Blade
Upper Blade
HP72531-VE2-020 Out of stock
Upper Blade
£45.13 £37.61

  6 Blade Holder Assy
Blade Holder Assy
HP72600-VE0-000 Out of stock
Blade Holder Assy
£86.40 £72.00

  7 Brake Arm Assy
Brake Arm Assy
HP75130-VE0-020 Out of stock
Brake Arm Assy
£79.86 £66.55

  9 Driven Disk
Driven Disk
HP75151-VE0-000 Out of stock
Driven Disk
£154.16 £128.47

  10 Pulley
Pulley
HP75161-VE2-801 Out of stock
Pulley
£69.24 £57.70

  11 Pulley
Pulley
HP75162-VE2-801 Out of stock
Pulley
£84.36 £70.30

  12 Clutch Return Spring
Clutch Return Spring
HP75182-VE0-000 Out of stock
Clutch Return Spring
£12.12 £10.10

  13 Clutch Spring
Clutch Spring
HP75183-VE0-000 Out of stock
Clutch Spring
£32.52 £27.10

  15 Bolt Hex 10 X 25
Bolt Hex 10 X 25
HP90105-VA3-J01 In stock
Bolt Hex 10 X 25
£3.90 £3.25

  16 Blade Bolt
Blade Bolt
HP90105-960-710 Out of stock
Blade Bolt
£2.65 £2.21

  17 Nut
Nut
HP90304-GA6-003 Out of stock
Nut
£4.92 £4.10

  18 Thrust Washer
Thrust Washer
HP90405-KV3-000 Out of stock
Thrust Washer
£3.58 £2.98

  19 Washer 10Mm
Washer 10Mm
HP90409-952-000 In stock
Washer 10Mm
£1.40 £1.17

  20 Spring Washer 10Mm
Spring Washer 10Mm
HP90502-VG3-000 Out of stock
Spring Washer 10Mm
£1.39 £1.16

  21 Washer
Washer
HP90557-461-000 Out of stock
Washer
£2.33 £1.94

  22 Spring Guide Pin
Spring Guide Pin
HP90701-VE0-000 In stock
Spring Guide Pin
£17.44 £14.53

  23 Woodruff Key
Woodruff Key
HP90751-VE2-M00 Out of stock
Woodruff Key
£0.35 £0.29

  24 Bonnet Hinge Pin
Bonnet Hinge Pin
HP90756-735-000 Out of stock
Bonnet Hinge Pin
£8.24 £6.87

  26 Bearing
Bearing
HP91102-VA4-013 In stock
Bearing
£29.38 £24.48

  28 Split Pin 2.0 X 15
Split Pin 2.0 X 15
HP94201-20150 Out of stock
Split Pin 2.0 X 15
£1.69 £1.41

  29 Woodruff Key
Woodruff Key
HP94401-16150 In stock
Woodruff Key
£0.68 £0.57

  33 Blade
Blade
HP72511-VE1-020 Out of stock
Blade
£55.69 £46.41

  35 Clutch Arm Hinge
Clutch Arm Hinge
HP75148-VE0-000 Out of stock
Clutch Arm Hinge
£7.34 £6.12

  36 Holder
Holder
HP75149-VE0-000 Out of stock
Holder
£24.72 £20.60

  37 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP90014-952-000 Out of stock
Flange Bolt 6 X 14
£3.95 £3.29


Description

Honda HRB215K4 - SXC/A Rotary Mower Parts Diagram
