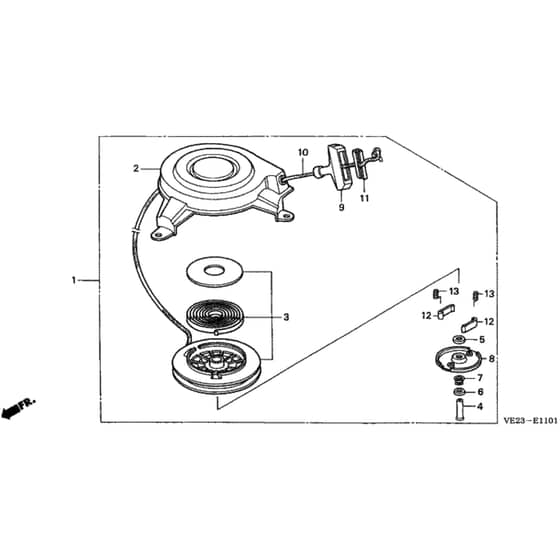

Honda HRB215K4 - SDC - MZBA 6400001-9999999 Recoil Starter Diagram

Name: Honda HRB215K4 - SDC - MZBA 6400001-9999999 Recoil Starter Diagram
SKU: hrb215k4_sdc_mzba_6400001_9999999_recoil_starter-group
Price: 2.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K4 - SDC - MZBA 6400001-9999999 Recoil Starter Diagram

Description

Honda HRB215K4 - SDC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28400-ZG9-803 Out of stock	Starter Recoil Assy	£97.92 £81.60
3	HP28415-ZG9-802 Out of stock	Pulley & Spring Assy	£38.82 £32.35
4	HP28419-ZG9-802 Out of stock	Centre Pin	£7.57 £6.31
5	HP28431-ZG9-802 Out of stock	Friction Plate	£4.18 £3.48
6	HP28432-ZG9-802 Out of stock	Friction Plate	£3.35 £2.79
7	HP28441-ZG9-802 Out of stock	Friction Spring	£3.06 £2.55
8	HP28444-ZG9-802 Out of stock	Retainer Spring	£6.30 £5.25
9	HP28461-ZE6-T02 Out of stock	Recoil Handle	£15.70 £13.08
10	HP28462-ZG9-802 Out of stock	Recoil Starter Rope	£12.42 £10.35
11	HP28463-ZE6-T02 Out of stock	Handle	£12.10 £10.08
12	HP28485-ZE6-T02 Out of stock	Dog	£7.30 £6.08
13	HP28486-ZE6-T02 Out of stock	Dog Spring	£4.03 £3.36
