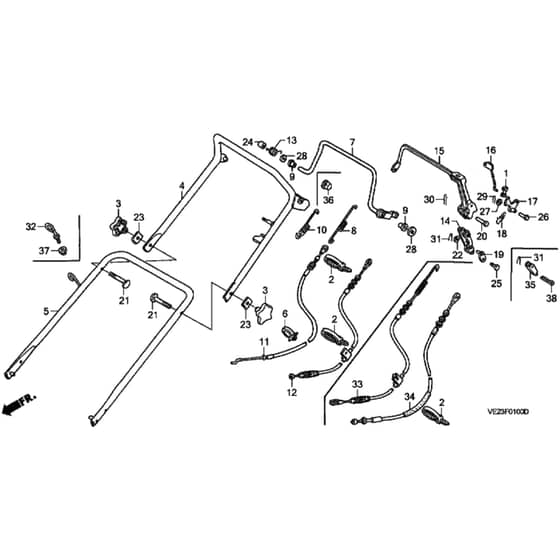

Honda HRB215K4 - HXC Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Rod Joint
Rod Joint
HP16956-892-000 Out of stock
Rod Joint
£8.52 £7.10

  2 Cable Tie
Cable Tie
HP32901-VB5-A00 Out of stock
Cable Tie
£5.29 £4.41

  3 Handle Grip
Handle Grip
HP53125-VA4-K10 Out of stock
Handle Grip
£14.29 £11.91

  7 Clutch Lever Assy
Clutch Lever Assy
HP54410-VA3-J00 Out of stock
Clutch Lever Assy
£73.32 £61.10

  8 Clutch Spring
Clutch Spring
HP54411-VB3-800 In stock
Clutch Spring
£9.92 £8.27

  9 Clutch Lever Bush
Clutch Lever Bush
HP54412-952-770 Out of stock
Clutch Lever Bush
£4.62 £3.85

  10 Clutch Lever Return Spring
Clutch Lever Return Spring
HP54414-VA3-P00 In stock
Clutch Lever Return Spring
£6.12 £5.10

  13 Stop Return Spring R H
Stop Return Spring R H
HP75118-VA3-J00 In stock
Stop Return Spring R H
£7.56 £6.30

  15 Roto-Stop Lever Assy
Roto-Stop Lever Assy
HP75161-VA3-J01 Out of stock
Roto-Stop Lever Assy
£115.44 £96.20

  16 Ratchet Push Rod
Ratchet Push Rod
HP75165-VA3-J00 Out of stock
Ratchet Push Rod
£19.75 £16.46

  17 Lock Lever
Lock Lever
HP75166-VA3-J01 Out of stock
Lock Lever
£20.23 £16.86

  18 Pawl Spring
Pawl Spring
HP75168-VA4-000 Out of stock
Pawl Spring
£5.51 £4.59

  20 Clutch Lever Pin
Clutch Lever Pin
HP90106-VA4-800 Out of stock
Clutch Lever Pin
£9.95 £8.29

  21 Handle Bolt
Handle Bolt
HP90109-VA4-000 Out of stock
Handle Bolt
£10.62 £8.85

  23 Frame Joint Washer
Frame Joint Washer
HP90501-898-000 Out of stock
Frame Joint Washer
£3.96 £3.30

  24 Collar 8 X 11 X 13.5
Collar 8 X 11 X 13.5
HP90552-VA3-J00 Out of stock
Collar 8 X 11 X 13.5
£5.89 £4.91

  26 Lever Hinge Lock Pin
Lever Hinge Lock Pin
HP90753-VA3-J00 Out of stock
Lever Hinge Lock Pin
£4.13 £3.44

  27 Plain Washer 6Mm
Plain Washer 6Mm
HP94101-06000 Out of stock
Plain Washer 6Mm
£1.40 £1.17

  28 Plain Washer 8Mm
Plain Washer 8Mm
HP94101-08000 Out of stock
Plain Washer 8Mm
£1.09 £0.91

  29 Lock Pin 6Mm
Lock Pin 6Mm
HP94251-06000 Out of stock
Lock Pin 6Mm
£1.45 £1.21

  30 Lock Pin 8Mm
Lock Pin 8Mm
HP94251-08000 Out of stock
Lock Pin 8Mm
£1.75 £1.46

  34 Roto-Stop Cable
Roto-Stop Cable
HP54530-VE1-T01 Out of stock
Roto-Stop Cable
£49.74 £41.45

  35 Roto-Stop Arm
Roto-Stop Arm
HP75130-VE1-L10 Out of stock
Roto-Stop Arm
£28.20 £23.50

  38 Split Pin
Split Pin
HP94201-20100 Out of stock
Split Pin
£1.24 £1.03
