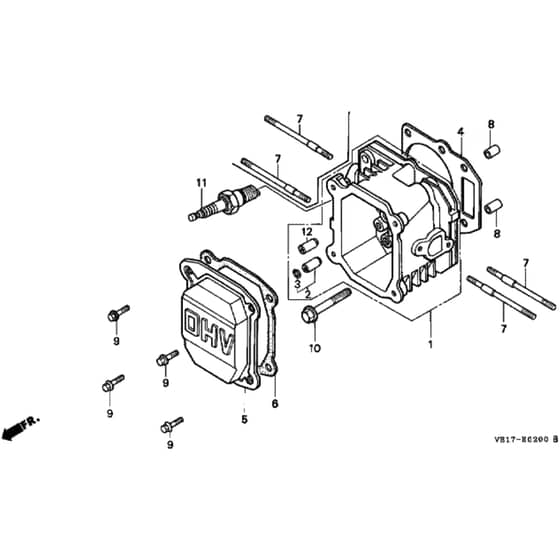

Honda HRB215K3 - SXC/A - MZBA 6372131-6399999 Cylinder Head Diagram

Name: Honda HRB215K3 - SXC/A - MZBA 6372131-6399999 Cylinder Head Diagram
SKU: hrb215k3_sxc_a_mzba_6372131_6399999_cylinder_head-group
Price: 1.25 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K3 - SXC/A - MZBA 6372131-6399999 Cylinder Head Diagram

Description

Honda HRB215K3 - SXC/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP12200-ZG9-P41 Out of stock	Cylinder Head Assy	£204.36 £170.30
2	HP12205-ZE1-315 Out of stock	Exhaust Valve Guide	£13.37 £11.14
3	HP12216-ZE5-300 Out of stock	Valve Guide Clip	£3.91 £3.26
4	HP12251-ZG9-000 Out of stock	Cylinder Head Gasket	£11.93 £9.94
5	HP12311-ZG9-800 Out of stock	Rocker Cover	£23.63 £19.69
6	HP12391-ZG9-800 Out of stock	Rocker Cover Gasket	£13.32 £11.10
7	HP90013-ZG9-T00 Out of stock	Stud 6 X 83	£5.39 £4.49
8	HP94301-10160 Out of stock	Dowel Pin 10 X 16	£3.73 £3.11
9	HP95701-0601400 Out of stock	Flange Bolt 6 X 14	£1.50 £1.25
10	HP95701-0805000 Out of stock	Bolt	£2.30 £1.92
11	7230 In stock	Spark Plug	£4.40 £3.67
11	2135 In stock	Spark Plug	£3.54 £2.95
12	HP12204-ZE1-306 Out of stock	Inlet Valve Guide	£11.86 £9.88
