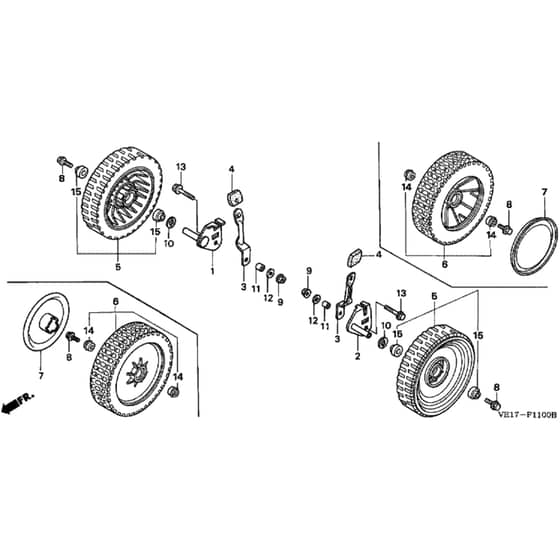

Honda HRB215K3 - SDC - MZBA 6300001-6399999 Front Wheel Diagram

Name: Honda HRB215K3 - SDC - MZBA 6300001-6399999 Front Wheel Diagram
SKU: hrb215k3_sdc_mzba_6300001_6399999_front_wheel-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K3 - SDC - MZBA 6300001-6399999 Front Wheel Diagram

Description

Honda HRB215K3 - SDC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42911-VE1-L10 Out of stock	Front Adjuster Arm R H	£22.06 £18.38
2	HP42921-VE1-L10 Out of stock	Adjuster Arm Front L H	£23.62 £19.68
3	HP42951-VE2-000 In stock	Front Adjuster Plate	£16.00 £13.33
4	HP42952-VG3-000ZA In stock	Adjuster Grip	£1.56 £1.30
6	HP44710-VE0-751ZB Out of stock	Front Wheel	£43.66 £36.38
7	HP44719-VE0-751ZA In stock	Hub Cap	£3.88 £3.23
8	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
9	HP90115-659-003 Out of stock	Nut	£6.30 £5.25
10	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
11	HP91557-VE0-000 Out of stock	Arm Collar	£11.58 £9.65
12	HP94103-08000 Out of stock	Plain Washer 8Mm	£0.48 £0.40
13	HP95801-0805000 Out of stock	Flange Bolt 8 X 50	£2.60 £2.17
14	HP91051-VE0-750 In stock	Bearing	£11.40 £9.50
