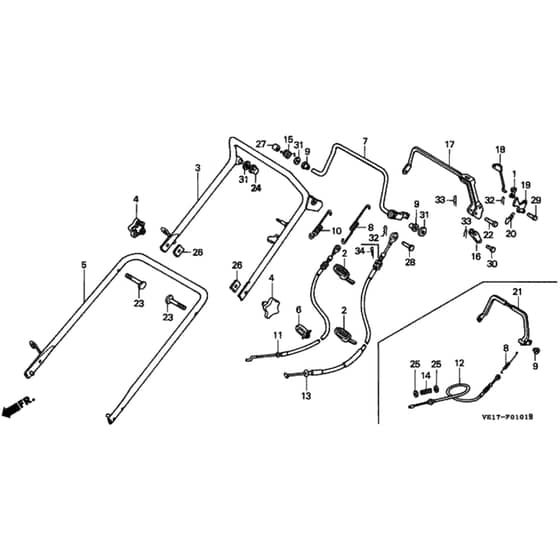

Honda HRB215K3 - PXC - MZBA 6300001-6399999 Handle Pipe Diagram

Name: Honda HRB215K3 - PXC - MZBA 6300001-6399999 Handle Pipe Diagram
SKU: hrb215k3_pxc_mzba_6300001_6399999_handle_pipe-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K3 - PXC - MZBA 6300001-6399999 Handle Pipe Diagram

Description

Honda HRB215K3 - PXC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000 Out of stock	Rod Joint	£8.52 £7.10
2	HP32901-VB5-A00 Out of stock	Cable Tie	£5.29 £4.41
4	HP53125-VA4-K10 Out of stock	Handle Grip	£14.29 £11.91
5	HP53150-VE2-M10ZA Out of stock	Lower Handle	£75.10 £62.58
6	HP53735-SE0-961 Out of stock	Clip	£7.88 £6.57
13	HP54530-VE2-M12 In stock	Roto-Stop Cable	£25.93 £21.61
15	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.56 £6.30
16	HP75130-VE1-L10 Out of stock	Roto-Stop Arm	£28.20 £23.50
16	HP75128-VA3-J00 Out of stock	Roto-Stop Arm	£19.98 £16.65
17	HP75161-VA3-J01 Out of stock	Roto-Stop Lever Assy	£115.44 £96.20
18	HP75165-VA3-J00 Out of stock	Ratchet Push Rod	£19.75 £16.46
19	HP75166-VA3-J01 Out of stock	Lock Lever	£20.23 £16.86
20	HP75168-VA4-000 Out of stock	Pawl Spring	£5.51 £4.59
22	HP90106-VA4-000 Out of stock	Pin	£10.06 £8.38
23	HP90109-VA4-000 Out of stock	Handle Bolt	£10.62 £8.85
24	HP90301-VA3-J01 In stock	Push Nut	£2.28 £1.90
26	HP90501-898-000 Out of stock	Frame Joint Washer	£3.96 £3.30
27	HP90552-VA3-J00 Out of stock	Collar 8 X 11 X 13.5	£5.89 £4.91
28	HP90751-VE1-L10 Out of stock	Pin	£0.34 £0.28
29	HP90753-VA3-J00 Out of stock	Lever Hinge Lock Pin	£4.13 £3.44
30	HP90754-VA3-J00 Out of stock	Cable Joint Pin	£4.20 £3.50
31	HP94101-08000 Out of stock	Plain Washer 8Mm	£1.09 £0.91
32	HP94251-06000 Out of stock	Lock Pin 6Mm	£1.45 £1.21
33	HP94251-08000 Out of stock	Lock Pin 8Mm	£1.75 £1.46
34	HP94201-20100 Out of stock	Split Pin	£1.24 £1.03
