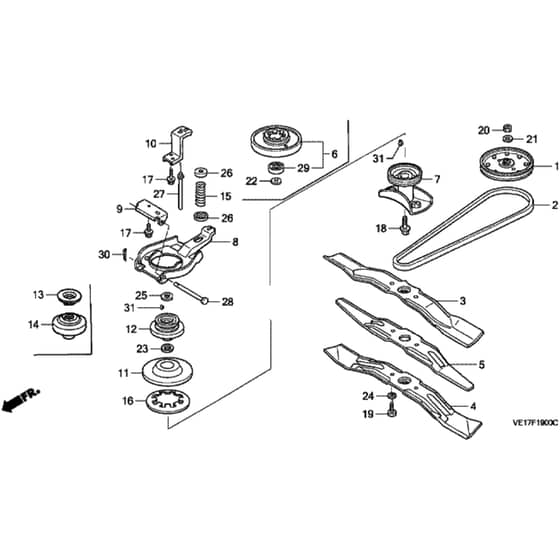

Honda HRB215K2 - SXC - MZBA 6200001-6299999 Rotary Blade Diagram

Honda HRB215K2 - SXC - MZBA 6200001-6299999 Rotary Blade Diagram
Honda HRB215K2 - SXC - MZBA 6200001-6299999 Rotary Blade Diagram

Description

Honda HRB215K2 - SXC Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Pulley
Pulley
HP22420-VE2-M00 Out of stock
Pulley
£58.08 £48.40

  2 Belt
Belt
HP22431-VE2-801 Out of stock
Belt
£30.20 £25.17

  3 Blade
Blade
HP72511-VE1-020 Out of stock
Blade
£55.69 £46.41

  4 Blade
Blade
HP72511-VG4-K00 Out of stock
Blade
£45.13 £37.61

  5 Blade
Blade
HP72531-VE2-020 Out of stock
Blade
£45.13 £37.61

  5 Blade
Blade
HP72531-VE2-010 Out of stock
Blade
£45.67 £38.06

  6 Blade Holder Assy
Blade Holder Assy
HP72600-VE0-000 Out of stock
Blade Holder Assy
£86.40 £72.00

  8 Brake Arm Assy
Brake Arm Assy
HP75130-VE0-020 Out of stock
Brake Arm Assy
£79.86 £66.55

  9 Clutch Arm Hinge
Clutch Arm Hinge
HP75148-VE0-000 Out of stock
Clutch Arm Hinge
£7.34 £6.12

  10 Holder
Holder
HP75149-VE0-000 Out of stock
Holder
£24.72 £20.60

  11 Driven Disk
Driven Disk
HP75151-VE0-000 Out of stock
Driven Disk
£154.16 £128.47

  12 Pulley Kit
Pulley Kit
HP06751-VE1-305 Out of stock
Pulley Kit
£113.20 £94.33

  15 Clutch Return Spring
Clutch Return Spring
HP75182-VE0-000 Out of stock
Clutch Return Spring
£12.12 £10.10

  16 Clutch Spring
Clutch Spring
HP75183-VE0-000 Out of stock
Clutch Spring
£32.52 £27.10

  17 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP90014-952-000 Out of stock
Flange Bolt 6 X 14
£3.95 £3.29

  18 Bolt Hex 10 X 25
Bolt Hex 10 X 25
HP90105-VA3-J01 In stock
Bolt Hex 10 X 25
£3.90 £3.25

  19 Blade Bolt
Blade Bolt
HP90105-960-710 Out of stock
Blade Bolt
£2.65 £2.21

  20 Nut
Nut
HP90301-VE2-800 Out of stock
Nut
£5.98 £4.98

  22 Washer 10Mm
Washer 10Mm
HP90409-952-000 In stock
Washer 10Mm
£1.40 £1.17

  23 Thrust Washer
Thrust Washer
HP90453-KZ4-000 Out of stock
Thrust Washer
£3.30 £2.75

  24 Washer
Washer
HP90481-430-000 In stock
Washer
£4.42 £3.68

  25 Thrust Washer
Thrust Washer
HP90501-952-010 Out of stock
Thrust Washer
£6.30 £5.25

  26 Washer
Washer
HP90557-461-000 Out of stock
Washer
£2.33 £1.94

  27 Spring Guide Pin
Spring Guide Pin
HP90701-VE0-000 In stock
Spring Guide Pin
£17.44 £14.53

  28 Bonnet Hinge Pin
Bonnet Hinge Pin
HP90756-735-000 Out of stock
Bonnet Hinge Pin
£8.24 £6.87

  29 Bearing
Bearing
HP91102-VA4-013 In stock
Bearing
£29.38 £24.48

  30 Split Pin 2.0 X 15
Split Pin 2.0 X 15
HP94201-20150 Out of stock
Split Pin 2.0 X 15
£1.69 £1.41

  31 Woodruff Key
Woodruff Key
HP94401-16150 In stock
Woodruff Key
£0.68 £0.57


Description

Honda HRB215K2 - SXC Rotary Mower Parts Diagram
