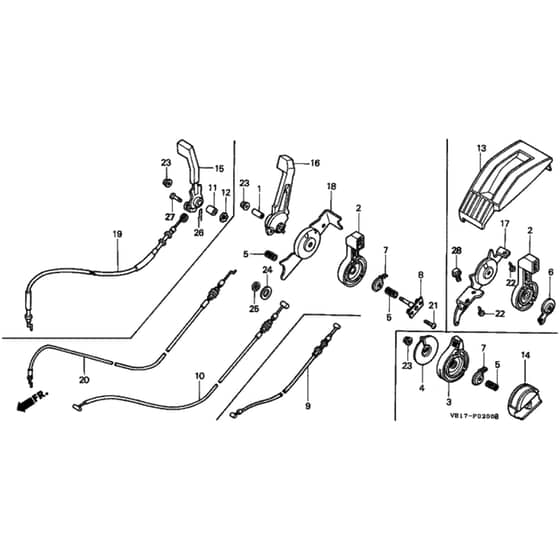

Honda HRB215K2 - SDC - MZBA 6200001-6299999 Throttle Lever Diagram

Honda HRB215K2 - SDC - MZBA 6200001-6299999 Throttle Lever Diagram
Honda HRB215K2 - SDC - MZBA 6200001-6299999 Throttle Lever Diagram

Description

Honda HRB215K2 - SDC Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Air Filter Collar
Air Filter Collar
HP17238-ZE7-710 Out of stock
Air Filter Collar
£5.39 £4.49

  2 Throttle Lever
Throttle Lever
HP17851-VA3-D01 In stock
Throttle Lever
£15.01 £12.51

  5 Throttle Lever Spring
Throttle Lever Spring
HP17858-VA4-000 In stock
Throttle Lever Spring
£4.76 £3.97

  7 Seat Spring
Seat Spring
HP17859-VA4-000 Out of stock
Seat Spring
£6.77 £5.64

  8 Pin
Pin
HP17865-VE2-800 Out of stock
Pin
£27.40 £22.83

  10 Throttle Cable
Throttle Cable
HP17910-VE2-003 Out of stock
Throttle Cable
£32.93 £27.44

  16 Change Lever
Change Lever
HP54311-VE2-800 Out of stock
Change Lever
£19.19 £15.99

  18 Stopper Plate
Stopper Plate
HP54315-VE2-800 Out of stock
Stopper Plate
£37.72 £31.43

  20 Speed Change Cable
Speed Change Cable
HP54630-VE2-801 Out of stock
Speed Change Cable
£49.74 £41.45

  21 Screw
Screw
HP93500-06032-0A Out of stock
Screw
£1.80 £1.50

  23 Flange Nut 6Mm
Flange Nut 6Mm
HP94050-06080 Out of stock
Flange Nut 6Mm
£0.77 £0.64

  24 Plain Washer 10Mm
Plain Washer 10Mm
HP94102-10000 Out of stock
Plain Washer 10Mm
£1.16 £0.97

  25 Plain Washer 6Mm
Plain Washer 6Mm
HP94103-06000 In stock
Plain Washer 6Mm
£1.09 £0.91
