Description

Hayter Spirit 41 - Petrol Autodrive Mower - 619J

Serial No: 402000000 - 999999999

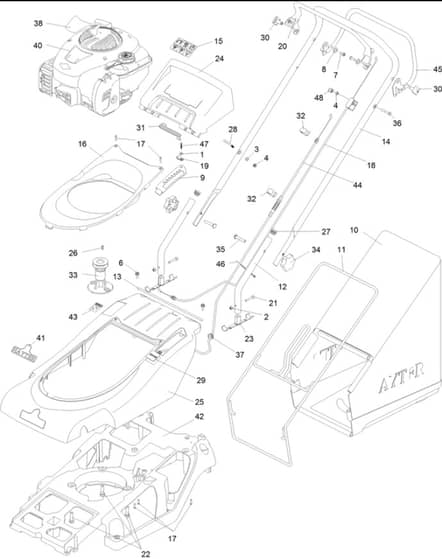

Upper Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 Washer
Washer
HA09257 Out of stock
Washer
£1.63 £1.36

  2 Nut-Nyloc
Nut-Nyloc
HA09438 In stock
Nut-Nyloc
£1.62 £1.35

  3 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  4 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  6 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  7 Screw
Screw
HA134-0442 Out of stock
Screw
£193.80 £161.50

  9 Plate-Hoc
Plate-Hoc
HA111-0040 Out of stock
Plate-Hoc
£14.34 £11.95

  10 Grass Bag
Grass Bag
HA111-0042 Out of stock
Grass Bag
£41.92 £34.93

  11 Frame-Grassbag
Frame-Grassbag
HA111-0045-03 Out of stock
Frame-Grassbag
£51.68 £43.07

  12 Handlebars-Lower
Handlebars-Lower
HA111-0051-03 Out of stock
Handlebars-Lower
£35.24 £29.37

  13 Bar-Hinge
Bar-Hinge
HA111-0056 Out of stock
Bar-Hinge
£2.87 £2.39

  14 Handlebars
Handlebars
HA111-0079-03 Out of stock
Handlebars
£62.86 £52.38

  15 Decal-Safety
Decal-Safety
HA111-0083 Out of stock
Decal-Safety
£2.30 £1.92

  16 Moulding-Trim
Moulding-Trim
HA111-0089 Out of stock
Moulding-Trim
£55.15 £45.96

  17 Screw
Screw
HA111-9903 Out of stock
Screw
£1.52 £1.27

  18 Cable-Brake. Engine
Cable-Brake. Engine
HA111-0096 In stock
Cable-Brake. Engine
£13.09 £10.91

  19 Clip-P
Clip-P
HA111-0098 Out of stock
Clip-P
£1.96 £1.63

  20 Opc Lever - Engine
Opc Lever - Engine
HA111-9662 In stock
Opc Lever - Engine
£17.81 £14.84

  21 Screw-Hsh
Screw-Hsh
HA111-0118 Out of stock
Screw-Hsh
£0.29 £0.24

  23 Plug-Handlebar
Plug-Handlebar
HA111-0960 Out of stock
Plug-Handlebar
£1.56 £1.30

  24 Moulding-Deflector. Rear
Moulding-Deflector. Rear
HA111-1043 In stock
Moulding-Deflector. Rear
£28.70 £23.92

  25 Upper Deck Moulding Upper
Upper Deck Moulding Upper
HA111-1054 In stock
Upper Deck Moulding Upper
£54.97 £45.81

  26 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  29 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  30 Pin-Pivot
Pin-Pivot
HA340182 In stock
Pin-Pivot
£1.62 £1.35

  31 Spring-Deflector
Spring-Deflector
HA410030 In stock
Spring-Deflector
£6.24 £5.20

  32 Guide-Cable
Guide-Cable
HA410037 In stock
Guide-Cable
£1.46 £1.22

  33 Carrier-Blade
Carrier-Blade
HA410078 In stock
Carrier-Blade
£41.78 £34.82

  34 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  35 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  36 Screw-HH
Screw-HH
HAZBH1F040U Out of stock
Screw-HH
£1.86 £1.55

  40 Decal Engine Spirit 41
Decal Engine Spirit 41
HA111-7093 Out of stock
Decal Engine Spirit 41
£2.46 £2.05

  41 Decal
Decal
HA410087 In stock
Decal
£4.79 £3.99

  42 Chassis
Chassis
HA111-0031-07 Out of stock
Chassis
£231.73 £193.11

  43 Made In Britain Decal
Made In Britain Decal
HA111-7722 Out of stock
Made In Britain Decal
£1.45 £1.21

  44 Cable - Clutch
Cable - Clutch
HA111-6614 In stock
Cable - Clutch
£16.60 £13.83

  45 Lever-Clutch
Lever-Clutch
HA111-1921-03 In stock
Lever-Clutch
£42.52 £35.43

  46 Tie-Cable
Tie-Cable
HAHY3966 Out of stock
Tie-Cable
£1.56 £1.30

  47 Screw
Screw
HA134-0440 Out of stock
Screw
£1.24 £1.03

  48 Cap-Plastic
Cap-Plastic
HA343025 Out of stock
Cap-Plastic
£1.63 £1.36


Description

Hayter Spirit 41 - Petrol Autodrive Mower - 619J

Serial No: 402000000 - 999999999

Upper Assembly - Parts Diagram
