Hayter Ranger 53 Pro - 396E (396E270000001 - 396E290999999) - Main Assembly

Description

Hayter Ranger 53 Pro - 396E

Serial No: 396E270000001 - 396E290999999

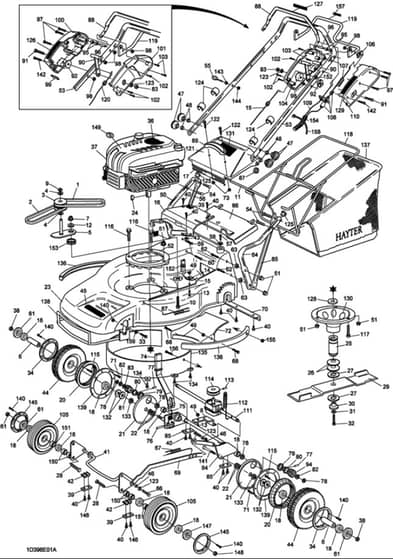

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HASA284930 Out of stock	Belt - Variable Pulley To Gearbox	£25.70 £21.42
2	HASA284920 Out of stock	Belt - Engine Crankshaft To Variable Pulley	£27.88 £23.23
5	HASA380200 Out of stock	Bracket - Pivot	£24.11 £20.09
13	HA111-4624 Out of stock	Setscrew	£1.56 £1.30
19	HA320006 In stock	Decal-Hoc	£1.62 £1.35
26	HASA2006400 Out of stock	Washer - Bellville	£6.80 £5.67
27	HASA3006420 Out of stock	Washer - Large	£11.32 £9.43
30	HASA3006410 Out of stock	Spacer - Location	£49.18 £40.98
31	HASA281100 Out of stock	Washer - Spring	£1.52 £1.27
32	HASA281080 Out of stock	Screw - Blade	£14.62 £12.18
42	HASA480180 Out of stock	Bush - Axle	£1.80 £1.50
43	HA111-4592 Out of stock	Washer - Plain	£1.69 £1.41
45	HA410087 In stock	Decal	£4.79 £3.99
47	HA111-4637 Out of stock	Knob - Large	£4.62 £3.85
48	HA111-4638 Out of stock	Cap	£1.56 £1.30
54	HA111-4642 Out of stock	Bolt - Carriage	£1.56 £1.30
55	HA111-4655 Out of stock	Loop - Recoil Rope	£5.42 £4.52
56	HASA380590 Out of stock	Support R.H. - Handlebar	£8.23 £6.86
63	HA111-4628 Out of stock	Washer - Fixing	£1.56 £1.30
65	HASA380300 Out of stock	Support L.H. - Handlebar	£8.23 £6.86
77	HASA203510 Out of stock	Key - Drive	£5.88 £4.90
78	HASA144590 Out of stock	Circlip	£1.52 £1.27
79	HASA403510 Out of stock	Collar	£4.63 £3.86
80	HASA403520 Out of stock	Spacer - Plastic	£4.63 £3.86
81	HASA242210 Out of stock	Gear	£16.32 £13.60
90	HASA443670 Out of stock	Lever	£5.23 £4.36
91	HASA147780 Out of stock	Bolt	£52.74 £43.95
94	HASA242220 Out of stock	Gear	£16.32 £13.60
96	HASA180790 Out of stock	Pin - Pivot	£6.04 £5.03
97	HASA140310 Out of stock	Screw	£1.52 £1.27
102	HASA185610 Out of stock	Screw - Self Tapping	£1.52 £1.27
104	HASA480820 Out of stock	Cover	£13.14 £10.95
106	HASA460260 Out of stock	Spacer - Ground Drive Cable	£1.52 £1.27
107	HASA262090 Out of stock	Spring - Ground Drive Cable	£5.38 £4.48
108	HASA2013880 Out of stock	Cable - Ground Drive	£36.38 £30.32
109	HASA2053230 Out of stock	Cable - Engine Stop	£33.41 £27.84
111	HASA280230 Out of stock	Gearbox	£210.38 £175.32
112	HASA295930 Out of stock	Spring - Tension	£7.08 £5.90
113	HASA280890 Out of stock	Pin - Roll	£1.52 £1.27
114	HASA284840 Out of stock	Pulley	£10.94 £9.12
120	HASA285900 Out of stock	Cable - Throttle	£21.70 £18.08
121	HASA3013890 Out of stock	Deflector - Rear	£83.22 £69.35
122	HA111-4615 Out of stock	Setscrew	£6.18 £5.15
131	HA111-0083 Out of stock	Decal-Safety	£2.30 £1.92
137	HASA2011620 Out of stock	Fabric - Grassbag	£111.14 £92.62
144	HA111-4597 Out of stock	Nut - Full Flanged	£1.69 £1.41
149	HA410064 Out of stock	Decal - Blade Of Grass	£9.37 £7.81
150	HA111-4618 Out of stock	Spacer- Front Wheel	£5.99 £4.99
152	HASA1013500 Out of stock	Ring - Shaft	£1.97 £1.64
153	HASA295940 Out of stock	Spring	£11.05 £9.21
158	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
