Description

Hayter Ranger 53 Autodrive 4 Speed Mower - 399A

Serial No: 399A001001 - 399A099999

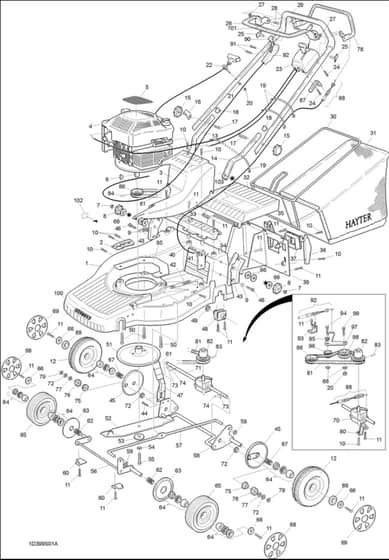

Mainframe Assembly - Parts Diagram

Ref. Img. Part No. Details
  6 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  8 Knob
Knob
HA397046 Out of stock
Knob
£12.46 £10.38

  9 Washer
Washer
HA09475 Out of stock
Washer
£1.63 £1.36

  11 Screw-Taptite. Pozidriv
Screw-Taptite. Pozidriv
HA09596 Out of stock
Screw-Taptite. Pozidriv
£1.56 £1.30

  15 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  17 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  19 Spring - Clip
Spring - Clip
HA3966 Out of stock
Spring - Clip
£1.18 £0.98

  20 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  21 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  25 Pin-Pivot
Pin-Pivot
HA340182 In stock
Pin-Pivot
£1.62 £1.35

  26 Lever-Engine
Lever-Engine
HA111-9662 In stock
Lever-Engine
£17.81 £14.84

  28 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  29 Upper Handlebar
Upper Handlebar
HA341029 Out of stock
Upper Handlebar
£91.08 £75.90

  30 Frame - Grassbag W/A
Frame - Grassbag W/A
HA399005W Out of stock
Frame - Grassbag W/A
£32.44 £27.03

  40 Bolt - Coach
Bolt - Coach
HA09766 Out of stock
Bolt - Coach
£1.56 £1.30

  41 Attachment Plate
Attachment Plate
HA397018 Out of stock
Attachment Plate
£5.84 £4.87

  44 Screw-Taptite
Screw-Taptite
HA09546 Out of stock
Screw-Taptite
£1.64 £1.37

  46 Screw-HH
Screw-HH
HA09368 Out of stock
Screw-HH
£1.63 £1.36

  48 Bushing
Bushing
HA397016 Out of stock
Bushing
£20.24 £16.87

  49 Seal Shaft
Seal Shaft
HA397041 Out of stock
Seal Shaft
£2.45 £2.04

  51 Friction Disc
Friction Disc
HA397042W Out of stock
Friction Disc
£55.30 £46.08

  52 Cutterbar 21
Cutterbar 21
HA330032 Out of stock
Cutterbar 21"
£55.68 £46.40

  53 Drag Plate
Drag Plate
HA4014 Out of stock
Drag Plate
£11.52 £9.60

  54 Washer-Spring
Washer-Spring
HA09273 Out of stock
Washer-Spring
£1.62 £1.35

  55 Screw Hex Hd 3/8 Unf x11/4
Screw Hex Hd 3/8 Unf x11/4
HA09116 Out of stock
Screw Hex Hd 3/8 Unf x11/4
£1.63 £1.36

  58 Rear Axle
Rear Axle
HA397030 Out of stock
Rear Axle
£62.16 £51.80

  65 Wheel Assembly - (Incl. Item 64)
Wheel Assembly - (Incl. Item 64)
HA397014 Out of stock
Wheel Assembly - (Incl. Item 64)
£63.29 £52.74

  66 Washer
Washer
HA09263 Out of stock
Washer
£1.56 £1.30

  71 Transmission
Transmission
HA398001 Out of stock
Transmission
£136.51 £113.76

  72 Washer
Washer
HA02575 In stock
Washer
£1.63 £1.36

  74 Pin
Pin
HA398002 Out of stock
Pin
£7.36 £6.13

  75 Lock Washer
Lock Washer
HA398005 Out of stock
Lock Washer
£6.56 £5.47

  76 Gear Wheel
Gear Wheel
HA398007 Out of stock
Gear Wheel
£15.16 £12.63

  77 Support Washer
Support Washer
HA398006 Out of stock
Support Washer
£2.08 £1.73

  78 Lever-Clutch
Lever-Clutch
HA111-1921-03 In stock
Lever-Clutch
£42.52 £35.43

  79 Clip E
Clip E
HA09767 Out of stock
Clip E
£1.56 £1.30

  81 V Belt
V Belt
HA399024 Out of stock
V Belt
£35.69 £29.74

  84 Grubscrew
Grubscrew
HA09769 Out of stock
Grubscrew
£1.56 £1.30

  96 Tension Roller
Tension Roller
HA399015 Out of stock
Tension Roller
£32.88 £27.40

  99 Screw-HH
Screw-HH
HA09547 Out of stock
Screw-HH
£1.63 £1.36

  100 Decal - Hayter
Decal - Hayter
HA410087 In stock
Decal - Hayter
£4.79 £3.99

  102 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  103 Decal - Caution
Decal - Caution
HA111-0083 Out of stock
Decal - Caution
£2.30 £1.92
