Description

Hayter Ranger 48 Push - 397A

Serial No: 397A001001 - 397A099999

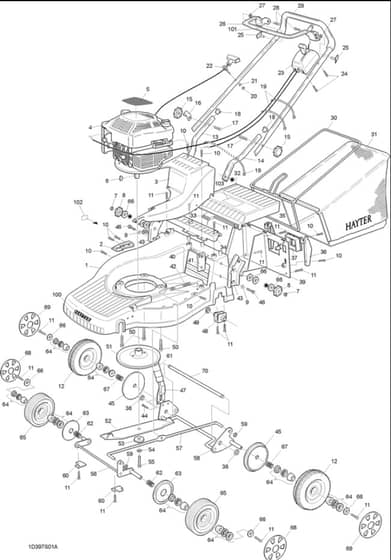

Mainframe Assembly - Parts Diagram

Ref. Img. Part No. Details
  6 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  8 Knob
Knob
HA397046 Out of stock
Knob
£12.46 £10.38

  9 Washer
Washer
HA09475 Out of stock
Washer
£1.63 £1.36

  11 Screw-Taptite. Pozidriv
Screw-Taptite. Pozidriv
HA09596 Out of stock
Screw-Taptite. Pozidriv
£1.56 £1.30

  12 Wheel Assembly
Wheel Assembly
HA397021 Out of stock
Wheel Assembly
£51.12 £42.60

  15 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  17 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  19 Spring - Clip
Spring - Clip
HA3966 Out of stock
Spring - Clip
£1.18 £0.98

  20 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  21 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  25 Pin-Pivot
Pin-Pivot
HA340182 In stock
Pin-Pivot
£1.62 £1.35

  26 Lever-Engine
Lever-Engine
HA111-9662 In stock
Lever-Engine
£17.81 £14.84

  28 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  29 Upper Handlebar
Upper Handlebar
HA341029 Out of stock
Upper Handlebar
£91.08 £75.90

  40 Bolt - Coach
Bolt - Coach
HA09766 Out of stock
Bolt - Coach
£1.56 £1.30

  41 Attachment Plate
Attachment Plate
HA397018 Out of stock
Attachment Plate
£5.84 £4.87

  44 Screw-Taptite
Screw-Taptite
HA09546 Out of stock
Screw-Taptite
£1.64 £1.37

  46 Screw-HH
Screw-HH
HA09368 Out of stock
Screw-HH
£1.63 £1.36

  48 Bushing
Bushing
HA397016 Out of stock
Bushing
£20.24 £16.87

  49 Seal Shaft
Seal Shaft
HA397041 Out of stock
Seal Shaft
£2.45 £2.04

  51 Friction Disc
Friction Disc
HA397042W Out of stock
Friction Disc
£55.30 £46.08

  52 Cutterblade - 19 Inch
Cutterblade - 19 Inch
HA480149 Out of stock
Cutterblade - 19 Inch
£30.25 £25.21

  53 Piece Cutterbar Distance
Piece Cutterbar Distance
HAHY216008 Out of stock
Piece Cutterbar Distance
£13.22 £11.02

  54 Washer-Spring
Washer-Spring
HA09273 In stock
Washer-Spring
£1.62 £1.35

  55 Screw Hex Hd 3/8 Unf x11/4
Screw Hex Hd 3/8 Unf x11/4
HA09116 Out of stock
Screw Hex Hd 3/8 Unf x11/4
£1.63 £1.36

  58 Rear Axle
Rear Axle
HA397030 Out of stock
Rear Axle
£62.16 £51.80

  65 Wheel Assembly - (Incl. Item 64)
Wheel Assembly - (Incl. Item 64)
HA397014 Out of stock
Wheel Assembly - (Incl. Item 64)
£63.29 £52.74

  66 Washer
Washer
HA09263 Out of stock
Washer
£1.56 £1.30

  69 Hub Cap - Black
Hub Cap - Black
HA397022 Out of stock
Hub Cap - Black
£2.58 £2.15

  100 Decal - Hayter
Decal - Hayter
HA410087 In stock
Decal - Hayter
£4.79 £3.99

  102 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  103 Decal - Caution
Decal - Caution
HA111-0083 Out of stock
Decal - Caution
£2.30 £1.92


Description

Hayter Ranger 48 Push - 397A

Serial No: 397A001001 - 397A099999

Mainframe Assembly - Parts Diagram
