Hayter Ranger 48 AD - 398E (398E270000001 - 398E280999999) - Main Assembly

Hayter Ranger 48 AD - 398E (398E270000001 - 398E280999999) - Main Assembly
Hayter Ranger 48 AD - 398E (398E270000001 - 398E280999999) - Main Assembly

Description

Hayter Ranger 48 Autodrive Mower - 398E

Serial No: 398E270000001 - 398E280999999

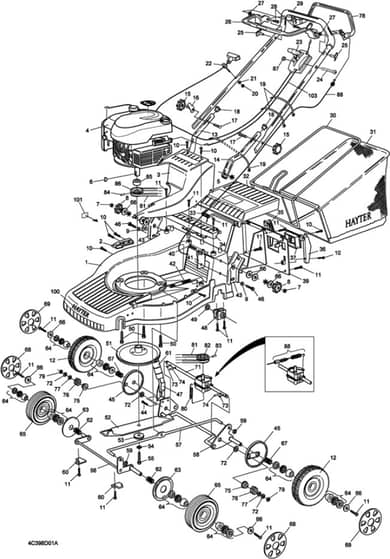

Main Assembly - Parts Diagram

Ref. Img. Part No. Details
  4 Engine-B+S Quantum xts 50
Engine-B+S Quantum xts 50
HA111-0999 Out of stock
Engine-B+S Quantum xts 50
£295.90 £246.58

  5 Decal-Safety
Decal-Safety
HA111-0083 Out of stock
Decal-Safety
£2.30 £1.92

  6 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  8 Knob
Knob
HA397046 Out of stock
Knob
£12.46 £10.38

  9 Washer
Washer
HA09475 Out of stock
Washer
£1.63 £1.36

  11 Screw-Taptite. Pozidriv
Screw-Taptite. Pozidriv
HA09596 Out of stock
Screw-Taptite. Pozidriv
£1.56 £1.30

  12 Wheel Assembly
Wheel Assembly
HA397021 Out of stock
Wheel Assembly
£51.12 £42.60

  15 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  17 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  19 Tie-Cable
Tie-Cable
HAHY3966 Out of stock
Tie-Cable
£1.56 £1.30

  20 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  21 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  24 Setscrew
Setscrew
HA09780 Out of stock
Setscrew
£1.87 £1.56

  25 Pin-Pivot
Pin-Pivot
HA340182 In stock
Pin-Pivot
£1.62 £1.35

  26 Bailarm
Bailarm
HA111-9662 In stock
Bailarm
£17.81 £14.84

  28 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  29 Handlebar Upper
Handlebar Upper
HA341029 Out of stock
Handlebar Upper
£91.08 £75.90

  38 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  40 Bolt - Coach
Bolt - Coach
HA09766 Out of stock
Bolt - Coach
£1.56 £1.30

  41 Attachment Plate
Attachment Plate
HA397018 Out of stock
Attachment Plate
£5.84 £4.87

  44 Screw-Taptite
Screw-Taptite
HA09546 Out of stock
Screw-Taptite
£1.64 £1.37

  46 Screw-HH
Screw-HH
HA09368 Out of stock
Screw-HH
£1.63 £1.36

  48 Bushing
Bushing
HA397016 Out of stock
Bushing
£20.24 £16.87

  49 Seal Shaft
Seal Shaft
HA397041 Out of stock
Seal Shaft
£2.45 £2.04

  51 Friction Disc
Friction Disc
HA397042W Out of stock
Friction Disc
£55.30 £46.08

  52 Cutterblade - 19 Inch
Cutterblade - 19 Inch
HA480149 Out of stock
Cutterblade - 19 Inch
£30.25 £25.21

  53 Spacer-Distance. Cutterbar
Spacer-Distance. Cutterbar
HAHY4014 In stock
Spacer-Distance. Cutterbar
£11.52 £9.60

  54 Washer-Spring
Washer-Spring
HA09273 In stock
Washer-Spring
£1.62 £1.35

  55 Screw Hex Hd 3/8 Unf x11/4
Screw Hex Hd 3/8 Unf x11/4
HA09116 Out of stock
Screw Hex Hd 3/8 Unf x11/4
£1.63 £1.36

  58 Rear Axle
Rear Axle
HA397030 Out of stock
Rear Axle
£62.16 £51.80

  65 Wheel Assembly - (Incl. Item 64)
Wheel Assembly - (Incl. Item 64)
HA397014 Out of stock
Wheel Assembly - (Incl. Item 64)
£63.29 £52.74

  66 Washer
Washer
HA09263 Out of stock
Washer
£1.56 £1.30

  69 Hub Cap - Black
Hub Cap - Black
HA397022 Out of stock
Hub Cap - Black
£2.58 £2.15

  70 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  71 Transmission
Transmission
HA398001 Out of stock
Transmission
£136.51 £113.76

  72 Washer
Washer
HA02575 In stock
Washer
£1.63 £1.36

  74 Pin
Pin
HA398002 Out of stock
Pin
£7.36 £6.13

  75 Lock Washer
Lock Washer
HA398005 Out of stock
Lock Washer
£6.56 £5.47

  76 Gear Wheel
Gear Wheel
HA398007 Out of stock
Gear Wheel
£15.16 £12.63

  77 Support Washer
Support Washer
HA398006 Out of stock
Support Washer
£2.08 £1.73

  78 Lever-Clutch
Lever-Clutch
HA111-1921-03 In stock
Lever-Clutch
£42.52 £35.43

  79 Clip E
Clip E
HA09767 Out of stock
Clip E
£1.56 £1.30

  81 V Belt
V Belt
6079 In stock
V Belt
£8.76 £7.30

  83 Pin Roll
Pin Roll
HA09770 Out of stock
Pin Roll
£1.56 £1.30

  84 Grubscrew
Grubscrew
HA09769 Out of stock
Grubscrew
£1.56 £1.30

  86 Engine Belt Pulley
Engine Belt Pulley
HA398009 Out of stock
Engine Belt Pulley
£42.97 £35.81

  87 Nut-Nyloc
Nut-Nyloc
HA09438 In stock
Nut-Nyloc
£1.62 £1.35

  100 Decal - Hayter
Decal - Hayter
HA398015 Out of stock
Decal - Hayter
£4.37 £3.64

  103 Cable-Engine. Brake
Cable-Engine. Brake
HA111-0997 In stock
Cable-Engine. Brake
£18.23 £15.19

  104 Guide-Cable
Guide-Cable
HA410037 In stock
Guide-Cable
£1.46 £1.22


Description

Hayter Ranger 48 Autodrive Mower - 398E

Serial No: 398E270000001 - 398E280999999

Main Assembly - Parts Diagram
