Hayter R53S - 448F (310000001 - 310999999) - Upper Handle Assy

Name: Hayter R53S - 448F (310000001 - 310999999) - Upper Handle Assy
SKU: R53S 448F07 upper hle assy-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53S - 448F (310000001 - 310999999) - Upper Handle Assy

Description

Hayter R53S - 448F

Serial No: 310000001 - 310999999

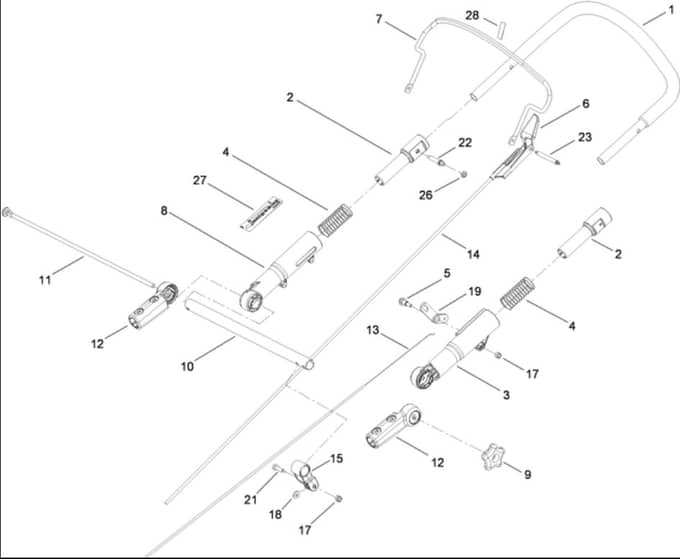

Upper Handle Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA108-0974 Out of stock	Upper Handle Asm	£84.82 £70.68
2	HA112-8754 Out of stock	Sleeve-Inner	£6.66 £5.55
3	HA112-1544 Out of stock	Sleeve-Outer. Lh	£16.49 £13.74
4	HA107-3869 Out of stock	Spring-Compression	£1.37 £1.14
5	HA104-0858 Out of stock	Bolt-Shoulder	£5.12 £4.27
6	HA112-8764 Out of stock	Stop-Pivot	£4.72 £3.93
7	HA110-1819-03 In stock	Bail-Brake	Was £25.76 £21.47 Special Price £17.93 £14.94
8	HA112-1545 Out of stock	Sleeve-Outer. Rh	£16.49 £13.74
9	HA106-4161 Out of stock	Knob-Handle	£4.07 £3.39
10	HA107-3867-03 Out of stock	Tube-Cross	£25.18 £20.98
11	HA107-3871 Out of stock	Rod-Threaded	£19.24 £16.03
12	HA107-3865 Out of stock	Mount-Handle. Lower	£12.41 £10.34
13	HA107-3902 Out of stock	Cable-Traction	£22.26 £18.55
14	HA107-3903 Out of stock	Cable-Brake	£51.06 £42.55
15	HA112-8801 Out of stock	Clamp-Cable	£11.64 £9.70
17	HA3296-73 Out of stock	Nut-Lock. Ni	£3.95 £3.29
18	HA3256-1 Out of stock	Washer-Flat	£0.48 £0.40
19	HA107-3893 Out of stock	Lever-Traction	£3.72 £3.10
21	HA321-5 Out of stock	Screw-HH	£0.47 £0.39
22	HA108-0959 Out of stock	Pin-Handle	£6.53 £5.44
23	HA108-1008 Out of stock	Pin-Bail. Lh	£6.72 £5.60
26	HA108-9378 Out of stock	Retainer-Push On	£1.43 £1.19
28	HA117-4157 Out of stock	Decal-Engine Stop	£193.80 £161.50
