Hayter R48 - 446E (280000001 - 280999999) - Drive Assy

Hayter R48 - 446E (280000001 - 280999999) - Drive Assy
Hayter R48 - 446E (280000001 - 280999999) - Drive Assy

Description

Hayter R48 - 446E

Serial No: 280000001 - 280999999

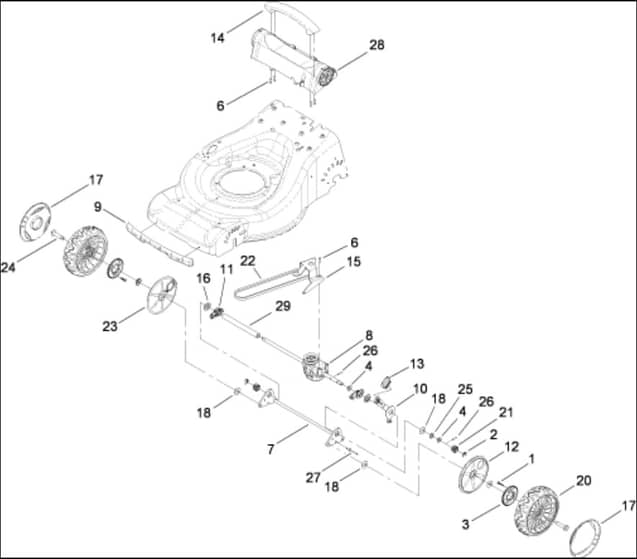

Drive Assy - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Screw-Drive
Screw-Drive
HA27-6260 Out of stock
Screw-Drive
£1.10 £0.92

  2 Ring-Retaining. Clip
Ring-Retaining. Clip
HA65-2720 Out of stock
Ring-Retaining. Clip
£1.48 £1.23

  3 Gear-Wheel. 52T
Gear-Wheel. 52T
HA105-3035 Out of stock
Gear-Wheel. 52T
£19.38 £16.15

  4 Washer-Thrust. Keyed
Washer-Thrust. Keyed
HA112-3911 Out of stock
Washer-Thrust. Keyed
£21.66 £18.05

  6 Screw-Torx. Pan Head
Screw-Torx. Pan Head
HA110-1271 Out of stock
Screw-Torx. Pan Head
£0.74 £0.62

  7 Pivot Bar Asm
Pivot Bar Asm
HA110-7016 Out of stock
Pivot Bar Asm
£41.70 £34.75

  8 Gearbox Asm
Gearbox Asm
HA110-7042 Out of stock
Gearbox Asm
£116.71 £97.26

  9 Bumper-Front
Bumper-Front
HA110-7067 Out of stock
Bumper-Front
£3.60 £3.00

  10 Lever-Hoc. Rear
Lever-Hoc. Rear
HA110-7073 Out of stock
Lever-Hoc. Rear
£4.90 £4.08

  11 Bushing-Camlock
Bushing-Camlock
HA110-7112 Out of stock
Bushing-Camlock
£19.30 £16.08

  12 Cover-Wheel
Cover-Wheel
HA110-7114 Out of stock
Cover-Wheel
£4.06 £3.38

  13 Knob-Hoc
Knob-Hoc
HA110-7125 Out of stock
Knob-Hoc
£4.14 £3.45

  14 Handle-Rear
Handle-Rear
HA110-7155 Out of stock
Handle-Rear
£7.76 £6.47

  15 Bracket-Gear Case
Bracket-Gear Case
HA110-7158 Out of stock
Bracket-Gear Case
£11.32 £9.43

  16 Spacer-Flange
Spacer-Flange
HA110-7171 Out of stock
Spacer-Flange
£1.37 £1.14

  17 Cover-Wheel. Rear
Cover-Wheel. Rear
HA110-7174 Out of stock
Cover-Wheel. Rear
£4.06 £3.38

  18 Washer-Plain
Washer-Plain
HA110-7179 Out of stock
Washer-Plain
£3.32 £2.77

  20 Rear Wheel Asm
Rear Wheel Asm
HA110-7254 Out of stock
Rear Wheel Asm
£27.72 £23.10

  21 Gear-Pinion. 15T
Gear-Pinion. 15T
HA131-5399 Out of stock
Gear-Pinion. 15T
£4.18 £3.48

  22 V-Belt
V-Belt
HA110-9429 In stock
V-Belt
£19.79 £16.49

  23 Washer-Stepped
Washer-Stepped
HA614426 Out of stock
Washer-Stepped
£3.34 £2.78

  24 Bolt-Shoulder
Bolt-Shoulder
HA614650 Out of stock
Bolt-Shoulder
£4.69 £3.91

  25 Washer-Thrust
Washer-Thrust
HA110-7191 Out of stock
Washer-Thrust
£1.97 £1.64

  26 Pin-Roll
Pin-Roll
HA110-7192 Out of stock
Pin-Roll
£0.74 £0.62

  27 Rivet-Pop
Rivet-Pop
HA110-7193 Out of stock
Rivet-Pop
£3.60 £3.00

  28 Mount-Handle
Mount-Handle
HA110-7153 Out of stock
Mount-Handle
£38.88 £32.40

  29 Spacer
Spacer
HA115-3850 Out of stock
Spacer
£5.84 £4.87


Description

Hayter R48 - 446E

Serial No: 280000001 - 280999999

Drive Assy - Parts Diagram
