Hayter R48 - 446E (280000001 - 280999999) - Cylinder Assy B&S 126T02-1841-B1

Name: Hayter R48 - 446E (280000001 - 280999999) - Cylinder Assy B&S 126T02-1841-B1
SKU: R48 446E01 cylinder assy bs 126t02 1841 b1-group
Price: 2.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R48 - 446E (280000001 - 280999999) - Cylinder Assy B&S 126T02-1841-B1

Description

Hayter R48 - 446E

Serial No: 280000001 - 280999999

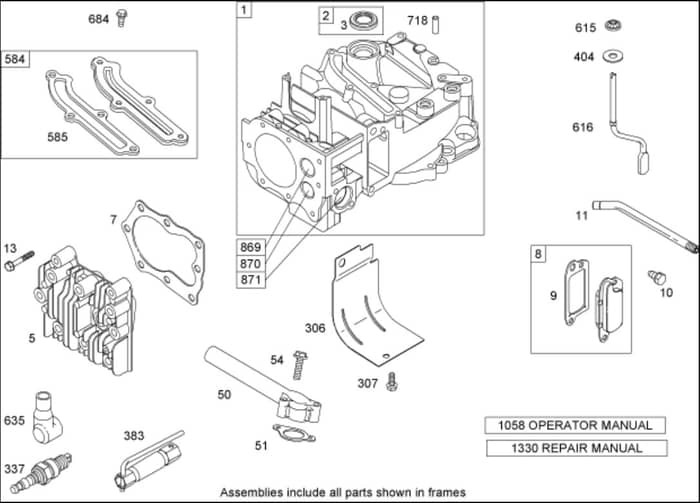

Cylinder Assy Briggs & Stratton 126T02-1841-B1 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BP592645 Out of stock	Cylinder Asm	£133.14 £110.95
2	BP796961 Out of stock	Bushing And Seal Kit	£22.12 £18.43
3	BP299819S In stock	Seal-Oil (Magneto Side)	£5.12 £4.27
5	BP594989 Out of stock	Head-Cylinder	£55.80 £46.50
7	BP692249 In stock	Gasket-Head. Cylinder	£11.14 £9.28
8	BP590395 In stock	Breather Asm	£13.02 £10.85
9	BP699833 Out of stock	Gasket-Breather	£4.56 £3.80
10	BP691125 Out of stock	Screw (Breather Asm)	£4.98 £4.15
11	BP691781 Out of stock	Tube-Breather	£11.20 £9.33
13	BP690912 Out of stock	Screw (Cylinder Head)	£5.40 £4.50
51	BP272199S Out of stock	Gasket-Intake	£5.46 £4.55
337	BP992300C In stock	Spark Plug	£3.16 £2.63
383	BP691043 In stock	Wrench-Spark Plug	£7.42 £6.18
383	BP89838S Out of stock	Wrench-Spark Plug	£5.74 £4.78
404	BP690272 In stock	Washer (Governor Crank)	£4.28 £3.57
584	BP697734 Out of stock	Cover-Passage. Breather	£7.56 £6.30
615	BP690340 Out of stock	Retainer-Shaft. Governor	£5.32 £4.43
616	BP698801 Out of stock	Crank-Governor	£10.30 £8.58
684	BP690345 Out of stock	Screw (Breather Passage Cover)	£4.62 £3.85
718	BP690959 Out of stock	Pin-Locating	£5.32 £4.43
718	BP692407 Out of stock	Pin-Locating	£8.96 £7.47
869	BP691155 Out of stock	Seat-Valve (Intake)	£8.62 £7.18
870	BP690380 Out of stock	Seat-Valve (Exhaust)	£8.41 £7.01
871	BP262001 Out of stock	Bushing-Guide (Exhaust)	£10.30 £8.58
871	BP63709 Out of stock	Bushing-Guide (Intake)	£12.74 £10.62
