Hayter R48 - 446E (280000001 - 280999999) - Carburetor Assy B&S 126T02-1841-B1

Name: Hayter R48 - 446E (280000001 - 280999999) - Carburetor Assy B&S 126T02-1841-B1
SKU: R48 446E01 carburetor assy bs 126t02 1841 b1-group
Price: 3.85 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R48 - 446E (280000001 - 280999999) - Carburetor Assy B&S 126T02-1841-B1

Description

Hayter R48 - 446E

Serial No: 280000001 - 280999999

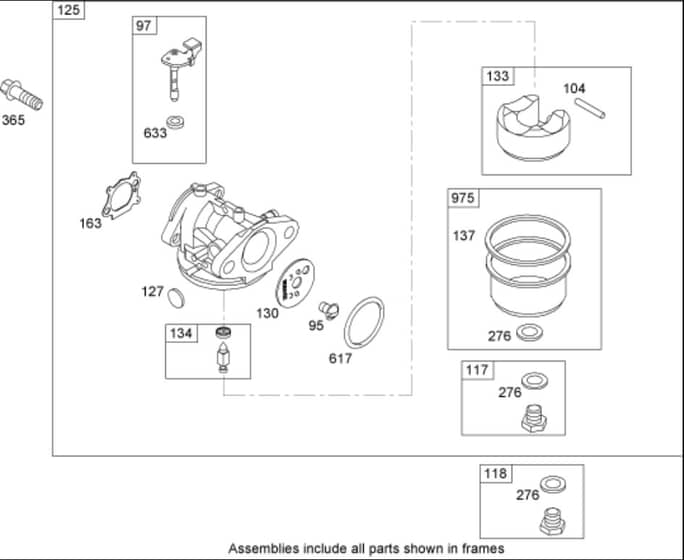

Carburetor Assy Briggs & Stratton 126T02-1841-B1 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
95	BP691636 Out of stock	Screw (Throttle Valve)	£4.98 £4.15
97	BP696565 Out of stock	Shaft-Throttle	£12.32 £10.27
104	BP797622 Out of stock	Pin-Hinge. Float	£5.04 £4.20
117	BP498978 Out of stock	Jet-Main (Std)	£8.02 £6.68
118	BP494870 Out of stock	Jet-Main (High Altitude)	£12.86 £10.72
125	BP799868 Out of stock	Carburetor	£42.08 £35.07
127	BP694468 Out of stock	Plug-Welch	£6.10 £5.08
130	BP696564 Out of stock	Valve-Throttle	£6.16 £5.13
133	BP398187 Out of stock	Float-Carburetor	£14.92 £12.43
134	BP398188 In stock	Needle And Seat Kit	£9.88 £8.23
137	BP693981 In stock	Gasket-Bowl. Float	£7.14 £5.95
163	BP795629 In stock	Gasket-Cleaner. Air	£4.62 £3.85
276	BP271716 In stock	Washer-Sealing	£4.70 £3.92
617	BP270344S In stock	Seal. O-Ring (Intake Manifold)	£6.30 £5.25
633	BP691321 Out of stock	Seal-Shaft. Choke Throttle	£5.18 £4.32
975	BP796611 Out of stock	Bowl-Float	£11.48 £9.57
