Hayter Osprey 46 - 611B (320000001 - 320999999) - Handle Bar - Controls Assembly

Name: Hayter Osprey 46 - 611B (320000001 - 320999999) - Handle Bar - Controls Assembly
SKU: 46cm lawn mower 611b handle bar controls assembly-group
Price: 0.45 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Osprey 46 - 611B (320000001 - 320999999) - Handle Bar - Controls Assembly

Description

Hayter Osprey 46 - 611B

Serial No: 320000001 - 320999999

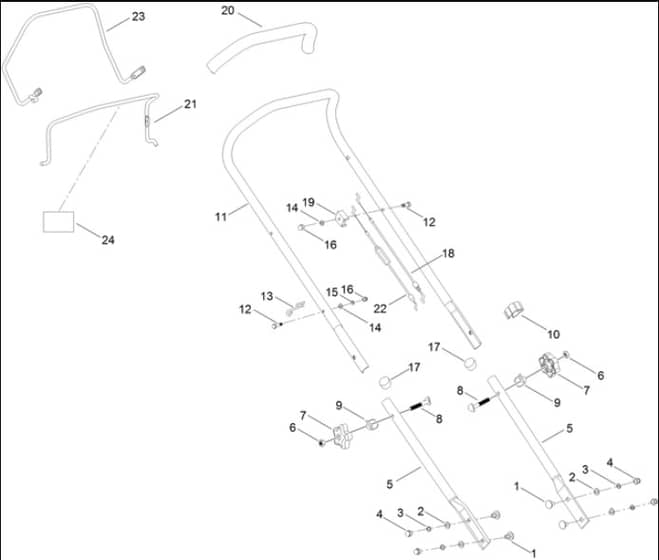

Handle Bar - Controls Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA134-0219 Out of stock	Bolt	£1.31 £1.09
2	HA09475 Out of stock	Washer	£1.63 £1.36
3	HA03469 Out of stock	Washer-Spring	£1.63 £1.36
4	HA134-0222 Out of stock	Nut-Lid	£1.31 £1.09
5	HA134-0223 Out of stock	Handlebar-Lower	£32.41 £27.01
6	HA134-0224 Out of stock	Nut-Hex	£0.54 £0.45
7	HA134-0225 In stock	Knob-Rotary	£1.45 £1.21
8	HA134-0226 In stock	Bolt-Flat Head	£2.24 £1.87
9	HA134-0227 In stock	Washer-Curve	£1.15 £0.96
10	HA134-0228 Out of stock	Cable Clamp	£1.15 £0.96
11	HA134-0229 Out of stock	Handlebar-Upper	£49.01 £40.84
12	HA134-0230 Out of stock	Bolt-HH. Flange	£1.31 £1.09
13	HA134-0231 Out of stock	Hook-Cable	£3.28 £2.73
14	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
15	HA09474 Out of stock	Washer-Spring	£1.56 £1.30
16	HA134-0234 Out of stock	Nut-Lid	£1.15 £0.96
17	HA134-0235 Out of stock	Plug-Tube	£1.15 £0.96
19	HA134-0237 In stock	Cable-Block. Fixed	£1.31 £1.09
20	HA134-0238 Out of stock	Grip-Handle	£7.14 £5.95
21	HA134-0239 Out of stock	Lever-Engine	£3.79 £3.16
22	HA134-0240 In stock	Cable-Clutch	£11.75 £9.79
23	HA134-0241 Out of stock	Lever-Clutch. Gearbox	£16.27 £13.56
24	HAH295159 Out of stock	Decal-Stop	£0.96 £0.80
