Hayter Motif 48 Push - 438H (316000106 - 316999999) - Mainframe

Name: Hayter Motif 48 Push - 438H (316000106 - 316999999) - Mainframe
SKU: motif 48 push 438h01 mainframe-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Motif 48 Push - 438H (316000106 - 316999999) - Mainframe

Description

Hayter Motif 48 Push - 438H

Serial No: 316000106 - 316999999

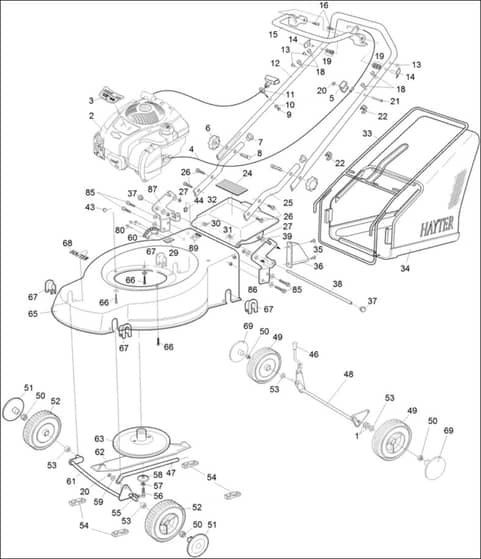

Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HAHY09485	Washer-Plain	Out of stock	£1.72 £1.43
3	HA111-7371	Decal Engine Code 438H & 439H	Out of stock	£7.50 £6.25
4	HA111-3342	Cable Engine Brake	Out of stock	£13.01 £10.84
5	HA411035	Cable Holder	In stock	£2.04 £1.70
6	HA480088	Knob-Handlebar	In stock	£5.63 £4.69
8	HAHY226024	Bolt-Handlebar	In stock	£1.67 £1.39
9	HA09544	Nut-Nyloc	Out of stock	£1.56 £1.30
10	HA09472	Washer-Plain	Out of stock	£1.55 £1.29
12	HA305145W	Handlebar - Upper	In stock	£63.12 £52.60
13	HA341033	Fastener-Drive	In stock	£1.69 £1.41
14	HA340182	Pin-Pivot	Out of stock	£1.61 £1.34
15	HA111-9662	Lever-Engine	In stock	£18.71 £15.59
16	HA09687	Screw	In stock	£1.69 £1.41
20	HA09438	Nut-Nyloc	In stock	£1.61 £1.34
21	HAZBH1F040U	Screw-HH	Out of stock	£2.02 £1.68
22	HA410037	Guide-Cable	In stock	£1.46 £1.22
24	HA111-0083	Decal-Safety	Out of stock	£2.41 £2.01
25	HA432001W	Handlebar - Lower	Out of stock	£11.63 £9.69
26	HA09368	Screw-HH	Out of stock	£1.72 £1.43
27	HA09441	Nut-Hex. Ni	Out of stock	£1.69 £1.41
29	HA320006	Decal-Hoc	In stock	£1.69 £1.41
30	HA111-7655	Spring Torsion Rear Defl. Rh	Out of stock	£2.70 £2.25
31	HA111-7656	Spring Torsion Rear Defl. Lh	Out of stock	£2.84 £2.37
32	HA111-7653	Rear Deflector 48	Out of stock	£22.74 £18.95
33	HA433010W	Frame - Grassbag	Out of stock	£29.83 £24.86
34	HA433003	Fabric - Grassbag	Out of stock	£56.46 £47.05
36	HA432021W	Plate - Discharge	Out of stock	£10.93 £9.11
37	HA111-7657	Starlux End Cap 6mm	Out of stock	£1.50 £1.25
38	HA433007	Pin - Deflector	Out of stock	£4.58 £3.82
39	HA09270	Washer-Plain	Out of stock	£1.69 £1.41
43	HA1662	Key-Woodruff	In stock	£1.55 £1.29
44	HA111-7654	Clip Belt Cover	Out of stock	£1.50 £1.25
46	HA111-7682	Knob Hoc-Griff	Out of stock	£3.49 £2.91
47	HA111-7492-03	Connecting Rod 48 Push	Out of stock	£25.34 £21.12
48	HA111-7504-03	Axle Rear 48 Push W/A	Out of stock	£59.51 £49.59
49	HA111-7662	Wheel Rear 200 Waffel	Out of stock	£18.10 £15.08
50	HA111-7664	M12 Nyloc Extra Thin	Out of stock	£3.61 £3.01
51	HA111-7665	Trim Wheel 180 Black	Out of stock	£7.19 £5.99
52	HA111-7661	Wheel Front 180 Waffel	Out of stock	£15.88 £13.23
53	HA111-7659	Axle Spacer	Out of stock	£1.50 £1.25
54	HA111-7681	Axle Retainer	In stock	£1.50 £1.25
55	HA111-7678	M6 x 6 Shoulder Screw	Out of stock	£1.45 £1.21
56	HA09118	Bolt-HH	Out of stock	£1.85 £1.54
57	HA09273	Washer-Spring	In stock	£1.61 £1.34
58	HAHY4014	Spacer-Distance. Cutterbar	Out of stock	£12.10 £10.08
59	HA111-7679	Washer-Plain	In stock	£0.37 £0.31
60	HA111-9725-03	Plate Ratchet Hoc	Out of stock	£33.13 £27.61
61	HA433014W	Axle - Front	Out of stock	£40.37 £33.64
62	HA111-5013	Cutterbar 19"	Out of stock	£30.61 £25.51
63	HA397042W	Friction Disc W/A	Out of stock	£58.07 £48.39
65	HA111-0962-08	Deck - Mainframe 48	Out of stock	£287.28 £239.40
67	HA111-7680	Axle Support	In stock	£2.58 £2.15
68	HA410087	Decal	In stock	£5.52 £4.60
69	HA111-7666	Trim Wheel 200 Black	Out of stock	£7.19 £5.99
80	HAMU710259	Rivet-Pop	Out of stock	£3.08 £2.57
85	HA111-6759	Screw Taptite M10 x 25 Hex W Hd	Out of stock	£3.95 £3.29
86	HA111-0964-03	Bracket Handlebar Lh	Out of stock	£16.67 £13.89
87	HA111-0965-03	Bracket Handlebar Rh	Out of stock	£16.67 £13.89
89	HA111-7722	Made In Britain Decal	Out of stock	£1.52 £1.27
