Hayter Motif 48 AD - 439H (316000106 - 316999999) - Mainframe

Description

Hayter Motif 48 Autodrive Mower - 439H

Serial No: 316000106 - 316999999

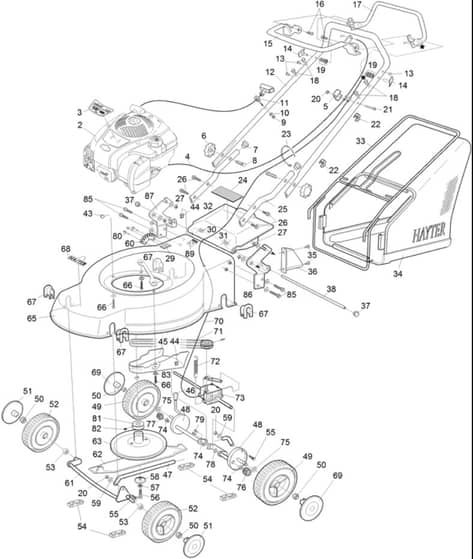

Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HA111-7371 Out of stock	Decal Engine Code 438H & 439H	£7.14 £5.95
4	HA111-3342 Out of stock	Cable Engine Brake	£12.38 £10.32
5	HA411035 In stock	Cable Holder	£1.94 £1.62
6	HA480088 In stock	Knob-Handlebar	£5.35 £4.46
8	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
9	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
10	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
12	HA305145W In stock	Handlebar - Upper	£64.73 £53.94
13	HA341033 In stock	Fastener-Drive	£1.62 £1.35
14	HA340182 In stock	Pin-Pivot	£1.62 £1.35
15	HA111-9662 In stock	Lever-Engine	£17.81 £14.84
16	HA09687 In stock	Screw	£1.62 £1.35
17	HA111-1921-03 Out of stock	Lever-Clutch	£42.52 £35.43
20	HA09438 In stock	Nut-Nyloc	£1.62 £1.35
21	HAZBH1F040U Out of stock	Screw-HH	£1.86 £1.55
22	HA410037 In stock	Guide-Cable	£1.46 £1.22
23	HAHY3966 Out of stock	Tie-Cable	£1.56 £1.30
24	HA111-0083 Out of stock	Decal-Safety	£2.30 £1.92
25	HA432001W Out of stock	Handlebar - Lower	£11.06 £9.22
26	HA09368 Out of stock	Screw-HH	£1.63 £1.36
27	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
29	HA320006 In stock	Decal-Hoc	£1.62 £1.35
30	HA111-7655 Out of stock	Spring Torsion Rear Defl. Rh	£2.70 £2.25
31	HA111-7656 Out of stock	Spring Torsion Rear Defl. Lh	£2.70 £2.25
32	HA111-7652 Out of stock	Rear Deflector 48	£22.40 £18.67
33	HA433010W Out of stock	Frame - Grassbag	£28.40 £23.67
34	HA433003 Out of stock	Fabric - Grassbag	£53.77 £44.81
36	HA432021W Out of stock	Plate - Discharge	£10.40 £8.67
37	HA111-7657 In stock	Starlux End Cap 6mm	£1.43 £1.19
38	HA433007 Out of stock	Pin - Deflector	£4.37 £3.64
43	HA1662 In stock	Key-Woodruff	£1.46 £1.22
44	HA111-7654 Out of stock	Clip Belt Cover	£1.43 £1.19
45	HA111-7669 Out of stock	Belt Cover 48	£14.33 £11.94
46	HA111-7682 Out of stock	Knob Hoc-Griff	£3.32 £2.77
47	HA434003W Out of stock	Connecting Rod 48	£12.85 £10.71
48	HA434014W Out of stock	Axle - Rear 48 Rh	£38.84 £32.37
48	HA434015W Out of stock	Axle - Rear 48 Lh	£43.01 £35.84
50	HA111-7664 Out of stock	M12 Nyloc Extra Thin	£3.44 £2.87
51	HA111-7665 Out of stock	Trim Wheel 180 Black	£6.85 £5.71
52	HA111-7661 Out of stock	Wheel Front 180 Waffel	£15.12 £12.60
53	HA111-7659 Out of stock	Axle Spacer	£1.43 £1.19
54	HA111-7681 In stock	Axle Retainer	£1.43 £1.19
55	HA111-7678 Out of stock	M6 x 6 Shoulder Screw	£1.39 £1.16
56	HA09118 Out of stock	Bolt-HH	£1.75 £1.46
57	HA09273 Out of stock	Washer-Spring	£1.62 £1.35
58	HAHY4014 Out of stock	Spacer-Distance. Cutterbar	£11.52 £9.60
59	HA111-7679 Out of stock	Washer-Plain	£0.36 £0.30
60	HA111-9725-03 Out of stock	Plate Ratchet Hoc	£31.55 £26.29
61	HA433014W Out of stock	Axle - Front	£38.45 £32.04
62	HA111-5013 Out of stock	Cutterbar 19"	£30.61 £25.51
63	HA397042W Out of stock	Friction Disc W/A	£55.30 £46.08
65	HA111-0962-08 Out of stock	Deck - Mainframe 48	£334.36 £278.63
67	HA111-7680 Out of stock	Axle Support	£2.46 £2.05
68	HA410087 In stock	Decal	£4.79 £3.99
69	HA111-7666 Out of stock	Trim Wheel 200 Black	£6.85 £5.71
70	HA111-3363 In stock	Clutch Cable	£26.64 £22.20
71	HA111-7667 Out of stock	Belt Drive 48	£9.94 £8.28
72	HA111-7673 Out of stock	Spring Tension - Gearbox	£2.39 £1.99
73	HA111-7671 Out of stock	Gearbox 48	£126.25 £105.21
74	HA111-7674 Out of stock	Bush Flanged 325Mks	£3.54 £2.95
76	HA111-7676 Out of stock	Gear Drive Assy Lh	£34.16 £28.47
77	HA111-7677 Out of stock	Gear Drive Assy Rh	£34.16 £28.47
78	HA111-7660 Out of stock	Washer 13 Din 9021-St	£1.43 £1.19
79	HA111-9000 Out of stock	Screw Taptite M6 x 12 W/Hd	£0.83 £0.69
80	HAMU710259 Out of stock	Rivet-Pop	£3.08 £2.57
81	HA434001 Out of stock	Pulley Drive	£26.04 £21.70
82	HA09619 Out of stock	Grubscrew	£1.63 £1.36
83	HA111-7658 Out of stock	Washer 10.5 Dia x 30 O/D x 2.5	£1.39 £1.16
85	HA111-6759 Out of stock	Screw Taptite M10 x 25 Hex W Hd	£3.77 £3.14
86	HA111-0964-03 Out of stock	Bracket Handlebar Lh	£15.88 £13.23
87	HA111-0965-03 Out of stock	Bracket Handlebar Rh	£15.88 £13.23
89	HA111-7722 Out of stock	Made In Britain Decal	£1.45 £1.21
