Hayter Motif 48 AD - 434C (434C001001 - 434C099999) - Main Assembly

Description

Hayter Motif 48 Autodrive Mower - 434C

Serial No: 434C001001 - 434C099999

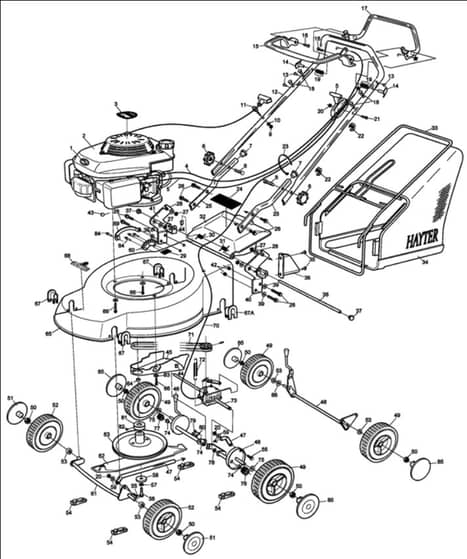

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA410064 Out of stock	Decal - Blade Of Grass	£9.37 £7.81
3	HA433009 Out of stock	Decal - Engine	£4.82 £4.02
5	HA432006 Out of stock	Control Throttle	£25.31 £21.09
6	HA480088 In stock	Knob-Handlebar	£5.35 £4.46
8	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
9	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
10	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
12	HA305145W In stock	Handlebar - Upper	£64.73 £53.94
13	HA341033 In stock	Fastener-Drive	£1.62 £1.35
14	HA340182 In stock	Pin-Pivot	£1.62 £1.35
15	HA111-9662 In stock	Lever-Engine	£17.81 £14.84
16	HA09687 In stock	Screw	£1.62 £1.35
17	HA111-1921-03 Out of stock	Lever-Clutch	£42.52 £35.43
20	HA09438 In stock	Nut-Nyloc	£1.62 £1.35
21	HA09780 In stock	Setscrew	£1.87 £1.56
22	HA410037 In stock	Guide-Cable	£1.46 £1.22
23	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
24	HA111-0083 Out of stock	Decal - Rear Deflector	£2.30 £1.92
25	HA432001W Out of stock	Handlebar - Lower	£11.06 £9.22
26	HA09368 Out of stock	Screw-HH	£1.63 £1.36
27	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
28	HA09475 Out of stock	Washer	£1.63 £1.36
29	HA320006 In stock	Decal-Hoc	£1.62 £1.35
30	HA111-7655 Out of stock	Spring - Rear Deflector Rh	£2.70 £2.25
31	HA111-7656 Out of stock	Spring - Rear Deflector Lh	£2.70 £2.25
32	HA111-7653 Out of stock	Deflector - Rear	£21.67 £18.06
33	HA433010W Out of stock	Frame - Grassbag	£28.40 £23.67
34	HA433003 Out of stock	Fabric - Grassbag	£53.77 £44.81
36	HA432021W Out of stock	Plate - Discharge	£10.40 £8.67
37	HA111-7657 In stock	End Cap - M8 Starlux	£1.43 £1.19
38	HA433007 Out of stock	Pin - Deflector	£4.37 £3.64
39	HA09270 Out of stock	Washer-Plain	£1.62 £1.35
40	HA433017W Out of stock	Bracket - Handlebar Lh	£19.96 £16.63
41	HA433018W Out of stock	Bracket - Handlebar Rh	£19.96 £16.63
42	HA111-7683 Out of stock	Nut-Rivet	£1.45 £1.21
43	HA1662 In stock	Key-Woodruff	£1.46 £1.22
44	HA111-7654 Out of stock	Clip - Belt Cover	£1.43 £1.19
45	HA111-7669 Out of stock	Cover - Belt	£14.33 £11.94
46	HA111-7682 Out of stock	Knob - Hoc	£3.32 £2.77
47	HA434003W Out of stock	Connecting Rod 48	£12.85 £10.71
48	HA110.004.410W Out of stock	Axle - Rear 48	£42.55 £35.46
49	HA111-7663 In stock	Wheel - Rear 200mm	£22.32 £18.60
50	HA111-7664 Out of stock	Nut - M12 Nyloc	£3.44 £2.87
51	HA111-7665 Out of stock	Trim - Front Wheel 180mm	£6.85 £5.71
52	HA111-7661 Out of stock	Wheel - Front 180mm	£15.12 £12.60
53	HA111-7659 Out of stock	Spacer Axle	£1.43 £1.19
54	HA111-7681 In stock	Retainer - Axle	£1.43 £1.19
55	HA111-7678 Out of stock	Screw - Shoulder M6 x 6	£1.39 £1.16
56	HA09122 In stock	Bolt-Unf	£1.62 £1.35
57	HA09273 Out of stock	Washer-Spring	£1.62 £1.35
58	HA4014 Out of stock	Drag Plate	£11.52 £9.60
59	HA111-7679 Out of stock	Washer	£0.36 £0.30
61	HA433014W Out of stock	Axle - Front	£38.45 £32.04
62	HA111-5013 Out of stock	Cutterbar 19"	£30.61 £25.51
63	HA397042W Out of stock	Friction Disc	£55.30 £46.08
64	HA434005 Out of stock	Spacer	£7.43 £6.19
65	HA110.004.382V Out of stock	Deck - Mainframe 48	£338.45 £282.04
67	HA111-7680 Out of stock	Axle Support	£2.46 £2.05
68	HA410087 In stock	Decal - Hayter	£4.79 £3.99
70	HA434002 In stock	Cable- Clutch A/D	£26.27 £21.89
71	HA111-7667 Out of stock	Belt Drive	£9.94 £8.28
72	HA111-7673 Out of stock	Spring - Tension Gearbox	£2.39 £1.99
73	HA111-7671 Out of stock	Gearbox 48	£126.25 £105.21
74	HA111-7674 Out of stock	Bish - Flanged	£3.54 £2.95
76	HA111-7676 Out of stock	Gear Drive Assembly Lh	£34.16 £28.47
77	HA111-7677 Out of stock	Gear Drive Assembly Rh	£34.16 £28.47
78	HA111-7660 Out of stock	Washer 13mm Dia	£1.43 £1.19
79	HA09361 Out of stock	Screw-HH	£1.40 £1.17
81	HA434001 Out of stock	Pulley Drive	£26.04 £21.70
82	HA09769 Out of stock	Grubscrew	£1.56 £1.30
83	HA111-7658 Out of stock	Washer 10.5mm Dis	£1.39 £1.16
84	HAMU710259 Out of stock	Rivet-Pop	£3.08 £2.57
85	HA111-7666 Out of stock	Trim - Rear Wheel 200mm	£6.85 £5.71
