Hayter Hunter 41 Push - 300L (300L001251 - 300L099999) - Upper Mainframe Diagram

Name: Hayter Hunter 41 Push - 300L (300L001251 - 300L099999) - Upper Mainframe Diagram
SKU: hunter 41 push psei773 upper mainframe diagram-group
Price: 0.98 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Hunter 41 Push - 300L (300L001251 - 300L099999) - Upper Mainframe Diagram

Description

Hayter Hunter 41 - Push Mower - 300L

Serial No: 300L001251 - 300L099999

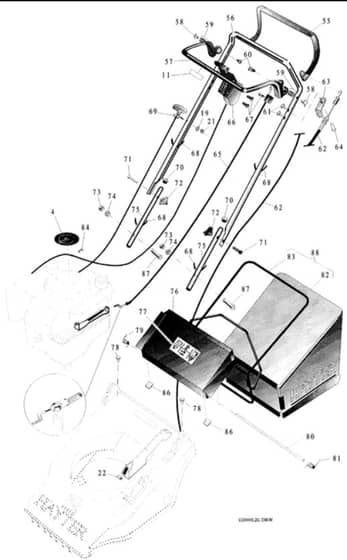

Upper Mainframe Diagram - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA1662 In stock	Key-Woodruff	£1.46 £1.22
6	HA09596 Out of stock	Screw-Taptite. Pozidriv	£1.56 £1.30
7	HA305112 In stock	Handle Height Adj.	£14.88 £12.40
10	HA305113 Out of stock	Label (Height Of Cut)	£3.23 £2.69
12	HA410087 In stock	Decal Hayter Royal Warrant	£5.52 £4.60
15	HA300066 In stock	Trigger Height Adj	£8.14 £6.78
16	HA300067 In stock	Spring	£1.80 £1.50
18	HA300070 In stock	Spring-Compensating	£11.50 £9.58
19	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
20	HA300137 Out of stock	Pillar	£10.97 £9.14
21	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
35	HA02385 In stock	Grip Fix	£1.56 £1.30
41	HA397042W Out of stock	Friction Disc W/A	£55.30 £46.08
42	HAHY201026 In stock	Cutterbar 16"	£29.52 £24.60
43	HA4014 Out of stock	Drag Plate	£11.52 £9.60
45	HA09273 In stock	Washer-Spring	£1.62 £1.35
46	HA09118 Out of stock	Bolt-HH	£1.75 £1.46
47	HA300104 In stock	Connecting Rod	£7.07 £5.89
48	HA09546 Out of stock	Screw-Taptite	£1.64 £1.37
50	HA4486 Out of stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.18 £0.98
51	HA300153 In stock	Wheel 6" C/W 1/2" Ball Bearing	£20.28 £16.90
52	HA300111 Out of stock	Front Axle Welded Assy	£60.16 £50.13
55	HA300155 Out of stock	Hub Cap	£5.45 £4.54
56	HA305145W In stock	Handlebar Upper	£64.73 £53.94
57	HA111-9662 In stock	Lever-Engine	£17.81 £14.84
58	HA340182 In stock	Pin-Pivot	£1.62 £1.35
60	HA09687 In stock	Screw	£1.62 £1.35
68	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
71	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
72	HA226013 In stock	Triangular Handwheel	£6.80 £5.67
73	HAHY234051 In stock	Cap-Nut	£1.56 £1.30
74	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
76	HA300050 Out of stock	Deflector	£18.20 £15.17
77	HA111-0083 Out of stock	Decal - Caution	£2.30 £1.92
78	HA09575 In stock	Screw-Taptite	£1.62 £1.35
80	HA300051 Out of stock	Rod Pivot Deflector	£7.01 £5.84
82	HA300147 Out of stock	Grassbag Fabric	£41.40 £34.50
84	HAMU42189 Out of stock	Rope Stop	£5.00 £4.17
87	HA09379 Out of stock	Bolt-Coach	£1.62 £1.35
89	HAHY300154 In stock	Bearing 1/2" Ball.Uralan Wheel	£3.72 £3.10
90	HA320006 In stock	Decal-Hoc	£1.62 £1.35
