Hayter Heritage H19-40 - 146R - (146R001001 - 146R099999)
Hayter Heritage H19-40 - 146R (146R001001 - 146R099999) - Frame Assembly 02

Hayter Heritage H19-40 - 146R (146R001001 - 146R099999) - Frame Assembly 02

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage H19-40 - 146R (146R001001 - 146R099999) - Frame Assembly 02

Hayter Heritage H19-40 - 146R (146R001001 - 146R099999) - Frame Assembly 02

Description

Hayter Heritage H19-40 - 146R

Serial No: 146R001001 - 146R099999

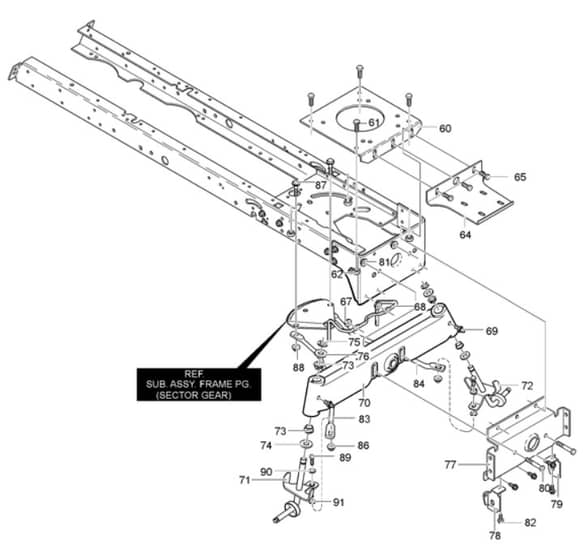

Frame Assembly 02 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	67		HAMU15X79 Out of stock	Nut. Flange		£3.14 £2.62
	69		HAMU706 Out of stock	Zerk. Grease Fitting		£2.86 £2.38
	75		HAMU11X3 Out of stock	E-Ring		£4.10 £3.42
	76		BP17X195MA Out of stock	Washer		£4.81 £4.01
	77		HAMU94007E701 Out of stock	Axle. Hanger		£43.10 £35.92
	81		HAMU15X88 Out of stock	Nut		£3.95 £3.29
	82		HAMU26X249 Out of stock	Screw		£2.56 £2.13
	88		HAMU15X84 In stock	Nut. Flange		£4.16 £3.47
	89		HAMU1X111 Out of stock	Bolt. Hex		£3.00 £2.50
	91		HAMU17X53 Out of stock	Washer		£2.35 £1.96

Description

Hayter Heritage H19-40 - 146R

Serial No: 146R001001 - 146R099999

Frame Assembly 02 - Parts Diagram
