Hayter Heritage H15-40 - 145S - (145S001001 - 145S099999)
Hayter Heritage H15-40 - 145S (145S001001 - 145S099999) - Motion Drive Assembly

Hayter Heritage H15-40 - 145S (145S001001 - 145S099999) - Motion Drive Assembly

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage H15-40 - 145S (145S001001 - 145S099999) - Motion Drive Assembly

Hayter Heritage H15-40 - 145S (145S001001 - 145S099999) - Motion Drive Assembly

Description

Hayter Heritage H15-40 - 145S

Serial No: 145S001001 - 145S099999

Motion Drive Assembly - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	6		BP26X216MA Out of stock	Screw. 5/16-18x.75 Wahhtap		£5.74 £4.78
	14		HAMU1X145 Out of stock	Screw		£5.45 £4.54
	36		BP17X195MA In stock	Flatwasher. .765x1.81x.059		£4.81 £4.01
	37		HA09289 Out of stock	Washer. Flat .755Id		£1.75 £1.46
	40		BP690409MA Out of stock	Pulley		£19.12 £15.93

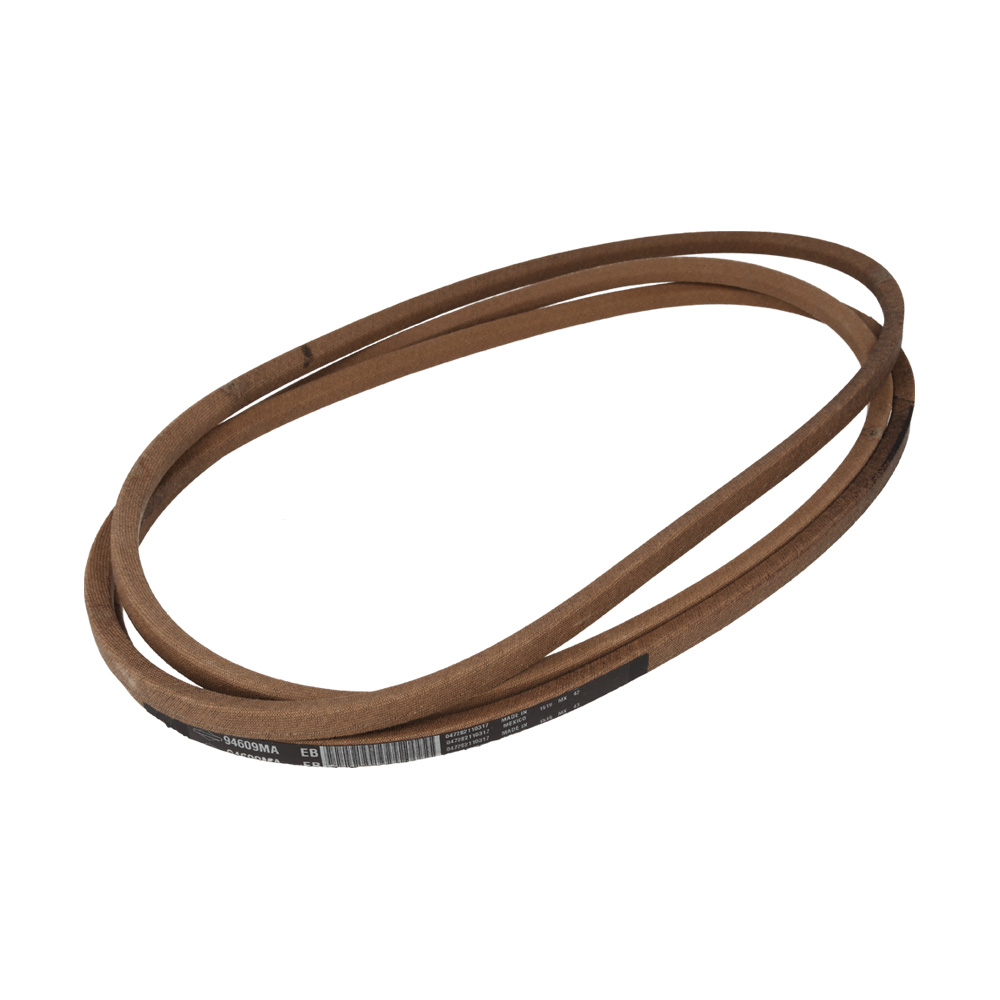

	42		BP94609MA In stock	Belt		£87.48 £72.90
	48		HAMU11X3 Out of stock	E-Ring		£4.10 £3.42
	56		BP094618MA Out of stock	Cap. Hub		£3.91 £3.26
	64		HAMU15X79 Out of stock	Nut . 5/16-18 Hexwdfllk Whiz		£3.14 £2.62
	68		HAMU94798 Out of stock	Pad. Speed Control Pedal		£25.20 £21.00

Description

Hayter Heritage H15-40 - 145S

Serial No: 145S001001 - 145S099999

Motion Drive Assembly - Parts Diagram
