Hayter Heritage H15-40 - 145S (145S001001 - 145S099999) - Deck Assembly 01

Description

Hayter Heritage H15-40 - 145S

Serial No: 145S001001 - 145S099999

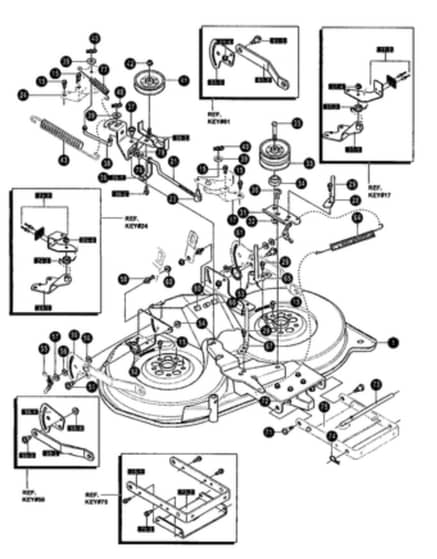

Deck Assembly 01 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
21	HAMU690021 Out of stock	Link. Brake Lh	£12.35 £10.29
23	BP021920ZMA Out of stock	Nut. Adjust	£21.43 £17.86
31	HAMU94261E717 Out of stock	Arm. Double Idler	£48.66 £40.55
37	HAMU9X39 Out of stock	Bolt. .50x.75 HHsh 3/8-16	£4.30 £3.58
41	HAMU94280 Out of stock	Pulley. V Idler 4"	£103.96 £86.63
53	BP166X43MA Out of stock	Spring. Torsion	£5.44 £4.53
55	BP095004MA Out of stock	Wingnut. 5/16-18	£13.32 £11.10
56	HAMU94137 Out of stock	Pad. Friction	£4.78 £3.98
71	HAMU9X51 Out of stock	Bolt. Shoulder	£4.63 £3.86
72	HAMU15X84 In stock	Nut.3/8-16 Hwdfllk Mack	£4.16 £3.47
173	HAMU710110 Out of stock	Spring. Torsion	£2.21 £1.84
244	HAMU15X88 Out of stock	Nut	£3.95 £3.29
363	HAMU94298 Out of stock	Idler Arm Assembly	£44.18 £36.82
613	HAMU9X52 Out of stock	Shoulder Bolt	£7.49 £6.24
