Hayter Heritage 13-30 - 131B (131B001001 - 131B099999) - Motion Drive

Description

Hayter Heritage 13-30 - 131B

Serial No: 131B001001 - 131B099999

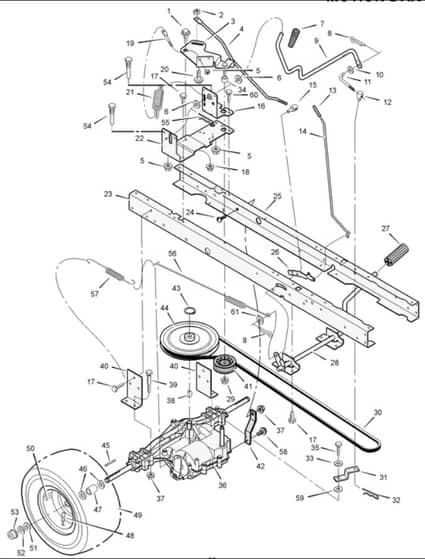

Motion Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HAMU9X39 Out of stock	Bolt. Shoulder	£4.30 £3.58
5	HAMU15X79 Out of stock	Nut. Flange	£3.14 £2.62
7	HAMU92697 Out of stock	Grip. Shift Lever	£5.60 £4.67
8	HAMU30X20 Out of stock	Pin. Cotter	£5.65 £4.71
12	BP021920ZMA Out of stock	Nut. Adjuster	£21.43 £17.86
15	HAMU94815Z Out of stock	Nut. Adjuster	£14.74 £12.28
17	HAMU26X249 Out of stock	Screw	£2.56 £2.13
18	HAMU15X84 In stock	Nut. Flange	£4.16 £3.47
27	HAMU21544 Out of stock	Cover. Pedal	£7.24 £6.03
30	BP037X87MA In stock	Belt. Motion Drive	£41.57 £34.64
31	HAMU94031Z Out of stock	Yoke. Shift	£7.21 £6.01
32	HAMU31X6 Out of stock	Hair Pin	£3.35 £2.79
37	HAMU15X88 Out of stock	Nut	£3.95 £3.29
41	BP690409MA Out of stock	Pulley	£19.12 £15.93
42	HAMU94433E700 Out of stock	Bracket. Transaxle Support	£12.52 £10.43
43	HAMU11X7 Out of stock	Ring. Retainer	£4.72 £3.93
44	HAMU95094 Out of stock	Pulley. Drive	£57.73 £48.11
51	BP17X195MA In stock	Washer	£4.81 £4.01
52	HAMU11X3 Out of stock	E-Ring	£4.10 £3.42
53	BP094618MA Out of stock	Cap. Hub	£3.91 £3.26
56	HAMU165X116 Out of stock	Spring. Extension	£8.62 £7.18
57	HAMU165X92 Out of stock	Spring. Extension	£5.45 £4.54
58	BP26X216MA Out of stock	Screw	£5.74 £4.78
60	HAMU26X267 Out of stock	Screw	£3.86 £3.22
61	BP17X169MA Out of stock	Washer	£3.02 £2.52
