Hayter Hayterette Professional - 284R (284R001001 - 284R099999) - Lower Mainframe Diagram

Name: Hayter Hayterette Professional - 284R (284R001001 - 284R099999) - Lower Mainframe Diagram
SKU: hayterette professional psei1511 lower mainframe diagram-group
Price: 0.98 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Hayterette Professional - 284R (284R001001 - 284R099999) - Lower Mainframe Diagram

Description

Hayter Hayterette Professional - 284R

Serial No: 284R001001 - 284R099999

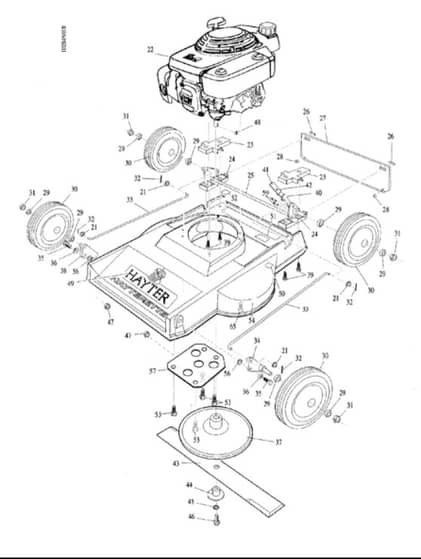

Lower Mainframe Diagram - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
21	HA09266 Out of stock	Washer-Plain	£1.44 £1.20
24	HA005145 Out of stock	Bearing Block - Lower	£20.50 £17.08
26	HA254013 Out of stock	Spring Pin	£1.56 £1.30
27	HA005097 Out of stock	Rear Flap	£21.55 £17.96
28	HA6289 Out of stock	Ass-Y. Deck	£1.18 £0.98
31	HA4486 Out of stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.18 £0.98
32	HA09303 Out of stock	1/2"x3/32" Split Pin	£1.63 £1.36
33	HA005135 Out of stock	Connecting Rod	£18.42 £15.35
35	HA005129 Out of stock	Bolt - Axle Pivot	£12.20 £10.17
36	HAHY4912 In stock	Washer	£1.60 £1.33
37	HA397042W Out of stock	Friction Disc W/A	£55.30 £46.08
39	HAZBH1H075U Out of stock	Bolt - M8 x 75	£2.02 £1.68
40	HA4884 Out of stock	Spring Handle Retaining Clip	£6.26 £5.22
41	HAHY4097 Out of stock	Handle Grip	£12.89 £10.74
42	HA09320 Out of stock	Rivet	£1.63 £1.36
43	HA5637 Out of stock	Cutterbar 18" For Hayterette	£27.77 £23.14
44	HA4014 Out of stock	Drag Plate	£11.52 £9.60
45	HA09273 In stock	Washer-Spring	£1.62 £1.35
46	HA09116 Out of stock	Screw Hex Hd 3/8 Unf x11/4	£1.63 £1.36
47	HA09216 Out of stock	Nut-Hex. Ni	£1.63 £1.36
48	HA1662 In stock	Key-Woodruff	£1.46 £1.22
49	HA410087 In stock	Decal	£5.52 £4.60
50	HA320006 In stock	Decal-Hoc	£1.62 £1.35
51	HA111-0083 Out of stock	Decal - Caution	£2.30 £1.92
54	HA005140V Out of stock	Deck	£373.76 £311.47
57	HA284024 Out of stock	Underguard	£119.99 £99.99
