Hayter Hayterette - 005G (310000001 - 310999999) - Main Assembly

Hayter Hayterette - 005G (310000001 - 310999999) - Main Assembly
Hayter Hayterette - 005G (310000001 - 310999999) - Main Assembly

Description

Hayter Hayterette - 005G

Serial No: 310000001 - 310999999

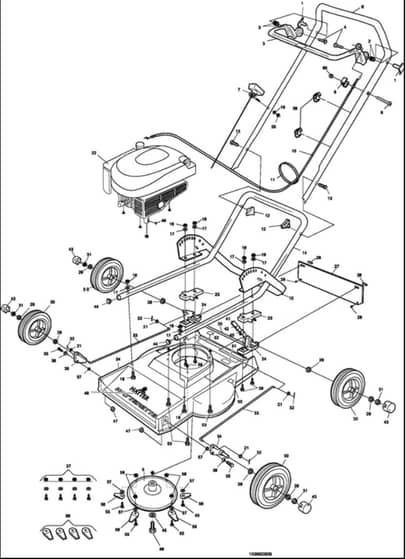

Main Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 Pin-Pivot
Pin-Pivot
HA340182 Out of stock
Pin-Pivot
£1.62 £1.35

  3 Lever-Engine
Lever-Engine
HA111-9662 In stock
Lever-Engine
£17.81 £14.84

  4 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  5 Bottom Plate
Bottom Plate
HAHY2811 Out of stock
Bottom Plate
£121.28 £101.07

  6 Handlebar - Upper
Handlebar - Upper
HA111-0518-03 Out of stock
Handlebar - Upper
£37.24 £31.03

  8 Cable Holder
Cable Holder
HA411035 In stock
Cable Holder
£1.94 £1.62

  9 Screw-HH
Screw-HH
HAZBH1F040U Out of stock
Screw-HH
£1.86 £1.55

  11 Tie-Cable
Tie-Cable
HAHY3966 Out of stock
Tie-Cable
£1.56 £1.30

  12 Triangular Handwheel
Triangular Handwheel
HA226013 In stock
Triangular Handwheel
£6.80 £5.67

  13 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  15 Footguard
Footguard
HA005139W Out of stock
Footguard
£114.88 £95.73

  16 Nut
Nut
HA09442 Out of stock
Nut
£1.63 £1.36

  17 Washer
Washer
HA09475 Out of stock
Washer
£1.63 £1.36

  18 Bolt
Bolt
HA09654 Out of stock
Bolt
£1.63 £1.36

  19 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  20 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  21 Washer-Plain
Washer-Plain
HA09266 Out of stock
Washer-Plain
£1.44 £1.20

  22 Engine B&S Quantum xts 50
Engine B&S Quantum xts 50
HA111-3071 Out of stock
Engine B&S Quantum xts 50
£288.78 £240.65

  24 Bearing Block - Lower
Bearing Block - Lower
HA005145 Out of stock
Bearing Block - Lower
£20.50 £17.08

  26 Spring Pin
Spring Pin
HA254013 Out of stock
Spring Pin
£1.56 £1.30

  27 Rear Flap
Rear Flap
HA005097 Out of stock
Rear Flap
£21.55 £17.96

  28 Grommet - Rubber
Grommet - Rubber
HAHY6289 Out of stock
Grommet - Rubber
£1.58 £1.32

  29 Bearing
Bearing
HAHY300154 In stock
Bearing
£3.72 £3.10

  30 Wheel - 8Â??
Wheel - 8Â??
HA111-1479 Out of stock
Wheel - 8Â??
£20.51 £17.09

  31 Nut-Unf
Nut-Unf
HAHY4486 In stock
Nut-Unf
£1.58 £1.32

  32 1/2
1/2
HA09303 Out of stock
1/2"x3/32" Split Pin
£1.63 £1.36

  33 Connecting Rod
Connecting Rod
HA005135 Out of stock
Connecting Rod
£18.42 £15.35

  34 Axle - Front W/A L/H
Axle - Front W/A L/H
HA005116 Out of stock
Axle - Front W/A L/H
£43.32 £36.10

  35 Bolt - Axle Pivot
Bolt - Axle Pivot
HA005129 Out of stock
Bolt - Axle Pivot
£12.20 £10.17

  36 Spring - Disc 31.8x16x1.02mm
Spring - Disc 31.8x16x1.02mm
HAHY4912 In stock
Spring - Disc 31.8x16x1.02mm
£1.60 £1.33

  38 Axle - Front W/A R/H
Axle - Front W/A R/H
HA005115 Out of stock
Axle - Front W/A R/H
£36.88 £30.73

  39 Bolt
Bolt
HAZBH1H075U Out of stock
Bolt
£2.02 £1.68

  40 Clip - Spring Handle Retaining
Clip - Spring Handle Retaining
HAHY4884 Out of stock
Clip - Spring Handle Retaining
£7.99 £6.66

  41 Handle Grip
Handle Grip
HAHY4097 Out of stock
Handle Grip
£12.89 £10.74

  42 Rivet
Rivet
HA09320 Out of stock
Rivet
£1.63 £1.36

  43 Cap-Hub
Cap-Hub
HA111-1251 Out of stock
Cap-Hub
£1.82 £1.52

  45 Washer-Spring
Washer-Spring
HA09273 In stock
Washer-Spring
£1.62 £1.35

  46 3/8
3/8
HA09114 Out of stock
3/8" Unf x 1" Setscrew
£1.63 £1.36

  48 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  49 Decal
Decal
HA410087 In stock
Decal
£5.52 £4.60

  50 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  51 Decal-Safety
Decal-Safety
HA111-0083 Out of stock
Decal-Safety
£2.30 £1.92

  54 Deck
Deck
HA005140V Out of stock
Deck
£373.76 £311.47

  55 Cutterblade Bolt
Cutterblade Bolt
HAHY6306 Out of stock
Cutterblade Bolt
£5.52 £4.60

  56 Cutterblade
Cutterblade
HA2779 In stock
Cutterblade "C" Type (Set Of 4)
£19.92 £16.60

  58 3/8
3/8
HA09216 Out of stock
3/8" Unf Nyl Ins "P" Type Nut
£1.63 £1.36

  59 Guide-Cable
Guide-Cable
HA410037 In stock
Guide-Cable
£1.46 £1.22

  60 Nut-Nyloc
Nut-Nyloc
HA09438 In stock
Nut-Nyloc
£1.62 £1.35


Description

Hayter Hayterette - 005G

Serial No: 310000001 - 310999999

Main Assembly - Parts Diagram
