Description

Hayter Harrier 56 Blade Brake Clutch Autodrive Mower - 563J

Serial No: 400000000 - 999999999

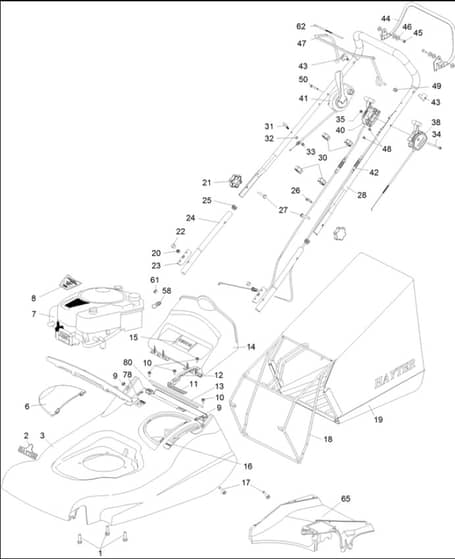

Upper Mainframe - Parts Diagram

Ref. Img. Part No. Details
  1 Screw
Screw
HA09349 Out of stock
Screw
£1.60 £1.33

  2 Decal
Decal
HA410087 Out of stock
Decal
£4.79 £3.99

  3 Mainframe
Mainframe
HA111-1723-08 Out of stock
Mainframe
£585.56 £487.97

  6 Cover-Battery
Cover-Battery
HA560015 Out of stock
Cover-Battery
£3.02 £2.52

  8 Decal
Decal
HA111-3178 Out of stock
Decal
£6.53 £5.44

  9 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  10 Screw-Taptite
Screw-Taptite
HA09365 In stock
Screw-Taptite
£1.63 £1.36

  11 Spring-Deflector
Spring-Deflector
HA410030 In stock
Spring-Deflector
£6.24 £5.20

  12 Ratchet-Plate. Hoc
Ratchet-Plate. Hoc
HA560018 Out of stock
Ratchet-Plate. Hoc
£4.39 £3.66

  13 Rod-Deflector
Rod-Deflector
HA560017 Out of stock
Rod-Deflector
£5.12 £4.27

  14 Deflector-Rear
Deflector-Rear
HA111-1714 Out of stock
Deflector-Rear
£29.89 £24.91

  15 Decal-Safety
Decal-Safety
HA111-0083 Out of stock
Decal-Safety
£2.30 £1.92

  16 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  17 Bolt-Coach
Bolt-Coach
HA09379 Out of stock
Bolt-Coach
£1.62 £1.35

  18 Frame-Grassbag
Frame-Grassbag
HA111-1497-03 Out of stock
Frame-Grassbag
£55.75 £46.46

  19 Grassbag
Grassbag
HA111-5339 In stock
Grassbag
£64.97 £54.14

  20 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  21 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  22 Cap-Nut
Cap-Nut
HAHY234051 In stock
Cap-Nut
£1.56 £1.30

  23 Plate-Clamp. Handlebar
Plate-Clamp. Handlebar
HA340028 In stock
Plate-Clamp. Handlebar
£6.26 £5.22

  24 Handlebar-Lower
Handlebar-Lower
HA111-1384-03 Out of stock
Handlebar-Lower
£9.53 £7.94

  25 Plug
Plug
HA300160 Out of stock
Plug
£1.62 £1.35

  26 Tie-Cable
Tie-Cable
HAHY3966 Out of stock
Tie-Cable
£1.56 £1.30

  27 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  28 Upper Handlebar
Upper Handlebar
HA111-3707 Out of stock
Upper Handlebar
£101.35 £84.46

  30 Guide-Cable
Guide-Cable
HA410037 In stock
Guide-Cable
£1.46 £1.22

  31 Guide Rope
Guide Rope
HA305093 Out of stock
Guide Rope
£1.62 £1.35

  32 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  33 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  34 Screw
Screw
HA09685 Out of stock
Screw
£4.03 £3.36

  35 Nut-Nyloc
Nut-Nyloc
HA09438 In stock
Nut-Nyloc
£1.62 £1.35

  38 Throttle Control Stop
Throttle Control Stop
HA111-3696 Out of stock
Throttle Control Stop
£33.23 £27.69

  40 Speed Control
Speed Control
HA111-1194 In stock
Speed Control
£37.51 £31.26

  41 Control 56 BBC
Control 56 BBC
HA111-3661 In stock
Control 56 BBC
£96.49 £80.41

  42 Cable-Clutch
Cable-Clutch
HA111-1469 In stock
Cable-Clutch
£19.24 £16.03

  43 Pin-Pivot
Pin-Pivot
HA340182 In stock
Pin-Pivot
£1.62 £1.35

  44 Lever-Clutch
Lever-Clutch
HA111-1921-03 In stock
Lever-Clutch
£42.52 £35.43

  45 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  46 Washer
Washer
HA09688 In stock
Washer
£0.68 £0.57

  47 Bailarm BBC
Bailarm BBC
HA111-3270-03 Out of stock
Bailarm BBC
£35.80 £29.83

  48 Fastener Drive
Fastener Drive
HA300144 Out of stock
Fastener Drive
£1.62 £1.35

  49 Clutch Lever
Clutch Lever
HA226034 Out of stock
Clutch Lever
£2.20 £1.83

  50 Capscrew - M6 x 45 Socket Head
Capscrew - M6 x 45 Socket Head
HAZCS1F045U Out of stock
Capscrew - M6 x 45 Socket Head
£2.02 £1.68

  58 Spring Cable Anchor
Spring Cable Anchor
HA111-0527 In stock
Spring Cable Anchor
£7.75 £6.46

  61 Nipple Split
Nipple Split
HA510118 In stock
Nipple Split
£17.40 £14.50

  62 Decal
Decal
HA343019 Out of stock
Decal
£3.02 £2.52

  65 Throwplate
Throwplate
HA560011-03 Out of stock
Throwplate
£118.33 £98.61

  78 Made In Britain Decal
Made In Britain Decal
HA111-7722 Out of stock
Made In Britain Decal
£1.45 £1.21

  80 Sealing Strip
Sealing Strip
HA111-8035 Out of stock
Sealing Strip
£3.31 £2.76


Description

Hayter Harrier 56 Blade Brake Clutch Autodrive Mower - 563J

Serial No: 400000000 - 999999999

Upper Mainframe - Parts Diagram
