Hayter Harrier 56 Blade Brake Clutch Autodrive Mower - 563F

Serial No: 310000001 - 312999999

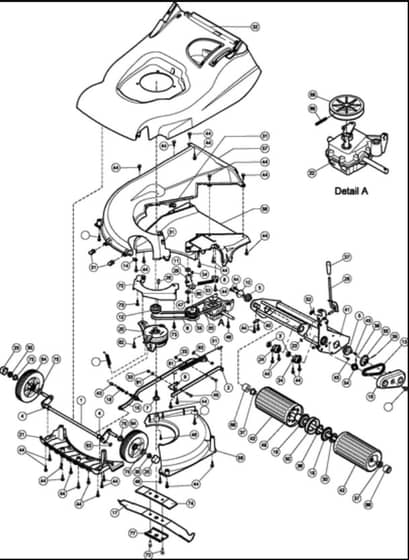

Lower Mainframe - Parts Diagram

Ref. Img. Part No. Details
  1 Axle-Front
Axle-Front
HA560008 Out of stock
Axle-Front
£63.31 £52.76

  2 Bar Spring Tension
Bar Spring Tension
HA560037 Out of stock
Bar Spring Tension
£11.00 £9.17

  3 Bearing
Bearing
HA111-1276 In stock
Bearing
£5.94 £4.95

  4 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  5 Bearing-Roller
Bearing-Roller
HA111-1492 In stock
Bearing-Roller
£24.22 £20.18

  6 Belt-Variator (520)
Belt-Variator (520)
HA411024 In stock
Belt-Variator (520)
£11.52 £9.60

  7 Centre Bolt BBC
Centre Bolt BBC
HA343029 Out of stock
Centre Bolt BBC
£6.42 £5.35

  8 Bracket Cable
Bracket Cable
HAHY412003 Out of stock
Bracket Cable
£4.60 £3.83

  9 Bracket
Bracket
HA560029 Out of stock
Bracket
£5.14 £4.28

  10 Plate-Cover. Dust
Plate-Cover. Dust
HA111-1861 Out of stock
Plate-Cover. Dust
£2.09 £1.74

  11 Bushing-Pivot
Bushing-Pivot
HA411031 Out of stock
Bushing-Pivot
£8.41 £7.01

  12 Pulley 51mm Pcd
Pulley 51mm Pcd
HA111-0822 Out of stock
Pulley 51mm Pcd
£72.05 £60.04

  13 Chain-40 Pitches (3/8 Inch Link)
Chain-40 Pitches (3/8 Inch Link)
HA411016 In stock
Chain-40 Pitches (3/8 Inch Link)
£11.59 £9.66

  14 Clamp
Clamp
HA560027 Out of stock
Clamp
£4.32 £3.60

  15 Rod-Connecting
Rod-Connecting
HA560028 Out of stock
Rod-Connecting
£24.92 £20.77

  16 Cover-Drive
Cover-Drive
HA411013 In stock
Cover-Drive
£3.78 £3.15

  17 Blade
Blade
HA343034 In stock
Blade
£60.06 £50.05

  18 Spring Cable Anchor
Spring Cable Anchor
HA111-0527 In stock
Spring Cable Anchor
£7.75 £6.46

  19 Freewheel-Roller
Freewheel-Roller
HA340150 In stock
Freewheel-Roller
£14.05 £11.71

  20 Blade Brake Clutch
Blade Brake Clutch
HA485007 Out of stock
Blade Brake Clutch
£235.80 £196.50

  21 Fins-Front
Fins-Front
HA560014 Out of stock
Fins-Front
£15.38 £12.82

  22 Gearbox
Gearbox
HA111-7934 Out of stock
Gearbox
£133.12 £110.93

  23 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  24 Housing-Pivot Bearing. Lh
Housing-Pivot Bearing. Lh
HA410048 In stock
Housing-Pivot Bearing. Lh
£8.34 £6.95

  25 Cap-Hub
Cap-Hub
HA111-1251 Out of stock
Cap-Hub
£1.82 £1.52

  26 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  27 Knob-Hoc
Knob-Hoc
HA480134 In stock
Knob-Hoc
£2.09 £1.74

  28 Lever-Hoc
Lever-Hoc
HA560046 Out of stock
Lever-Hoc
£15.38 £12.82

  29 Speed Lever
Speed Lever
HA111-1398 Out of stock
Speed Lever
£11.50 £9.58

  30 Locknut
Locknut
HA340163 In stock
Locknut
£25.60 £21.33

  31 Nut
Nut
HA410076 In stock
Nut
£1.82 £1.52

  33 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  34 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  35 Nut-Unf
Nut-Unf
HAHY4486 In stock
Nut-Unf
£1.58 £1.32

  36 Spacer-Steel
Spacer-Steel
HA340157 In stock
Spacer-Steel
£2.09 £1.74

  37 Bushing-Roller. Oilite
Bushing-Roller. Oilite
HA340129 In stock
Bushing-Roller. Oilite
£9.67 £8.06

  38 Pin-Roll
Pin-Roll
HA03997 In stock
Pin-Roll
£1.62 £1.35

  39 Pin-Spring. Selloc
Pin-Spring. Selloc
HAHY03354 In stock
Pin-Spring. Selloc
£1.58 £1.32

  40 Plate-Securing
Plate-Securing
HA219037 Out of stock
Plate-Securing
£1.62 £1.35

  41 Frame-Roller. Rear
Frame-Roller. Rear
HA111-1485-03 Out of stock
Frame-Roller. Rear
£193.72 £161.43

  42 Roller-Rear
Roller-Rear
HA560031W In stock
Roller-Rear
£83.39 £69.49

  43 Nipple Split
Nipple Split
HA510118 In stock
Nipple Split
£17.40 £14.50

  44 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  45 Screw-Taptite
Screw-Taptite
HA09545 In stock
Screw-Taptite
£1.62 £1.35

  46 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  47 Screw-Taptite
Screw-Taptite
HA09787 Out of stock
Screw-Taptite
£1.46 £1.22

  48 Screw-HH
Screw-HH
HA09364 Out of stock
Screw-HH
£1.56 £1.30

  49 Shaft-Roller
Shaft-Roller
HA111-1717 In stock
Shaft-Roller
£62.65 £52.21

  50 Shroud-Freewheel
Shroud-Freewheel
HA340168 In stock
Shroud-Freewheel
£11.57 £9.64

  51 Spring-Counter Balance
Spring-Counter Balance
HA410050 In stock
Spring-Counter Balance
£7.50 £6.25

  52 Spring-Torsion. Hoc
Spring-Torsion. Hoc
HA480132 In stock
Spring-Torsion. Hoc
£1.16 £0.97

  53 Spring-Variator
Spring-Variator
HAHY412004 Out of stock
Spring-Variator
£5.95 £4.96

  54 Sprocket-Gearbox
Sprocket-Gearbox
HA411011 In stock
Sprocket-Gearbox
£13.43 £11.19

  55 Sprocket 18T
Sprocket 18T
HA411010 In stock
Sprocket 18T
£22.60 £18.83

  56 Throwplate
Throwplate
HA560011-03 Out of stock
Throwplate
£118.33 £98.61

  57 Underdeck Fixed
Underdeck Fixed
HA111-1164 In stock
Underdeck Fixed
£72.71 £60.59

  59 Pulley Variator Asm
Pulley Variator Asm
HA411001 In stock
Pulley Variator Asm
£58.52 £48.77

  58 Underdeck Removable
Underdeck Removable
HA111-1163 In stock
Underdeck Removable
£19.57 £16.31

  60 Washer-Plain
Washer-Plain
HA09270 Out of stock
Washer-Plain
£1.62 £1.35

  61 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  62 Screw - Soc Hd Shld M12 x M10 x 30
Screw - Soc Hd Shld M12 x M10 x 30
HAZIS8L030S Out of stock
Screw - Soc Hd Shld M12 x M10 x 30
£12.11 £10.09

  63 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  64 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  65 V Belt Z502
V Belt Z502
HA111-1254 In stock
V Belt Z502
£10.49 £8.74

  66 Cover-Dust. Bushing
Cover-Dust. Bushing
HA111-1860 Out of stock
Cover-Dust. Bushing
£7.64 £6.37

  67 Kit Rear Roller Shaft Asm
Kit Rear Roller Shaft Asm
HA111-1923 Out of stock
Kit Rear Roller Shaft Asm
£126.08 £105.07

  68 Pulley
Pulley
HA111-1941 In stock
Pulley
£9.72 £8.10

  69 Pin
Pin
HA411023 Out of stock
Pin
£1.56 £1.30

  70 Bracket
Bracket
HA111-0180-03 Out of stock
Bracket
£83.28 £69.40

  71 Spring Blade Brake Tension
Spring Blade Brake Tension
HA343011 Out of stock
Spring Blade Brake Tension
£9.56 £7.97

  72 Socket Head Screw
Socket Head Screw
HA09717 Out of stock
Socket Head Screw
£1.56 £1.30

  73 Screw
Screw
HA09349 Out of stock
Screw
£1.60 £1.33

  74 Blade
Blade
HA111-2267-03 Out of stock
Blade
£21.53 £17.94

  75 Bearing
Bearing
HAHY300154 In stock
Bearing
£3.72 £3.10

  76 Kit Rear Roller Asm
Kit Rear Roller Asm
HA111-1922 Out of stock
Kit Rear Roller Asm
£340.92 £284.10

  77 Plate
Plate
HA111-2950-03 Out of stock
Plate
£24.62 £20.52
