Description

Hayter - 560G

Serial No: 310000001 - 312999999

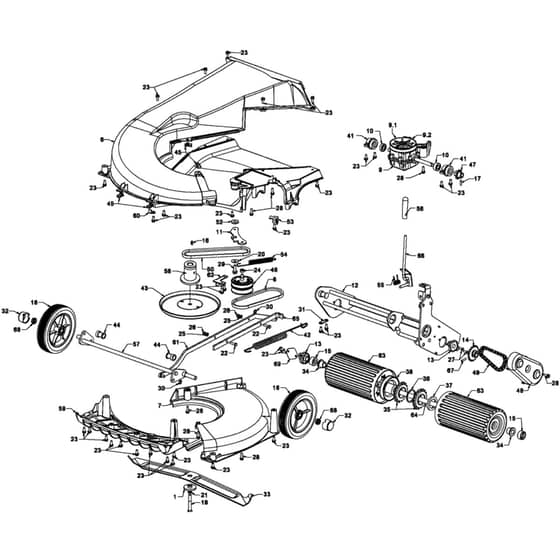

Lower Mainframe - Parts Diagram

Ref. Img. Part No. Details
  1 Spacer-Distance. Cutterbar
Spacer-Distance. Cutterbar
HAHY4014 In stock
Spacer-Distance. Cutterbar
£11.52 £9.60

  6 Under Deck
Under Deck
HA111-1164 In stock
Under Deck
£72.71 £60.59

  7 Under Deck
Under Deck
HA111-1163 In stock
Under Deck
£19.57 £16.31

  8 V Belt Z502
V Belt Z502
HA111-1254 In stock
V Belt Z502
£10.49 £8.74

  9 Gearbox
Gearbox
HA111-7934 Out of stock
Gearbox
£133.12 £110.93

  9 Pulley (9.1)
Pulley (9.1)
HA111-1941 In stock
Pulley (9.1)
£9.72 £8.10

  9 Pin (9.2)
Pin (9.2)
HA411023 Out of stock
Pin (9.2)
£1.56 £1.30

  10 Bearing
Bearing
HA111-1276 In stock
Bearing
£5.94 £4.95

  11 Speed Lever
Speed Lever
HA111-1398 Out of stock
Speed Lever
£11.50 £9.58

  12 Frame-Roller. Rear
Frame-Roller. Rear
HA111-1485-03 Out of stock
Frame-Roller. Rear
£193.72 £161.43

  13 Bearing-Roller
Bearing-Roller
HA111-1492 In stock
Bearing-Roller
£24.22 £20.18

  14 Sprocket-18T
Sprocket-18T
HA111-1552 In stock
Sprocket-18T
£24.71 £20.59

  15 Cover-Dust. Bushing
Cover-Dust. Bushing
HA111-1860 Out of stock
Cover-Dust. Bushing
£7.64 £6.37

  16 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  17 Pin-Roll
Pin-Roll
HA03997 In stock
Pin-Roll
£1.62 £1.35

  18 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  19 Bolt-Unf
Bolt-Unf
HA09122 In stock
Bolt-Unf
£1.62 £1.35

  20 Washer-Plain
Washer-Plain
HA09270 Out of stock
Washer-Plain
£1.62 £1.35

  21 Washer-Spring
Washer-Spring
HA09273 In stock
Washer-Spring
£1.62 £1.35

  22 Screw-HH
Screw-HH
HA09364 Out of stock
Screw-HH
£1.56 £1.30

  23 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  24 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  25 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  26 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  27 Screw-Taptite
Screw-Taptite
HA09545 In stock
Screw-Taptite
£1.62 £1.35

  28 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  29 Screw-Taptite
Screw-Taptite
HA09787 Out of stock
Screw-Taptite
£1.46 £1.22

  30 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  31 Plate-Securing
Plate-Securing
HA219037 Out of stock
Plate-Securing
£1.62 £1.35

  32 Cap-Hub
Cap-Hub
HA111-1251 Out of stock
Cap-Hub
£1.82 £1.52

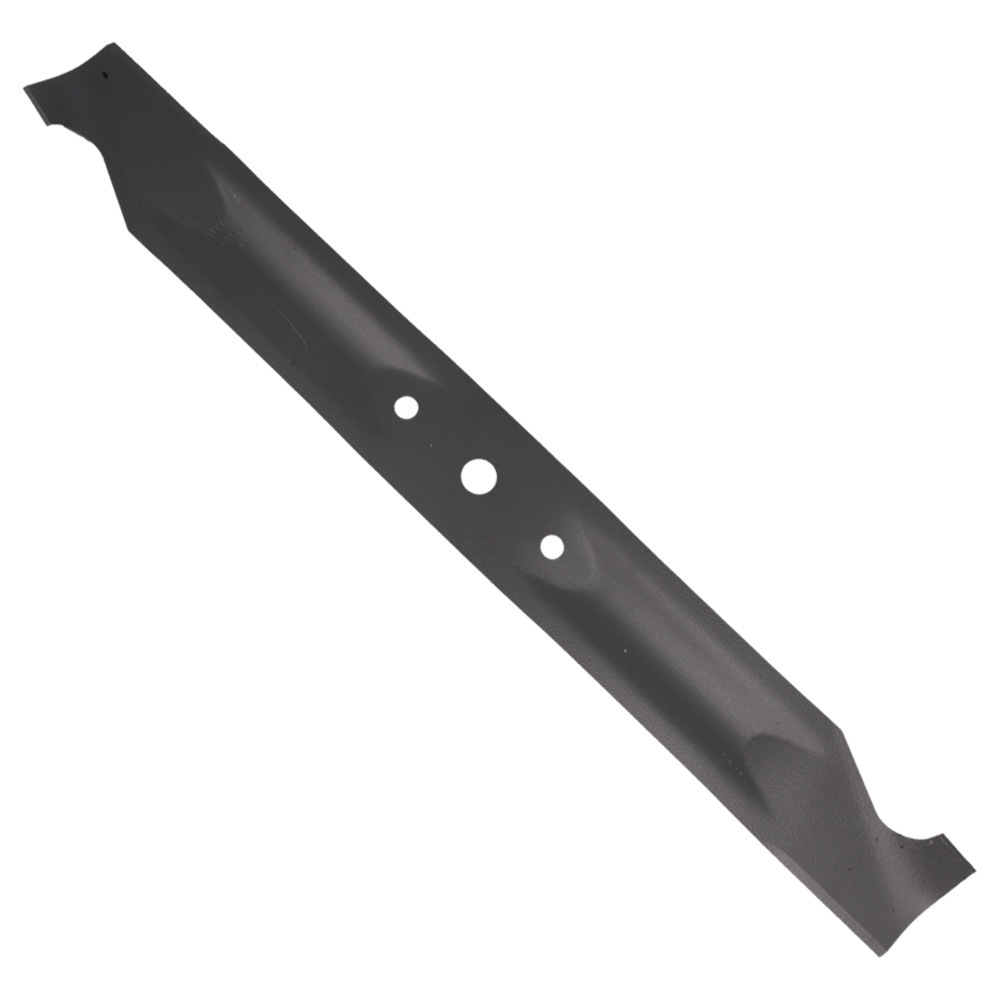

  33 Cutterbar
Cutterbar
HA340015 In stock
Cutterbar
£49.33 £41.11

  34 Bushing-Roller. Oilite
Bushing-Roller. Oilite
HA340129 In stock
Bushing-Roller. Oilite
£9.67 £8.06

  35 Freewheel-Roller
Freewheel-Roller
HA340150 In stock
Freewheel-Roller
£14.05 £11.71

  36 Spacer-Steel
Spacer-Steel
HA340157 In stock
Spacer-Steel
£2.09 £1.74

  37 Locknut
Locknut
HA340163 In stock
Locknut
£25.60 £21.33

  38 Shroud-Freewheel
Shroud-Freewheel
HA340168 In stock
Shroud-Freewheel
£11.57 £9.64

  41 Housing-Pivot Bearing. Lh
Housing-Pivot Bearing. Lh
HA410048 In stock
Housing-Pivot Bearing. Lh
£8.34 £6.95

  42 Spring-Counter Balance
Spring-Counter Balance
HA410050 In stock
Spring-Counter Balance
£7.50 £6.25

  43 Disc-Friction
Disc-Friction
HA410057W In stock
Disc-Friction
£27.11 £22.59

  44 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  45 Nut
Nut
HA410076 In stock
Nut
£1.82 £1.52

  46 Pulley Variator Asm
Pulley Variator Asm
HA411001 In stock
Pulley Variator Asm
£58.52 £48.77

  47 Sprocket-Gearbox
Sprocket-Gearbox
HA411011 In stock
Sprocket-Gearbox
£13.43 £11.19

  48 Cover-Drive
Cover-Drive
HA411013 In stock
Cover-Drive
£3.78 £3.15

  49 Chain-40 Pitches (3/8 Inch Link)
Chain-40 Pitches (3/8 Inch Link)
HA411016 In stock
Chain-40 Pitches (3/8 Inch Link)
£11.59 £9.66

  50 Belt-Variator (520)
Belt-Variator (520)
HA411024 In stock
Belt-Variator (520)
£11.52 £9.60

  52 Bushing-Pivot
Bushing-Pivot
HA411031 Out of stock
Bushing-Pivot
£8.41 £7.01

  53 Bracket Cable
Bracket Cable
HAHY412003 Out of stock
Bracket Cable
£4.60 £3.83

  54 Spring-Variator
Spring-Variator
HAHY412004 Out of stock
Spring-Variator
£5.95 £4.96

  55 Spring-Torsion. Hoc
Spring-Torsion. Hoc
HA480132 In stock
Spring-Torsion. Hoc
£1.16 £0.97

  56 Knob-Hoc
Knob-Hoc
HA480134 In stock
Knob-Hoc
£2.09 £1.74

  57 Axle-Front
Axle-Front
HA560008 Out of stock
Axle-Front
£63.31 £52.76

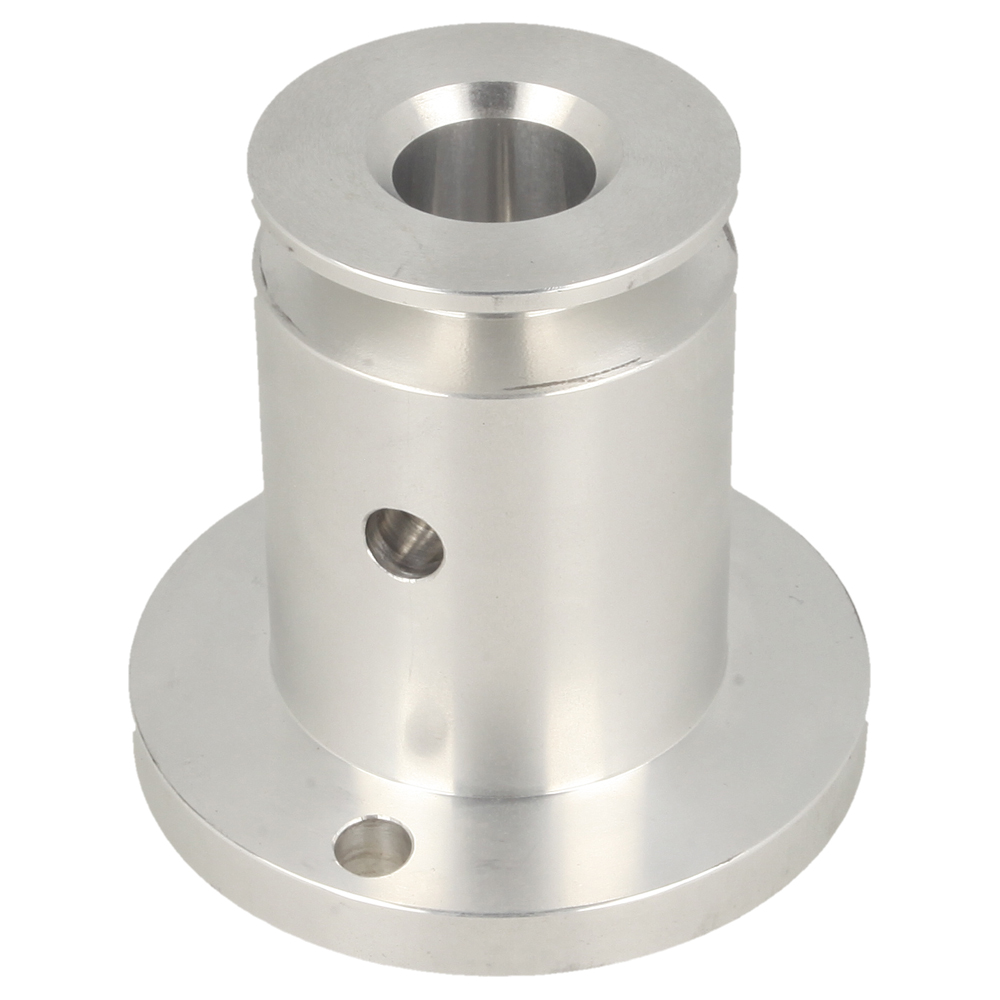

  58 Carrier Blade Boss
Carrier Blade Boss
HA560012 Out of stock
Carrier Blade Boss
£87.22 £72.68

  59 Fins-Front
Fins-Front
HA560014 Out of stock
Fins-Front
£15.38 £12.82

  60 Clamp
Clamp
HA560027 Out of stock
Clamp
£4.32 £3.60

  61 Rod-Connecting
Rod-Connecting
HA560028 Out of stock
Rod-Connecting
£24.92 £20.77

  62 Bracket Rod
Bracket Rod
HA560029 Out of stock
Bracket Rod
£5.14 £4.28

  63 Roller-Rear
Roller-Rear
HA560031W In stock
Roller-Rear
£83.39 £69.49

  64 Shaft-Roller
Shaft-Roller
HA111-1717 Out of stock
Shaft-Roller
£62.65 £52.21

  65 Bar Tension
Bar Tension
HA560037 Out of stock
Bar Tension
£11.00 £9.17

  66 Lever-Hoc
Lever-Hoc
HA560046 Out of stock
Lever-Hoc
£15.38 £12.82

  67 Pin-Spring. Selloc
Pin-Spring. Selloc
HAHY03354 In stock
Pin-Spring. Selloc
£1.58 £1.32

  68 Nut-Unf
Nut-Unf
HAHY4486 In stock
Nut-Unf
£1.58 £1.32

  69 Plate-Cover. Dust
Plate-Cover. Dust
HA111-1861 Out of stock
Plate-Cover. Dust
£2.09 £1.74


Description

Hayter - 560G

Serial No: 310000001 - 312999999

Lower Mainframe - Parts Diagram
