Hayter Harrier 56 Autodrive - 560E (560E270000001 - 560E270999999) - Lower Mainframe

Description

Hayter - 560E

Serial No: 560E270000001 - 560E270999999

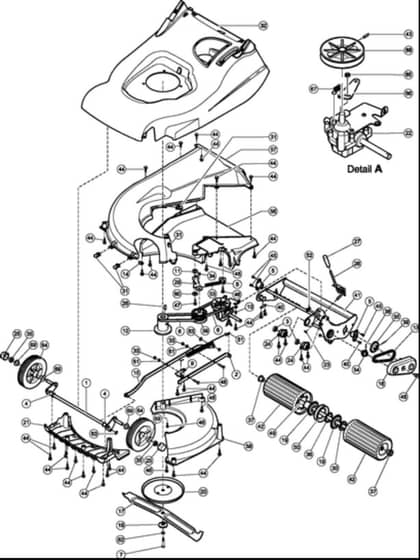

Lower Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA560008 Out of stock	Axle-Front	£63.31 £52.76
2	HA560037 Out of stock	Bar Spring Tension	£11.00 £9.17
3	HA132-9286 In stock	Bearing	£7.32 £6.10
4	HA410069 In stock	Bearing-Axle. Front	£1.63 £1.36
5	HA219102 In stock	Housing-Bearing. Roller	£12.67 £10.56
6	HA411024 In stock	Belt-Variator (520)	£11.52 £9.60
7	HA09122 In stock	Bolt-Unf	£1.62 £1.35
8	HA412003 Out of stock	Bracket Cable	£3.58 £2.98
9	HA560029 Out of stock	Bracket Rod	£5.14 £4.28
10	HA340154 Out of stock	Bushing	£5.66 £4.72
11	HA411031 Out of stock	Bushing-Pivot	£8.41 £7.01
12	HA560012 Out of stock	Carrier Blade Boss	£87.22 £72.68
13	HA411016 In stock	Chain-40 Pitches (3/8 Inch Link)	£11.59 £9.66
14	HA560027 Out of stock	Clamp	£4.32 £3.60
15	HA560028 Out of stock	Rod-Connecting	£24.92 £20.77
16	HA411013 In stock	Cover-Drive	£3.78 £3.15
17	HA340015 In stock	Cutterbar	£49.33 £41.11
18	HAHY4014 In stock	Spacer-Distance. Cutterbar	£11.52 £9.60
19	HA340150 In stock	Freewheel-Roller	£14.05 £11.71
20	HA410057W In stock	Disc-Friction	£27.11 £22.59
21	HA560014 Out of stock	Fins-Front	£15.38 £12.82
22	HA411002 In stock	Gearbox	£103.09 £85.91
23	HA04020 In stock	Grip-Fix	£1.62 £1.35
24	HA410048 In stock	Housing-Pivot Bearing. Lh	£8.34 £6.95
25	HA111-1251 Out of stock	Cap-Hub	£1.82 £1.52
26	HA1662 In stock	Key-Woodruff	£1.46 £1.22
27	HA480134 In stock	Knob-Hoc	£2.09 £1.74
28	HA560046 Out of stock	Lever-Hoc	£15.38 £12.82
29	HA411014 Out of stock	Lever Variable Pulley	£10.57 £8.81
30	HA340163 In stock	Locknut	£25.60 £21.33
31	HA410076 In stock	Nut	£1.82 £1.52
33	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
34	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
35	HAHY4486 In stock	Nut-Unf	£1.58 £1.32
36	HA340157 In stock	Spacer-Steel	£2.09 £1.74
37	HA340129 In stock	Bushing-Roller. Oilite	£9.67 £8.06
38	HA03997 In stock	Pin-Roll	£1.62 £1.35
39	HAHY03354 In stock	Pin-Spring. Selloc	£1.58 £1.32
40	HA219037 Out of stock	Plate-Securing	£1.62 £1.35
42	HA560031W In stock	Roller-Rear	£83.39 £69.49
43	HA411023 Out of stock	Pin	£1.56 £1.30
44	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.63 £1.36
45	HA09545 In stock	Screw-Taptite	£1.62 £1.35
46	HA09575 In stock	Screw-Taptite	£1.62 £1.35
47	HA09787 Out of stock	Screw-Taptite	£1.46 £1.22
48	HA09364 Out of stock	Screw-HH	£1.56 £1.30
49	HA560034 Out of stock	Shaft Roller Welded	£65.41 £54.51
50	HA340168 In stock	Shroud-Freewheel	£11.57 £9.64
51	HA410050 In stock	Spring-Counter Balance	£7.50 £6.25
52	HA480132 In stock	Spring-Torsion. Hoc	£1.16 £0.97
54	HA411011 In stock	Sprocket-Gearbox	£13.43 £11.19
55	HA411010 In stock	Sprocket 18T	£22.60 £18.83
56	HA560011-03 Out of stock	Throwplate	£118.33 £98.61
57	HA111-1164 In stock	Underdeck Fixed	£72.71 £60.59
58	HA111-1163 In stock	Underdeck Removable	£19.57 £16.31
59	HA411001 In stock	Pulley Variator Asm	£58.52 £48.77
60	HA09270 Out of stock	Washer-Plain	£1.62 £1.35
61	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
62	HA09273 In stock	Washer-Spring	£1.62 £1.35
63	HA0201086 In stock	Washer-Starlock	£1.62 £1.35
64	HA111-1250 In stock	Wheel-Ribbed	£30.24 £25.20
65	HAHY300154 In stock	Nut M6 Nyloc	£3.72 £3.10
66	HA411020 Out of stock	Clutch Lever	£7.78 £6.48
67	HA411021 Out of stock	Spring	£2.20 £1.83
68	HA411019 In stock	Pulley	£14.76 £12.30
