Hayter Harrier 56 AD ES - 341S (341S001001 - 341S099999) - Mainframe Assembly

Name: Hayter Harrier 56 AD ES - 341S (341S001001 - 341S099999) - Mainframe Assembly
SKU: harrier 56 ad es psei1504 mainframe assembly-group
Price: 0.19 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 56 AD ES - 341S (341S001001 - 341S099999) - Mainframe Assembly

Description

Hayter Harrier 56 Autodrive Electric Start Mower - 341S

Serial No: 341S001001 - 341S099999

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA340049 In stock	Belt	£22.43 £18.69
2	HA1428 Out of stock	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.63 £1.36
3	HA1662 Out of stock	Key-Woodruff	£1.55 £1.29
4	HA09257 Out of stock	Washer	£1.72 £1.43
5	HA5421 Out of stock	Spring Rear Axle Tension	£2.86 £2.38
6	HA340015 In stock	Cutterbar	£51.85 £43.21
8	HA04020 In stock	Grip-Fix	£1.61 £1.34
9	HAHY4452 In stock	Bush	£3.41 £2.84
10	HA09545 In stock	Screw-Taptite	£1.61 £1.34
11	HA111-1250 In stock	Wheel-Ribbed	£30.24 £25.20
12	HA219143 Out of stock	Hub Cap	£7.62 £6.35
13	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
14	HA09575 In stock	Screw-Taptite	£1.69 £1.41
15	HA02575 In stock	Washer	£1.72 £1.43
16	HA397042W Out of stock	Washer	£58.07 £48.39
17	HA09266 Out of stock	Washer-Plain	£1.52 £1.27
18	HA09280 Out of stock	Washer-Plain	£1.63 £1.36
19	HA09472 In stock	Washer-Plain	£1.55 £1.29
20	HA340028 In stock	Plate-Clamp. Handlebar	£6.59 £5.49
21	HA02708 Out of stock	Circlip Ext 3/4"	£0.23 £0.19
22	HA03096 In stock	Circlip	£1.63 £1.36
23	HA03997 In stock	Pin-Roll	£1.69 £1.41
24	HA09349 Out of stock	Screw	£1.69 £1.41
25	HA09116 Out of stock	Screw Hex Hd 3/8 Unf x11/4	£1.72 £1.43
26	HA4486 Out of stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.18 £0.98
27	HA0201086 In stock	Washer-Starlock	£1.61 £1.34
28	HA330053 Out of stock	Cover Lever	£5.89 £4.91
29	HA09273 In stock	Washer-Spring	£1.61 £1.34
31	HA1246 Out of stock	Spring Clutch Shoe Return	£3.41 £2.84
32	HA09780 In stock	Setscrew	£1.96 £1.63
33	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.72 £1.43
35	HA09379 Out of stock	Bolt-Coach	£1.69 £1.41
36	HA09546 Out of stock	Screw-Taptite	£1.72 £1.43
37	HA09441 In stock	Nut-Hex. Ni	£1.69 £1.41
38	HA09320 Out of stock	Rivet	£1.72 £1.43
39	HA09668 Out of stock	Bolt-Coach	£1.63 £1.36
40	HA09547 Out of stock	Screw-HH	£1.72 £1.43
41	HA09687 In stock	Screw	£1.69 £1.41
42	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
43	HA4014 Out of stock	Drag Plate	£12.10 £10.08
44	HA09688 In stock	Washer	£0.72 £0.60
45	HA340205V Out of stock	Mainframe Assembly	£378.97 £315.81
47	HA219095 Out of stock	Idler Sprocket Sleeve	£22.90 £19.08
48	HA340102 Out of stock	Plate Ratchet 9 Tooth	£34.43 £28.69

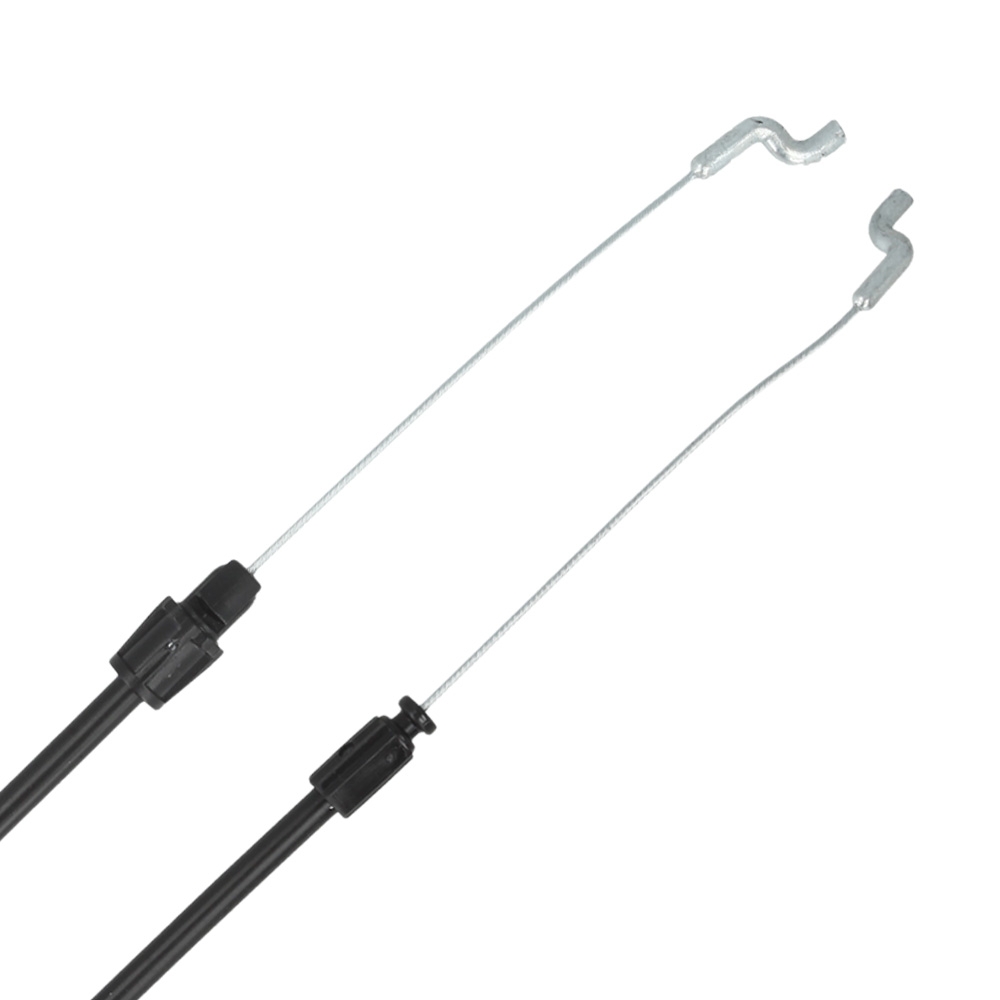

49	HA341031 Out of stock	Brake Cable	£9.79 £8.16
50	HAHY234051 In stock	Cap-Nut	£1.55 £1.29
52	HAHY219023 Out of stock	Lever Jockey Assy	£59.59 £49.66
53	HA219106 In stock	Sprocket 10T	£13.54 £11.28
56	HA340014 Out of stock	Connecting Rod	£8.95 £7.46
57	HA340020 Out of stock	Front Axle Assy	£54.92 £45.77
58	HA219036 Out of stock	Moulding - Front Axle Bearing	£4.94 £4.12
59	HA219037 Out of stock	Plate-Securing	£1.69 £1.41
60	HA219156 Out of stock	Pulley - Jockey	£1.68 £1.40
61	HA219051 Out of stock	17T Sprocket Assy	£23.42 £19.52
62	HA340104 Out of stock	Handlebar - Lower Rh	£11.98 £9.98
64	HA219053 Out of stock	Sleeve Sprocket Tube	£9.95 £8.29
67	HA340109 Out of stock	Coupling	£48.49 £40.41
68	HA219060 Out of stock	Moulding Bearing Housing	£9.00 £7.50
70	HA219064 Out of stock	Bracket Belt Guide	£8.69 £7.24
71	HA219054 In stock	Chain 30 Pitch 1/2" x 1/8"	£14.44 £12.03
72	HA340206 Out of stock	Cover Transmission Moulded	£20.42 £17.02
73	HA340051 Out of stock	Underguard	£17.94 £14.95
74	HA340022 Out of stock	Rear Deflector	£70.80 £59.00
76	HA340052 Out of stock	Spring	£6.28 £5.23
77	HA09437 Out of stock	Nut	£1.72 £1.43
78	HA340190 Out of stock	Insert - Front Fin	£14.21 £11.84
79	HA305093 Out of stock	Guide Rope	£1.62 £1.35
80	HA111-1921-03 In stock	Clutch Lever	£44.64 £37.20
81	HA09438 In stock	Nut-Nyloc	£1.61 £1.34
82	HA09474 Out of stock	Washer-Spring	£1.63 £1.36
83	HA111-0083 Out of stock	Decal Safety	£2.41 £2.01
84	HA226013 In stock	Triangular Handwheel	£6.80 £5.67
85	HA340071 Out of stock	Grassbag - Fabric	£53.11 £44.26

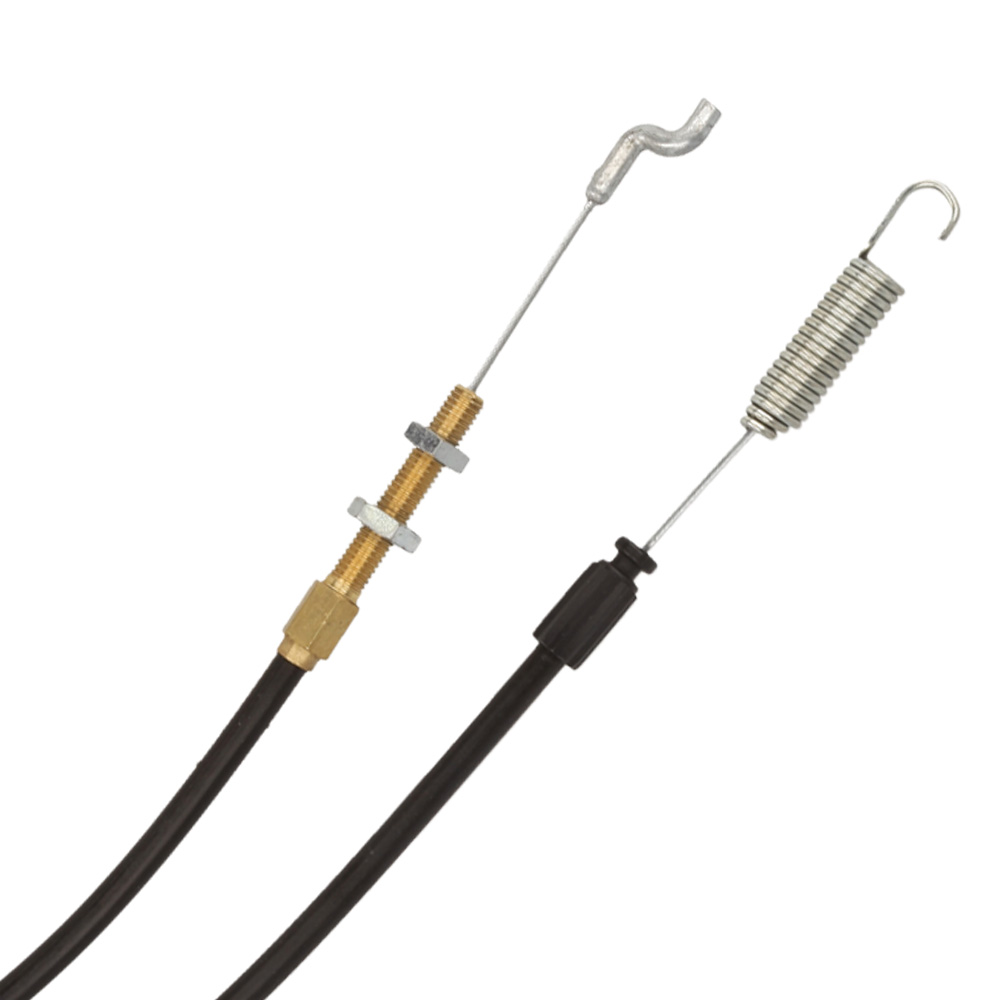

86	HA341034 In stock	Clutch Cable	£22.66 £18.88
87	HA300160 In stock	Plug	£1.69 £1.41
88	HA219102 In stock	Housing-Bearing. Roller	£13.30 £11.08
89	HA340072 Out of stock	Cover - Grassbag	£78.72 £65.60
90	HA340070 Out of stock	Grassbag Assy	£217.44 £181.20
91	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
93	HA340073 Out of stock	Handle - Grassbag	£20.94 £17.45
94	HA340075 Out of stock	Frame - Grassbag Assembly	£48.84 £40.70
95	HA340078 Out of stock	Â??Uâ?? Tube	£16.73 £13.94
96	HA410087 In stock	Decal	£5.52 £4.60
97	HA340129 In stock	Bushing-Roller. Oilite	£10.14 £8.45
98	HA340139 In stock	Roller - Assembly	£79.68 £66.40
99	HA340157 In stock	Spacer Steel	£2.09 £1.74
100	HA340150 In stock	Freewheel-Roller	£14.05 £11.71
101	HA340154 Out of stock	Bushing	£5.95 £4.96
102	HA340163 In stock	Locknut	£25.60 £21.33
103	HA340162 Out of stock	Roller Shaft	£57.96 £48.30
104	HA340168 In stock	Shroud-Freewheel	£11.57 £9.64
105	HAMU42189 Out of stock	Rope Stop	£5.26 £4.38
106	HA111-9662 In stock	Brake Lever	£18.71 £15.59
107	HA340182 In stock	Pin-Pivot	£1.61 £1.34
108	HA341029 Out of stock	Handlebar Upper	£88.80 £74.00

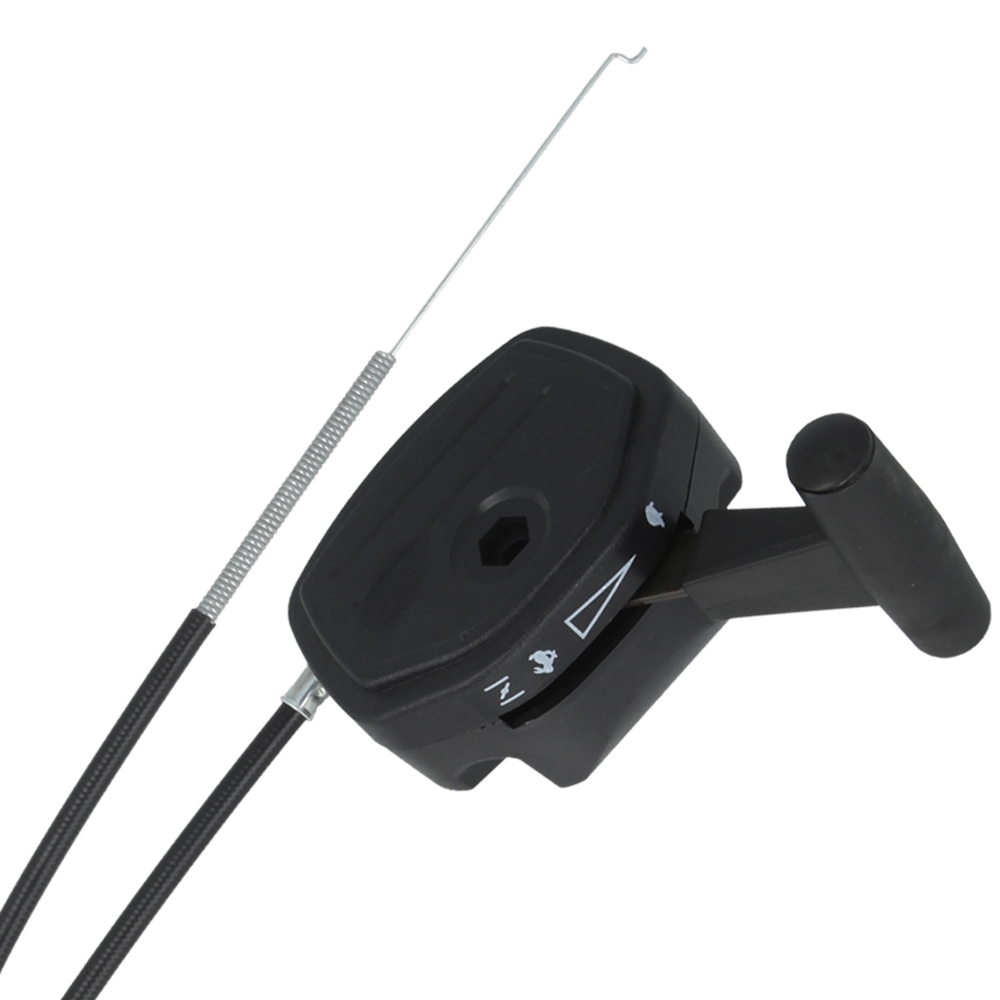

112	HA341028 Out of stock	Throttle Control	£36.84 £30.70
113	HAHY220015 Out of stock	Battery Replacement Kit	£87.00 £72.50
116	HAHY220013 Out of stock	Battery Bracket	£23.48 £19.57
117	HAHY6426 Out of stock	Key Pair - Electric Start	£7.30 £6.08
118	HA300144 Out of stock	Fastener Drive	£1.69 £1.41
