Hayter Harrier 48 Pro - 496E (496E270000001 - 496E270999999) - Lower Mainframe

Hayter Harrier 48 Pro - 496E (496E270000001 - 496E270999999) - Lower Mainframe
Hayter Harrier 48 Pro - 496E (496E270000001 - 496E270999999) - Lower Mainframe

Description

Hayter - 496E

Serial No: 496E270000001 - 496E270999999

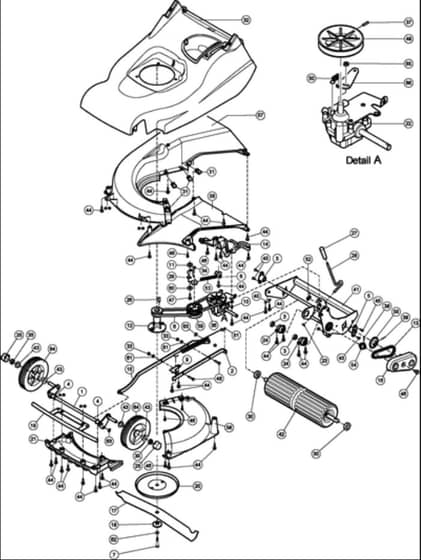

Lower Mainframe - Parts Diagram

Ref. Img. Part No. Details
  1 Axle Front Assy
Axle Front Assy
HA111-0588 In stock
Axle Front Assy
£61.33 £51.11

  2 Bar Spring Tension
Bar Spring Tension
HA111-0672 Out of stock
Bar Spring Tension
£10.88 £9.07

  3 Bearing
Bearing
HA132-9286 Out of stock
Bearing
£7.32 £6.10

  4 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  5 Housing-Bearing. Roller
Housing-Bearing. Roller
HA219102 In stock
Housing-Bearing. Roller
£12.67 £10.56

  6 Belt-Variator (536)
Belt-Variator (536)
HA111-0771 In stock
Belt-Variator (536)
£11.45 £9.54

  7 Bolt-Unf
Bolt-Unf
HA09788 In stock
Bolt-Unf
£1.50 £1.25

  8 Bracket Cable
Bracket Cable
HA412003 Out of stock
Bracket Cable
£3.58 £2.98

  9 Bracket Conn Rod
Bracket Conn Rod
HA111-0699 Out of stock
Bracket Conn Rod
£9.34 £7.78

  10 Bushing
Bushing
HA340154 Out of stock
Bushing
£5.66 £4.72

  11 Bushing-Pivot
Bushing-Pivot
HA411031 Out of stock
Bushing-Pivot
£8.41 £7.01

  12 Carrier-Blade
Carrier-Blade
HA410078 In stock
Carrier-Blade
£41.78 £34.82

  13 Chain-40 Pitches (3/8 Inch Link)
Chain-40 Pitches (3/8 Inch Link)
HA411016 In stock
Chain-40 Pitches (3/8 Inch Link)
£11.59 £9.66

  14 Support Bracket Rear Pivot
Support Bracket Rear Pivot
HA111-3303 In stock
Support Bracket Rear Pivot
£10.97 £9.14

  15 Rod-Connecting
Rod-Connecting
HA111-0202 In stock
Rod-Connecting
£19.55 £16.29

  16 Cover-Drive
Cover-Drive
HA411013 In stock
Cover-Drive
£3.78 £3.15

  17 Cutterblade - 19 Inch
Cutterblade - 19 Inch
HA480149 In stock
Cutterblade - 19 Inch
£30.25 £25.21

  18 Drag Plate
Drag Plate
HA4014 Out of stock
Drag Plate
£11.52 £9.60

  19 Bump-Bar W/A
Bump-Bar W/A
HA111-2986-03 Out of stock
Bump-Bar W/A
£53.99 £44.99

  20 Disc-Friction
Disc-Friction
HA410057W In stock
Disc-Friction
£27.11 £22.59

  21 Front_Fins
Front_Fins
HA111-0594 Out of stock
Front_Fins
£27.08 £22.57

  22 Gearbox
Gearbox
HA411002 In stock
Gearbox
£103.09 £85.91

  23 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  24 Housing-Pivot Bearing. Lh
Housing-Pivot Bearing. Lh
HA410048 In stock
Housing-Pivot Bearing. Lh
£8.34 £6.95

  25 Cap-Hub
Cap-Hub
HA111-1251 Out of stock
Cap-Hub
£1.82 £1.52

  26 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  27 Knob-Hoc
Knob-Hoc
HA480134 In stock
Knob-Hoc
£2.09 £1.74

  28 Lever - Hoc
Lever - Hoc
HA480128 Out of stock
Lever - Hoc
£8.16 £6.80

  29 Lever Variable Pulley
Lever Variable Pulley
HA411014 Out of stock
Lever Variable Pulley
£10.57 £8.81

  30 Washer Nylon
Washer Nylon
HA4017 Out of stock
Washer Nylon
£2.75 £2.29

  31 Nut
Nut
HA410076 In stock
Nut
£1.82 £1.52

  33 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  34 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  35 Nut Unf 1/2
Nut Unf 1/2
HA4486 Out of stock
Nut Unf 1/2" Nyloc Ext Thin5/16"
£1.18 £0.98

  36 Belt Variator
Belt Variator
HA411025 In stock
Belt Variator
£9.73 £8.11

  37 Pin
Pin
HA411023 Out of stock
Pin
£1.56 £1.30

  38 Pin-Roll
Pin-Roll
HA03997 In stock
Pin-Roll
£1.62 £1.35

  39 Pin-Spring. Selloc
Pin-Spring. Selloc
HAHY03354 In stock
Pin-Spring. Selloc
£1.58 £1.32

  40 Plate-Securing
Plate-Securing
HA219037 Out of stock
Plate-Securing
£1.62 £1.35

  42 Roller W/A Pro
Roller W/A Pro
HA111-0740-03 Out of stock
Roller W/A Pro
£206.04 £171.70

  43 Use Hy300154 Bearing 1/2 Ball Uralan
Use Hy300154 Bearing 1/2 Ball Uralan
HAHY300154 In stock
Use Hy300154 Bearing 1/2 Ball Uralan
£3.72 £3.10

  44 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  45 Screw-Taptite
Screw-Taptite
HA09545 In stock
Screw-Taptite
£1.62 £1.35

  46 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  47 Screw-Taptite
Screw-Taptite
HA09787 Out of stock
Screw-Taptite
£1.46 £1.22

  48 Screw-HH
Screw-HH
HA09364 Out of stock
Screw-HH
£1.56 £1.30

  49 Pulley
Pulley
HA411019 In stock
Pulley
£14.76 £12.30

  50 Spring
Spring
HA411021 Out of stock
Spring
£2.20 £1.83

  51 Spring-Counter Balance
Spring-Counter Balance
HA410050 In stock
Spring-Counter Balance
£7.50 £6.25

  52 Spring-Torsion. Hoc
Spring-Torsion. Hoc
HA480132 In stock
Spring-Torsion. Hoc
£1.16 £0.97

  54 Sprocket-Gearbox
Sprocket-Gearbox
HA411011 In stock
Sprocket-Gearbox
£13.43 £11.19

  55 Sprocket 18T
Sprocket 18T
HA411010 In stock
Sprocket 18T
£22.60 £18.83

  56 Throwplate
Throwplate
HA111-0218 In stock
Throwplate
£23.76 £19.80

  57 Underdeck Chute
Underdeck Chute
HA111-0131 In stock
Underdeck Chute
£82.30 £68.58

  58 Underdeck Cover
Underdeck Cover
HA111-0133 In stock
Underdeck Cover
£28.70 £23.92

  59 Pulley Variator Asm
Pulley Variator Asm
HA411001 In stock
Pulley Variator Asm
£58.52 £48.77

  60 Washer-Plain
Washer-Plain
HA09270 Out of stock
Washer-Plain
£1.62 £1.35

  61 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  62 Washer-Spring
Washer-Spring
HA09273 In stock
Washer-Spring
£1.62 £1.35

  63 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  64 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  65 Nut-Hex. Ni
Nut-Hex. Ni
HAZNN1J000U Out of stock
Nut-Hex. Ni
£1.66 £1.38

  66 Clutch Lever
Clutch Lever
HA411020 Out of stock
Clutch Lever
£7.78 £6.48


Description

Hayter - 496E

Serial No: 496E270000001 - 496E270999999

Lower Mainframe - Parts Diagram
