Description

Hayter Harrier 48 Blade Brake Clutch Autodrive Mower - 493J

Serial No: 400000000 - 999999999

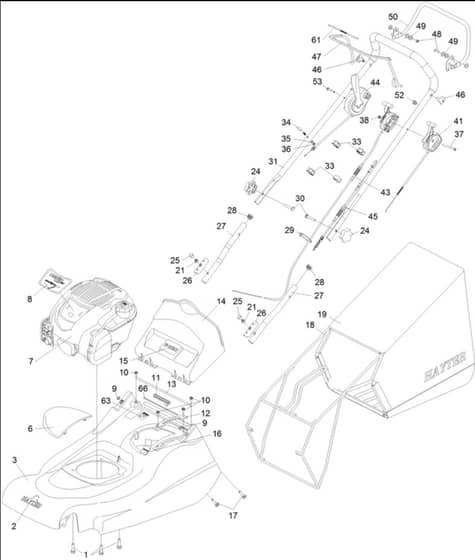

Upper Mainframe - Parts Diagram

Ref. Img. Part No. Details
  1 Screw
Screw
HA09349 Out of stock
Screw
£1.60 £1.33

  2 Decal
Decal
HA410087 In stock
Decal
£4.79 £3.99

  3 Mainframe
Mainframe
HA111-1650-08 Out of stock
Mainframe
£445.62 £371.35

  6 Battery Cover
Battery Cover
HA111-0595 In stock
Battery Cover
£10.93 £9.11

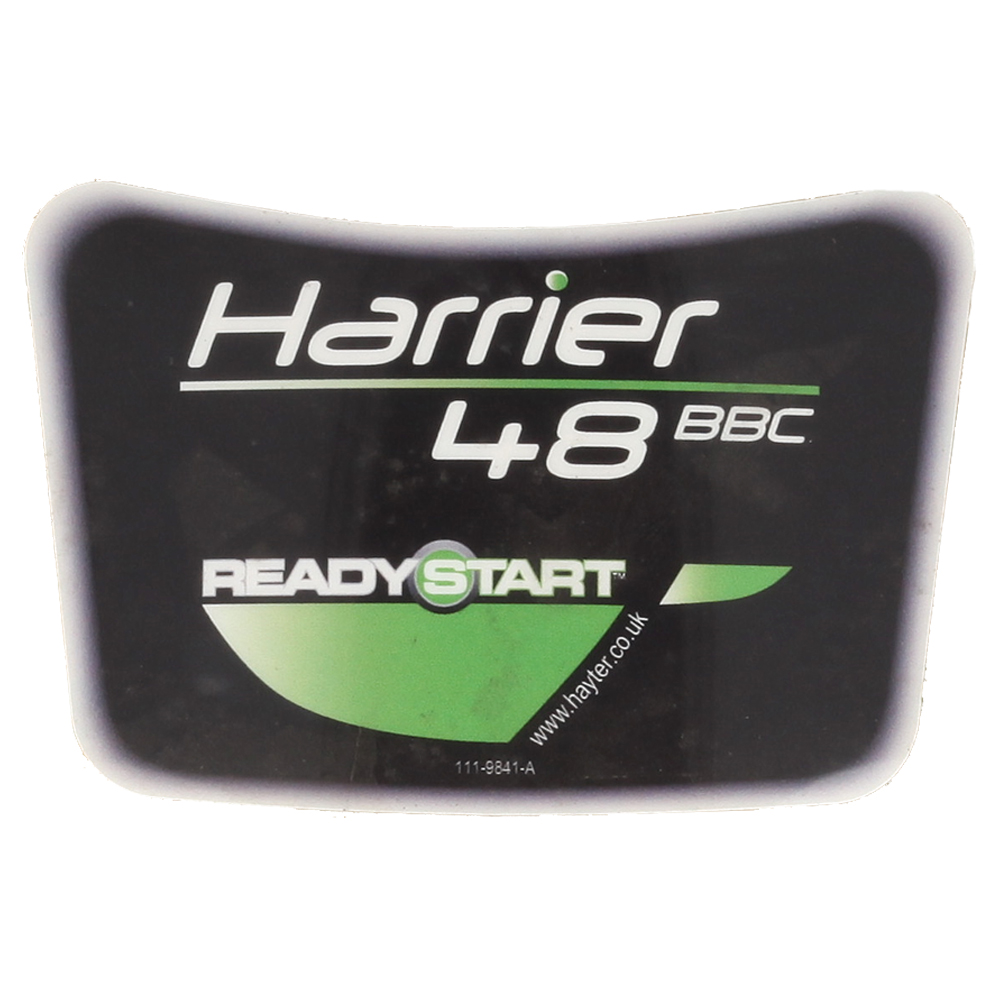

  8 Decal Engine
Decal Engine
HA111-9845 Out of stock
Decal Engine
£4.48 £3.73

  9 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  10 Screw-Taptite
Screw-Taptite
HA09365 In stock
Screw-Taptite
£1.63 £1.36

  11 Spring-Deflector
Spring-Deflector
HA410030 In stock
Spring-Deflector
£6.24 £5.20

  12 Ratchet Plate Hoc
Ratchet Plate Hoc
HA111-0201 Out of stock
Ratchet Plate Hoc
£6.61 £5.51

  13 Rod-Deflector
Rod-Deflector
HA560017 Out of stock
Rod-Deflector
£5.12 £4.27

  14 Deflector-Rear
Deflector-Rear
HA111-1714 In stock
Deflector-Rear
£29.89 £24.91

  15 Decal-Safety
Decal-Safety
HA111-0083 Out of stock
Decal-Safety
£2.30 £1.92

  16 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  17 Bolt-Coach
Bolt-Coach
HA09379 In stock
Bolt-Coach
£1.62 £1.35

  18 Frame-Grassbag
Frame-Grassbag
HA111-1497-03 Out of stock
Frame-Grassbag
£55.75 £46.46

  19 Grassbag
Grassbag
HA111-5339 Out of stock
Grassbag
£64.97 £54.14

  21 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  24 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  25 Cap-Nut
Cap-Nut
HAHY234051 In stock
Cap-Nut
£1.56 £1.30

  26 Plate-Clamp. Handlebar
Plate-Clamp. Handlebar
HA340028 In stock
Plate-Clamp. Handlebar
£6.26 £5.22

  27 Handlebar Lower
Handlebar Lower
HA111-1913-03 Out of stock
Handlebar Lower
£10.27 £8.56

  28 Plug
Plug
HA300160 Out of stock
Plug
£1.62 £1.35

  29 Tie-Cable
Tie-Cable
HAHY3966 Out of stock
Tie-Cable
£1.56 £1.30

  30 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  31 Upper Handlebar
Upper Handlebar
HA111-3707 Out of stock
Upper Handlebar
£101.35 £84.46

  33 Guide-Cable
Guide-Cable
HA410037 In stock
Guide-Cable
£1.46 £1.22

  34 Guide Rope
Guide Rope
HA305093 Out of stock
Guide Rope
£1.62 £1.35

  35 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  36 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  37 Screw
Screw
HA09685 Out of stock
Screw
£4.03 £3.36

  38 Nut-Nyloc
Nut-Nyloc
HA09438 In stock
Nut-Nyloc
£1.62 £1.35

  41 Throttle Control
Throttle Control
HA111-9906 Out of stock
Throttle Control
£35.99 £29.99

  43 Cable Variator
Cable Variator
HA111-1193 In stock
Cable Variator
£34.12 £28.43

  44 Control 48 BBC
Control 48 BBC
HA111-3668 Out of stock
Control 48 BBC
£95.15 £79.29

  45 Clutch Cable
Clutch Cable
HA111-1548 In stock
Clutch Cable
£29.71 £24.76

  46 Pin-Pivot
Pin-Pivot
HA340182 In stock
Pin-Pivot
£1.62 £1.35

  47 Bailarm BBC
Bailarm BBC
HA111-3270-03 Out of stock
Bailarm BBC
£35.80 £29.83

  48 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  49 Washer
Washer
HA09688 In stock
Washer
£0.68 £0.57

  50 Lever-Clutch
Lever-Clutch
HA111-1921-03 In stock
Lever-Clutch
£42.52 £35.43

  52 Clutch Lever
Clutch Lever
HA226034 Out of stock
Clutch Lever
£2.20 £1.83

  53 Capscrew - M6 x 45 Socket Head
Capscrew - M6 x 45 Socket Head
HAZCS1F045U Out of stock
Capscrew - M6 x 45 Socket Head
£2.02 £1.68

  61 Decal Operation
Decal Operation
HA343019 Out of stock
Decal Operation
£3.02 £2.52

  63 Made In Britain Decal
Made In Britain Decal
HA111-7722 Out of stock
Made In Britain Decal
£1.45 £1.21

  66 Sealing Strip
Sealing Strip
HA111-8035 Out of stock
Sealing Strip
£3.31 £2.76


Description

Hayter Harrier 48 Blade Brake Clutch Autodrive Mower - 493J

Serial No: 400000000 - 999999999

Upper Mainframe - Parts Diagram
