Hayter Harrier 48 BBC AD - 493H (315000001 - 315000334) - Upper Mainframe

Name: Hayter Harrier 48 BBC AD - 493H (315000001 - 315000334) - Upper Mainframe
SKU: harrier 48 bbc ad 493h01 upper mainframe-group
Price: 1.21 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 48 BBC AD - 493H (315000001 - 315000334) - Upper Mainframe

Description

Hayter Harrier 48 Blade Brake Clutch Autodrive Mower - 493H

Serial No: 315000001 - 315000334

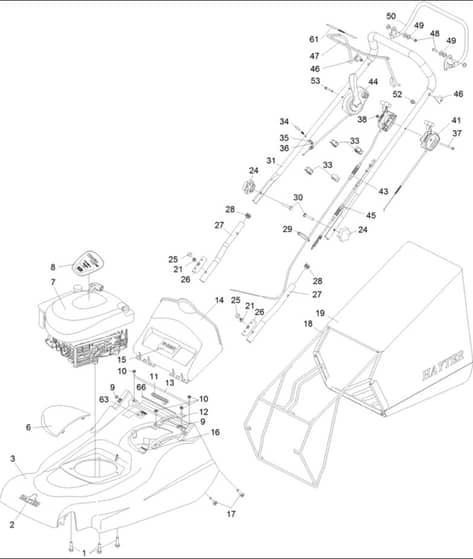

Upper Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA410087 In stock	Decal	£4.79 £3.99
3	HA111-1650-08 Out of stock	Mainframe	£445.62 £371.35
6	HA111-0595 Out of stock	Battery Cover	£10.93 £9.11
9	HA04020 In stock	Grip-Fix	£1.62 £1.35
10	HA09365 In stock	Screw-Taptite	£1.63 £1.36
11	HA410030 In stock	Spring-Deflector	£6.24 £5.20
12	HA111-0201 Out of stock	Ratchet Plate Hoc	£6.61 £5.51
13	HA560017 Out of stock	Rod-Deflector	£5.12 £4.27
14	HA111-1714 In stock	Deflector-Rear	£29.89 £24.91
15	HA111-0083 Out of stock	Decal-Safety	£2.30 £1.92
16	HA320006 In stock	Decal-Hoc	£1.62 £1.35
17	HA09379 In stock	Bolt-Coach	£1.62 £1.35
18	HA111-1497-03 Out of stock	Frame-Grassbag	£55.75 £46.46
19	HA111-5339 Out of stock	Grassbag	£64.97 £54.14
21	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
24	HA480088 In stock	Knob-Handlebar	£5.35 £4.46
25	HAHY234051 In stock	Cap-Nut	£1.56 £1.30
26	HA340028 In stock	Plate-Clamp. Handlebar	£6.26 £5.22
27	HA111-1913-03 Out of stock	Handlebar Lower	£10.27 £8.56
29	HAHY3966 Out of stock	Tie-Cable	£1.56 £1.30
30	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
33	HA410037 In stock	Guide-Cable	£1.46 £1.22
35	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
36	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
38	HA09438 In stock	Nut-Nyloc	£1.62 £1.35
41	HA111-3704 In stock	Throttle Control BBC	£33.67 £28.06
44	HA111-3668 Out of stock	Control 48 BBC	£95.15 £79.29
45	HA111-1548 In stock	Clutch Cable	£29.71 £24.76
46	HA340182 In stock	Pin-Pivot	£1.62 £1.35
47	HA111-3270-03 Out of stock	Bailarm BBC	£35.80 £29.83
48	HA09687 In stock	Screw	£1.62 £1.35
50	HA111-1921-03 In stock	Lever-Clutch	£42.52 £35.43
53	HAZCS1F045U Out of stock	Capscrew - M6 x 45 Socket Head	£2.02 £1.68
63	HA111-7722 Out of stock	Made In Britain Decal	£1.45 £1.21
66	HA111-8035 Out of stock	Sealing Strip	£3.31 £2.76
