Description

Hayter Harrier 48 Blade Brake Clutch Autodrive Mower - 493H

Serial No: 314000001 - 314999999

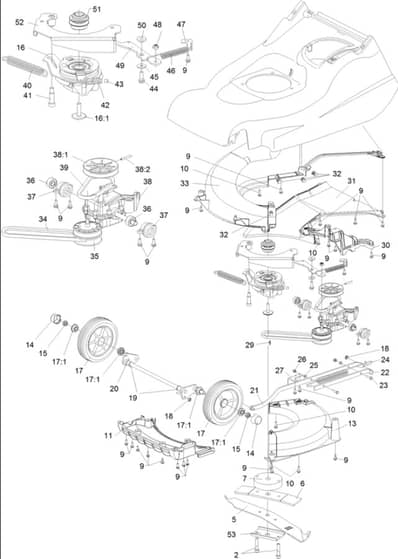

Lower Mainframe - Parts Diagram

Ref. Img. Part No. Details
  2 Screw Soc Hd Cap M10*50 Tufloc
Screw Soc Hd Cap M10*50 Tufloc
HA111-3302 Out of stock
Screw Soc Hd Cap M10*50 Tufloc
£1.72 £1.43

  6 BBC Blade Former
BBC Blade Former
HA111-2267-03 Out of stock
BBC Blade Former
£21.53 £17.94

  7 Packer Blade
Packer Blade
HA111-3227-03 Out of stock
Packer Blade
£89.29 £74.41

  9 Screw-Taptite
Screw-Taptite
HA09365 In stock
Screw-Taptite
£1.63 £1.36

  10 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  11 Front_Fins
Front_Fins
HA111-0594 Out of stock
Front_Fins
£27.08 £22.57

  13 Underdeck Cover
Underdeck Cover
HA111-0133 In stock
Underdeck Cover
£28.70 £23.92

  14 Cap-Hub
Cap-Hub
HA111-1251 Out of stock
Cap-Hub
£1.82 £1.52

  15 Nut-Unf
Nut-Unf
HAHY4486 In stock
Nut-Unf
£1.58 £1.32

  16 Blade Brake Clutch
Blade Brake Clutch
HA485007 Out of stock
Blade Brake Clutch
£235.80 £196.50

  17 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  17 Use Hy300154 Bearing 1/2 Ball Uralan (17.1)
Use Hy300154 Bearing 1/2 Ball Uralan (17.1)
HAHY300154 In stock
Use Hy300154 Bearing 1/2 Ball Uralan (17.1)
£3.72 £3.10

  18 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  19 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  20 Axle Front Assy
Axle Front Assy
HA111-0588 In stock
Axle Front Assy
£61.33 £51.11

  21 Rod-Connecting
Rod-Connecting
HA111-0202 In stock
Rod-Connecting
£19.55 £16.29

  22 Bar Spring Tension
Bar Spring Tension
HA111-0672 Out of stock
Bar Spring Tension
£10.88 £9.07

  23 Screw-HH
Screw-HH
HA09364 Out of stock
Screw-HH
£1.56 £1.30

  24 Spring-Counter Balance
Spring-Counter Balance
HA410050 In stock
Spring-Counter Balance
£7.50 £6.25

  25 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  26 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  27 Bracket Conn Rod
Bracket Conn Rod
HA111-0699 Out of stock
Bracket Conn Rod
£9.34 £7.78

  29 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  30 Support Bracket Rear Roller
Support Bracket Rear Roller
HA111-3303 In stock
Support Bracket Rear Roller
£10.97 £9.14

  31 Throwplate
Throwplate
HA111-0218 In stock
Throwplate
£23.76 £19.80

  32 Nut
Nut
HA410076 In stock
Nut
£1.82 £1.52

  33 Underdeck Chute
Underdeck Chute
HA111-0131 In stock
Underdeck Chute
£82.30 £68.58

  34 Belt-Variator (536)
Belt-Variator (536)
HA111-0771 In stock
Belt-Variator (536)
£11.45 £9.54

  35 Pulley Variator Asm
Pulley Variator Asm
HA411001 In stock
Pulley Variator Asm
£58.52 £48.77

  36 Bearing
Bearing
HA111-1276 In stock
Bearing
£5.94 £4.95

  37 Housing-Pivot Bearing. Lh
Housing-Pivot Bearing. Lh
HA410048 In stock
Housing-Pivot Bearing. Lh
£8.34 £6.95

  38 Gearbox Asm
Gearbox Asm
HA111-7934 In stock
Gearbox Asm
£133.12 £110.93

  38 Pulley (38.1)
Pulley (38.1)
HA411019 In stock
Pulley (38.1)
£14.76 £12.30

  38 Pin (38.2)
Pin (38.2)
HA411023 Out of stock
Pin (38.2)
£1.56 £1.30

  39 Belt Variator
Belt Variator
HA411025 In stock
Belt Variator
£9.73 £8.11

  40 Spring Blade Brake Tension
Spring Blade Brake Tension
HA343011 Out of stock
Spring Blade Brake Tension
£9.56 £7.97

  41 Screw - Soc Hd Shld M12 x M10 x 30
Screw - Soc Hd Shld M12 x M10 x 30
HAZIS8L030S Out of stock
Screw - Soc Hd Shld M12 x M10 x 30
£12.11 £10.09

  42 Spring Cable Anchor
Spring Cable Anchor
HA111-0527 In stock
Spring Cable Anchor
£7.75 £6.46

  43 Nipple Split
Nipple Split
HA510118 In stock
Nipple Split
£17.40 £14.50

  44 Screw-Taptite
Screw-Taptite
HA09787 Out of stock
Screw-Taptite
£1.46 £1.22

  45 Washer-Plain
Washer-Plain
HA09270 Out of stock
Washer-Plain
£1.62 £1.35

  46 Spring-Variator
Spring-Variator
HAHY412004 Out of stock
Spring-Variator
£5.95 £4.96

  47 Bracket Cable
Bracket Cable
HAHY412003 Out of stock
Bracket Cable
£4.60 £3.83

  48 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  49 Lever Variable Pulley
Lever Variable Pulley
HA111-1480 Out of stock
Lever Variable Pulley
£12.11 £10.09

  50 Bushing-Pivot
Bushing-Pivot
HA411031 Out of stock
Bushing-Pivot
£8.41 £7.01

  51 Pulley 51mm Pcd
Pulley 51mm Pcd
HA111-0822 Out of stock
Pulley 51mm Pcd
£72.05 £60.04

  52 Bracket
Bracket
HA111-0180-03 Out of stock
Bracket
£83.28 £69.40

  53 Clamp Plate
Clamp Plate
HA111-2950-03 Out of stock
Clamp Plate
£24.62 £20.52


Description

Hayter Harrier 48 Blade Brake Clutch Autodrive Mower - 493H

Serial No: 314000001 - 314999999

Lower Mainframe - Parts Diagram
