Hayter Harrier 48 Blade Brake Clutch Autodrive Mower - 493E

Serial No: 493E270000001 - 493E270999999

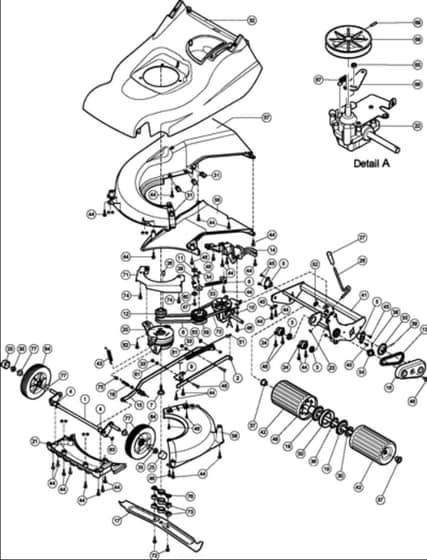

Lower Mainframe - Parts Diagram

Ref. Img. Part No. Details
  1 Axle Front Assy
Axle Front Assy
HA111-0588 In stock
Axle Front Assy
£61.33 £51.11

  2 Bar Spring Tension
Bar Spring Tension
HA111-0672 Out of stock
Bar Spring Tension
£10.88 £9.07

  3 Bearing
Bearing
HA132-9286 Out of stock
Bearing
£7.32 £6.10

  4 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  5 Housing-Bearing. Roller
Housing-Bearing. Roller
HA219102 In stock
Housing-Bearing. Roller
£12.67 £10.56

  6 Belt-Variator (536)
Belt-Variator (536)
HA111-0771 In stock
Belt-Variator (536)
£11.45 £9.54

  7 Centre Bolt BBC
Centre Bolt BBC
HA343029 Out of stock
Centre Bolt BBC
£6.42 £5.35

  8 Bracket Cable
Bracket Cable
HAHY412003 Out of stock
Bracket Cable
£4.60 £3.83

  9 Bracket Conn Rod
Bracket Conn Rod
HA111-0699 Out of stock
Bracket Conn Rod
£9.34 £7.78

  10 Bushing
Bushing
HA340154 Out of stock
Bushing
£5.66 £4.72

  11 Bushing-Pivot
Bushing-Pivot
HA411031 Out of stock
Bushing-Pivot
£8.41 £7.01

  12 Pulley 51mm Pcd
Pulley 51mm Pcd
HA111-0822 Out of stock
Pulley 51mm Pcd
£72.05 £60.04

  13 Chain-40 Pitches (3/8 Inch Link)
Chain-40 Pitches (3/8 Inch Link)
HA411016 In stock
Chain-40 Pitches (3/8 Inch Link)
£11.59 £9.66

  14 Support Bracket Rear Pivot
Support Bracket Rear Pivot
HA111-3303 In stock
Support Bracket Rear Pivot
£10.97 £9.14

  15 Rod-Connecting
Rod-Connecting
HA111-0202 In stock
Rod-Connecting
£19.55 £16.29

  16 Cover-Drive
Cover-Drive
HA411013 In stock
Cover-Drive
£3.78 £3.15

  18 Spring Cable Anchor
Spring Cable Anchor
HA111-0527 In stock
Spring Cable Anchor
£7.75 £6.46

  19 Freewheel-Roller
Freewheel-Roller
HA340150 In stock
Freewheel-Roller
£14.05 £11.71

  20 Blade Brake Clutch
Blade Brake Clutch
HA485007 Out of stock
Blade Brake Clutch
£235.80 £196.50

  21 Front_Fins
Front_Fins
HA111-0594 Out of stock
Front_Fins
£27.08 £22.57

  22 Gearbox
Gearbox
HA411002 In stock
Gearbox
£103.09 £85.91

  23 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  24 Housing-Pivot Bearing. Lh
Housing-Pivot Bearing. Lh
HA410048 In stock
Housing-Pivot Bearing. Lh
£8.34 £6.95

  25 Cap-Hub
Cap-Hub
HA111-1251 Out of stock
Cap-Hub
£1.82 £1.52

  26 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  27 Knob-Hoc
Knob-Hoc
HA480134 In stock
Knob-Hoc
£2.09 £1.74

  28 Lever - Hoc
Lever - Hoc
HA480128 Out of stock
Lever - Hoc
£8.16 £6.80

  29 Lever Variable Pulley
Lever Variable Pulley
HA411014 Out of stock
Lever Variable Pulley
£10.57 £8.81

  30 Locknut
Locknut
HA340163 In stock
Locknut
£25.60 £21.33

  31 Nut
Nut
HA410076 In stock
Nut
£1.82 £1.52

  33 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  34 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  35 Nut-Unf
Nut-Unf
HAHY4486 In stock
Nut-Unf
£1.58 £1.32

  36 Spacer-Steel
Spacer-Steel
HA340157 In stock
Spacer-Steel
£2.09 £1.74

  37 Bushing-Roller. Oilite
Bushing-Roller. Oilite
HA340129 In stock
Bushing-Roller. Oilite
£9.67 £8.06

  38 Pin-Roll
Pin-Roll
HA03997 In stock
Pin-Roll
£1.62 £1.35

  39 Pin-Spring. Selloc
Pin-Spring. Selloc
HAHY03354 In stock
Pin-Spring. Selloc
£1.58 £1.32

  40 Plate-Securing
Plate-Securing
HA219037 Out of stock
Plate-Securing
£1.62 £1.35

  43 Spring Blade Brake Tension
Spring Blade Brake Tension
HA343011 Out of stock
Spring Blade Brake Tension
£9.56 £7.97

  44 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  45 Screw-Taptite
Screw-Taptite
HA09545 In stock
Screw-Taptite
£1.62 £1.35

  46 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  47 Screw-Taptite
Screw-Taptite
HA09787 Out of stock
Screw-Taptite
£1.46 £1.22

  48 Screw-HH
Screw-HH
HA09364 Out of stock
Screw-HH
£1.56 £1.30

  49 Shaft Roller Welded
Shaft Roller Welded
HA111-0589 Out of stock
Shaft Roller Welded
£66.92 £55.77

  50 Shroud-Freewheel
Shroud-Freewheel
HA340168 In stock
Shroud-Freewheel
£11.57 £9.64

  51 Spring-Counter Balance
Spring-Counter Balance
HA410050 In stock
Spring-Counter Balance
£7.50 £6.25

  52 Spring-Torsion. Hoc
Spring-Torsion. Hoc
HA480132 In stock
Spring-Torsion. Hoc
£1.16 £0.97

  53 Spring-Variator
Spring-Variator
HAHY412004 Out of stock
Spring-Variator
£5.95 £4.96

  54 Sprocket-Gearbox
Sprocket-Gearbox
HA411011 In stock
Sprocket-Gearbox
£13.43 £11.19

  55 Sprocket 18T
Sprocket 18T
HA411010 In stock
Sprocket 18T
£22.60 £18.83

  56 Throwplate
Throwplate
HA111-0218 In stock
Throwplate
£23.76 £19.80

  57 Underdeck Chute
Underdeck Chute
HA111-0131 In stock
Underdeck Chute
£82.30 £68.58

  58 Underdeck Cover
Underdeck Cover
HA111-0133 In stock
Underdeck Cover
£28.70 £23.92

  59 Pulley Variator Asm
Pulley Variator Asm
HA411001 In stock
Pulley Variator Asm
£58.52 £48.77

  60 Washer-Plain
Washer-Plain
HA09270 Out of stock
Washer-Plain
£1.62 £1.35

  62 Screw - Soc Hd Shld M12 x M10 x 30
Screw - Soc Hd Shld M12 x M10 x 30
HAZIS8L030S Out of stock
Screw - Soc Hd Shld M12 x M10 x 30
£12.11 £10.09

  63 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  64 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  65 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  66 Clutch Lever
Clutch Lever
HA411020 Out of stock
Clutch Lever
£7.78 £6.48

  67 Spring
Spring
HA411021 Out of stock
Spring
£2.20 £1.83

  68 Pulley
Pulley
HA411019 In stock
Pulley
£14.76 £12.30

  69 Pin
Pin
HA411023 Out of stock
Pin
£1.56 £1.30

  70 Belt Variator
Belt Variator
HA411025 In stock
Belt Variator
£9.73 £8.11

  71 Bracket
Bracket
HA111-0180-03 Out of stock
Bracket
£83.28 £69.40

  73 Spacer Cutterbar BBC
Spacer Cutterbar BBC
HA111-0707 Out of stock
Spacer Cutterbar BBC
£33.65 £28.04

  74 Screw
Screw
HA09349 Out of stock
Screw
£1.60 £1.33

  75 Nipple Split
Nipple Split
HA510118 In stock
Nipple Split
£17.40 £14.50

  77 Use Hy300154 Bearing 1/2 Ball Uralan
Use Hy300154 Bearing 1/2 Ball Uralan
HAHY300154 In stock
Use Hy300154 Bearing 1/2 Ball Uralan
£3.72 £3.10
