Description

Hayter - 477A

Serial No: 410380787 - 999999999

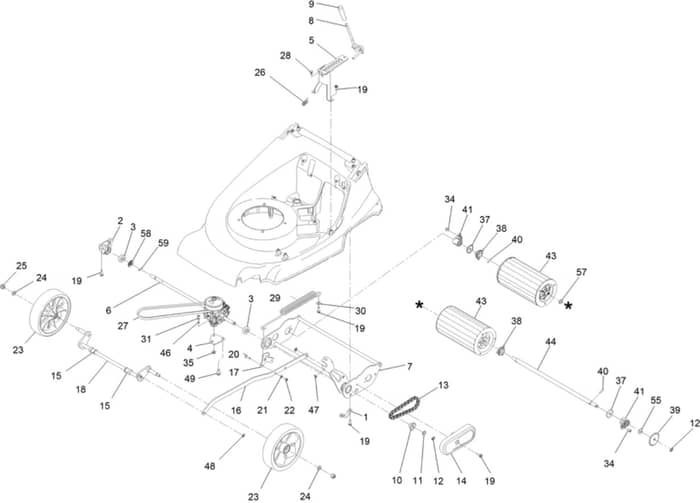

Traction - Suspension - Hoc - Parts Diagram

Ref. Img. Part No. Details
  1 Axle- Support. Rear
Axle- Support. Rear
HA111-8670 In stock
Axle- Support. Rear
£2.36 £1.97

  2 Rear Frame Bearing Mount
Rear Frame Bearing Mount
HA111-8576 In stock
Rear Frame Bearing Mount
£7.27 £6.06

  3
HA134-2889 In stock
"Bearing. Ball 12mm"
£10.73 £8.94

  4 Bracket Gearbox
Bracket Gearbox
HA134-2260 In stock
Bracket Gearbox
£3.28 £2.73

  5 Hoc Tower Assembly
Hoc Tower Assembly
HA111-8675 In stock
Hoc Tower Assembly
£13.93 £11.61

  6 Mc600 Gearbox With Vari Pulley
Mc600 Gearbox With Vari Pulley
HA134-4512 In stock
Mc600 Gearbox With Vari Pulley
£115.79 £96.49

  7 Rear Axle Frame Assembly
Rear Axle Frame Assembly
HA111-8623-03 Out of stock
Rear Axle Frame Assembly
£81.98 £68.32

  8 Lever Hoc Assy
Lever Hoc Assy
HA134-2282 Out of stock
Lever Hoc Assy
£6.12 £5.10

  9 Knob-Hoc
Knob-Hoc
HA480134 In stock
Knob-Hoc
£2.09 £1.74

  10 Sprocket
Sprocket
HA134-3805 In stock
Sprocket
£12.10 £10.08

  11 Washer-Thrust
Washer-Thrust
HA111-8216 In stock
Washer-Thrust
£1.10 £0.92

  12 Circlip-External. Hd
Circlip-External. Hd
HA134-0254 In stock
Circlip-External. Hd
£0.58 £0.48

  13 Chain 42 Pitches 3/8
Chain 42 Pitches 3/8
HA134-2655 In stock
Chain 42 Pitches 3/8" Inc Link
£11.80 £9.83

  14 Chain Guard
Chain Guard
HA134-3771 In stock
Chain Guard
£1.84 £1.53

  15 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  16 Connecting Rod
Connecting Rod
HA111-8729 In stock
Connecting Rod
£10.38 £8.65

  17 Spring Load Lever
Spring Load Lever
HA134-2254 In stock
Spring Load Lever
Was £1.86 £1.55 Special Price £1.14 £0.95

  18 Front Axle Assembly
Front Axle Assembly
HA134-4820 Out of stock
Front Axle Assembly
£40.38 £33.65

  19 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  20 Screw-HH
Screw-HH
HA09363 In stock
Screw-HH
£1.54 £1.28

  21 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  22 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  23 Wheel 8
Wheel 8
HA111-8858 In stock
Wheel 8". Pvc Tyre
£19.61 £16.34

  24 Washer-Plain
Washer-Plain
HA09479 Out of stock
Washer-Plain
£1.62 £1.35

  25 Nut
Nut
HA09447 In stock
Nut
£1.63 £1.36

  26 Spring-Torsion. Hoc
Spring-Torsion. Hoc
HA480132 Out of stock
Spring-Torsion. Hoc
£1.16 £0.97

  27 V Belt
V Belt
HA111-8709 In stock
V Belt
£16.79 £13.99

  28 Rivet-Push. Plastic
Rivet-Push. Plastic
HA134-0262 In stock
Rivet-Push. Plastic
£1.16 £0.97

  29 Spring Counter Balance
Spring Counter Balance
HA134-0388 Out of stock
Spring Counter Balance
£16.87 £14.06

  30 Washer
Washer
HA09263 Out of stock
Washer
£1.56 £1.30

  31 Shoulder Bolt
Shoulder Bolt
HA111-9762 In stock
Shoulder Bolt
£10.07 £8.39

  34 Screw-Taptite
Screw-Taptite
HA134-0050 In stock
Screw-Taptite
£0.55 £0.46

  35 Nut-Hf
Nut-Hf
HA137-3005 In stock
Nut-Hf
£0.48 £0.40

  37 Washer-Thrust
Washer-Thrust
HA111-8602 In stock
Washer-Thrust
£1.07 £0.89

  38 Cam-Drive
Cam-Drive
HA134-2924 In stock
Cam-Drive
£7.26 £6.05

  39 Sprocket
Sprocket
HA134-3806 In stock
Sprocket
£7.67 £6.39

  40 Key-Drive
Key-Drive
HA134-2034 In stock
Key-Drive
£2.60 £2.17

  41 Bush. Rear Roller
Bush. Rear Roller
HA134-2635 In stock
Bush. Rear Roller
£11.30 £9.42

  43 Roller Half Assembly
Roller Half Assembly
HA111-8720 In stock
Roller Half Assembly
£20.15 £16.79

  44 Roller Shaft
Roller Shaft
HA111-8722 In stock
Roller Shaft
£39.90 £33.25

  46 O-Ring
O-Ring
HA134-2791 In stock
O-Ring
£0.23 £0.19

  47 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  48 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  49 Screw-Hwh
Screw-Hwh
HA134-2299 In stock
Screw-Hwh
Was £0.55 £0.46 Special Price £0.18 £0.15

  55 Washer-Plastic
Washer-Plastic
HA110-4068 In stock
Washer-Plastic
£2.52 £2.10

  57 Washer-Flat
Washer-Flat
HA108-0015 In stock
Washer-Flat
£0.48 £0.40

  58 Retaining Collar. Drive Shaft
Retaining Collar. Drive Shaft
HA134-4513 In stock
Retaining Collar. Drive Shaft
£0.89 £0.74

  59 Pin. Roll. 3mm x 16mm
Pin. Roll. 3mm x 16mm
HA134-4514 Out of stock
Pin. Roll. 3mm x 16mm
£0.29 £0.24


Description

Hayter - 477A

Serial No: 410380787 - 999999999

Traction - Suspension - Hoc - Parts Diagram
