Hayter Harrier 48 Autodrive - 480S (480S001001 - 480S099999) - Parts Assembly

Description

Hayter - 480S

Serial No: 480S001001 - 480S099999

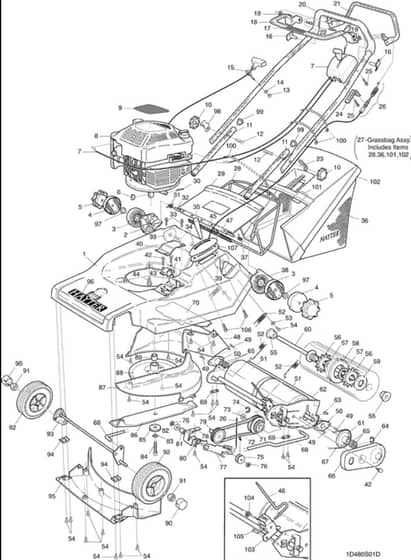

Parts Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HA480084W Out of stock	Clamp - Boss Inner	£10.54 £8.78
4	HA480085W Out of stock	Clamp - Boss Outer	£8.36 £6.97
5	HA480054 In stock	Handwheel - Assy	£7.37 £6.14
6	HA1662 In stock	Key-Woodruff	£1.46 £1.22
10	HA480088 In stock	Knob-Handlebar	£5.35 £4.46
12	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
13	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
14	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
15	HA305093 Out of stock	Guide Rope	£1.62 £1.35
16	HA480079 Out of stock	Pin - Pivot	£0.85 £0.71
18	HA111-9662 In stock	Lever-Engine	£17.81 £14.84
19	HA09688 In stock	Washer	£0.68 £0.57
21	HA111-1921-03 Out of stock	Lever-Clutch	£42.52 £35.43
22	HA09687 In stock	Screw	£1.62 £1.35
23	HA480123 Out of stock	Cable Guide Spring	£2.54 £2.12
26	HA480094 In stock	Cable - Clutch	£21.10 £17.58
29	HA480140 In stock	Deflector - Rear	£22.16 £18.47
30	HA03997 In stock	Pin-Roll	£1.62 £1.35
31	HA480131 Out of stock	Spring - Deflector Rh	£4.48 £3.73
32	HA480062 Out of stock	Rod - Deflector	£42.53 £35.44
34	HA09549 Out of stock	Bolt	£1.63 £1.36
35	HA480134 In stock	Knob-Hoc	£2.09 £1.74
37	HA480130 Out of stock	Spring - Deflector Lh	£5.11 £4.26
38	HA480082V Out of stock	Plate - Location Lh	£7.16 £5.97
40	HA480014 Out of stock	Cover - Apto	£3.65 £3.04
41	HA480050 Out of stock	Bearing - Apto	£11.60 £9.67
42	HA09575 In stock	Screw-Taptite	£1.62 £1.35
43	HA340154 Out of stock	Bushing	£5.66 £4.72
44	HA09349 Out of stock	Screw	£1.60 £1.33
46	HA480128 Out of stock	Lever - Hoc	£8.16 £6.80
49	HA09545 In stock	Screw-Taptite	£1.62 £1.35
50	HA480037 In stock	Bearing - Roller Housing	£14.11 £11.76
52	HA480133 Out of stock	Spring Tension - Rear Axle	£3.71 £3.09
53	HA09262 Out of stock	Washer	£1.63 £1.36
54	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.63 £1.36
55	HA340129 In stock	Bushing-Roller. Oilite	£9.67 £8.06
56	HA340150 In stock	Freewheel-Roller	£14.05 £11.71
57	HA340157 In stock	Spacer Nylon	£2.09 £1.74
58	HA340168 In stock	Shroud-Freewheel	£11.57 £9.64
59	HA340163 In stock	Locknut	£25.60 £21.33
61	HA480039 Out of stock	Sprocket - 22 Teeth	£45.44 £37.87
62	HA480159W Out of stock	Frame - Rear Roller W/A	£299.62 £249.68
64	HA1428 Out of stock	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.63 £1.36
65	HA480097 In stock	Washer	£1.64 £1.37
66	HA480043 In stock	Cover - Transmission	£24.73 £20.61
67	HA486037 In stock	Chain	£12.52 £10.43
69	HA219037 Out of stock	Plate-Securing	£1.62 £1.35
70	HA480017W Out of stock	Filler Throwplate	£22.00 £18.33
71	HA480171 In stock	Pulley - Sprocket Fixedspeed	£76.09 £63.41
72	HA480063 In stock	Belt - V Apto	£19.43 £16.19
73	HA02575 In stock	Washer	£1.63 £1.36
74	HA03096 In stock	Circlip	£1.63 £1.36
75	HA219156 Out of stock	Pulley - Jockey	£1.68 £1.40
76	HA0201086 In stock	Washer-Starlock	£1.62 £1.35
79	HA480038 Out of stock	Pulley - Drive Apto	£90.56 £75.47
80	HA480066 Out of stock	Spring - Torsion Idler	£9.29 £7.74
81	HAHY4452 In stock	Bush	£3.41 £2.84
82	HA09280 Out of stock	Washer-Plain	£1.56 £1.30
83	HA09273 Out of stock	Washer-Spring	£1.62 £1.35
84	HA09121 Out of stock	Bolt	£1.63 £1.36
85	HAHY216008 Out of stock	Piece Cutterbar Distance	£13.22 £11.02
86	HA4013 In stock	Cutterbar 19" For Harrier	£30.25 £25.21
89	HA480072 Out of stock	Spacer	£6.55 £5.46
90	HA219143 Out of stock	Hub Cap	£7.26 £6.05
91	HA4486 Out of stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.18 £0.98
92	HA111-1250 In stock	Wheel-Ribbed	£30.24 £25.20
93	HA219031 Out of stock	Axle - Front W/A	£53.35 £44.46
94	HA219036 Out of stock	Moulding - Front Axle Bearing	£4.94 £4.12
95	HA480013 In stock	Fin - Front Insert	£16.98 £14.15
96	HA410087 In stock	Decal	£4.79 £3.99
97	HA480086 Out of stock	Nut - M8 Shouldered	£8.11 £6.76
99	HA300160 Out of stock	Plug	£1.62 £1.35
100	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
102	HA486021 Out of stock	Grassbag - Fabric	£130.98 £109.15
103	HA480157W Out of stock	Bracket Hoc	£38.95 £32.46
104	HA480132 Out of stock	Spring-Torsion. Hoc	£1.16 £0.97
105	HA09336 Out of stock	Rivet	£1.56 £1.30
106	HA09634 In stock	Screw	£1.54 £1.28
