Hayter Harrier 48 AD VS - 491G (491G290000001 - 491G290999999) - Upper Mainframe

Hayter Harrier 48 AD VS - 491G (491G290000001 - 491G290999999) - Upper Mainframe
Hayter Harrier 48 AD VS - 491G (491G290000001 - 491G290999999) - Upper Mainframe

Description

Hayter Harrier 48 Autodrive Variable Speed Mower - 491G

Serial No: 491G290000001 - 491G290999999

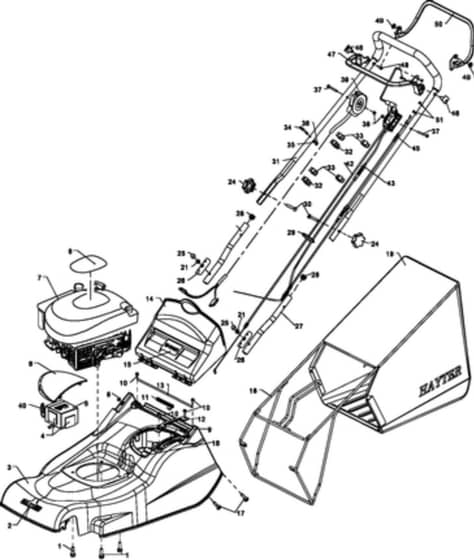

Upper Mainframe - Parts Diagram

Ref. Img. Part No. Details
  1 Screw
Screw
HA09349 Out of stock
Screw
£1.60 £1.33

  2 Decal
Decal
HA410087 In stock
Decal
£4.79 £3.99

  3 Mainframe
Mainframe
HA111-1650-08 Out of stock
Mainframe
£445.62 £371.35

  4 Foam Pad Top
Foam Pad Top
HAHY412012 Out of stock
Foam Pad Top
£0.62 £0.52

  5 Battery 12V
Battery 12V
HA111-1926 In stock
Battery 12V
£53.23 £44.36

  6 Battery Cover
Battery Cover
HA111-0595 Out of stock
Battery Cover
£10.93 £9.11

  9 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  10 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  11 Spring-Deflector
Spring-Deflector
HA410030 In stock
Spring-Deflector
£6.24 £5.20

  12 Ratchet Plate Hoc
Ratchet Plate Hoc
HA111-0201 Out of stock
Ratchet Plate Hoc
£6.61 £5.51

  13 Rod-Deflector
Rod-Deflector
HA560017 Out of stock
Rod-Deflector
£5.12 £4.27

  14 Deflector-Rear
Deflector-Rear
HA111-1714 In stock
Deflector-Rear
£29.89 £24.91

  15 Decal-Safety
Decal-Safety
HA111-0083 Out of stock
Decal-Safety
£2.30 £1.92

  16 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  17 Bolt-Coach
Bolt-Coach
HA09379 In stock
Bolt-Coach
£1.62 £1.35

  18 Frame-Grassbag
Frame-Grassbag
HA111-1497-03 Out of stock
Frame-Grassbag
£55.75 £46.46

  19 Grassbag
Grassbag
HA111-5339 Out of stock
Grassbag
£64.97 £54.14

  21 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  24 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  25 Cap-Nut
Cap-Nut
HAHY234051 In stock
Cap-Nut
£1.56 £1.30

  26 Plate-Clamp. Handlebar
Plate-Clamp. Handlebar
HA340028 In stock
Plate-Clamp. Handlebar
£6.26 £5.22

  27 Handlebar Lower
Handlebar Lower
HA111-1913-03 Out of stock
Handlebar Lower
£10.27 £8.56

  28 Plug
Plug
HA300160 Out of stock
Plug
£1.62 £1.35

  29 Tie-Cable
Tie-Cable
HAHY3966 Out of stock
Tie-Cable
£1.56 £1.30

  30 Bolt
Bolt
HA09785 Out of stock
Bolt
£3.83 £3.19

  31 Handlebar-Upper
Handlebar-Upper
HA111-0519 In stock
Handlebar-Upper
£102.91 £85.76

  32 Guide-Cable
Guide-Cable
HAHY412008 Out of stock
Guide-Cable
£1.52 £1.27

  34 Guide Rope
Guide Rope
HA305093 In stock
Guide Rope
£1.62 £1.35

  35 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  36 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  37 Setscrew
Setscrew
HA09780 Out of stock
Setscrew
£1.87 £1.56

  38 Nut-Nyloc
Nut-Nyloc
HA09438 In stock
Nut-Nyloc
£1.62 £1.35

  39 Switch And Loom Asm H48/56 (Rs)
Switch And Loom Asm H48/56 (Rs)
HA111-3155 Out of stock
Switch And Loom Asm H48/56 (Rs)
£193.16 £160.97

  40 Lead. Battery
Lead. Battery
HAHY412014 Out of stock
Lead. Battery
£17.76 £14.80

  42 Cable Engine Brake
Cable Engine Brake
HA111-0998 In stock
Cable Engine Brake
£18.19 £15.16

  43 Cable Variator
Cable Variator
HA111-1193 In stock
Cable Variator
£34.12 £28.43

  45 Clutch Cable
Clutch Cable
HA111-1548 In stock
Clutch Cable
£29.71 £24.76

  46 Pin-Pivot
Pin-Pivot
HA340182 In stock
Pin-Pivot
£1.62 £1.35

  47 Lever-Engine
Lever-Engine
HA111-9662 In stock
Lever-Engine
£17.81 £14.84

  48 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  49 Washer
Washer
HA09688 In stock
Washer
£0.68 £0.57

  50 Lever-Clutch
Lever-Clutch
HA111-1921-03 In stock
Lever-Clutch
£42.52 £35.43

  62 Power Supply Asm
Power Supply Asm
HA111-8160 Out of stock
Power Supply Asm
£26.50 £22.08

  51 Fastener Drive
Fastener Drive
HA300144 Out of stock
Fastener Drive
£1.62 £1.35


Description

Hayter Harrier 48 Autodrive Variable Speed Mower - 491G

Serial No: 491G290000001 - 491G290999999

Upper Mainframe - Parts Diagram
